Description
About this model

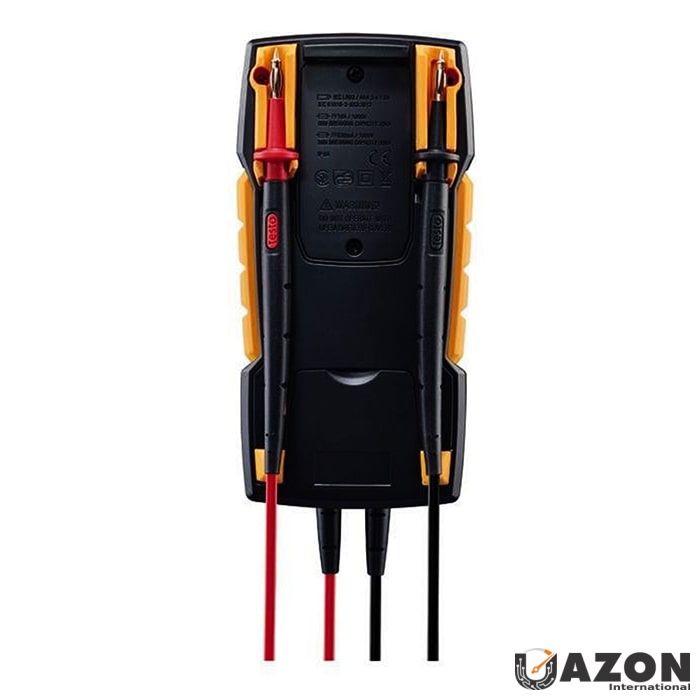

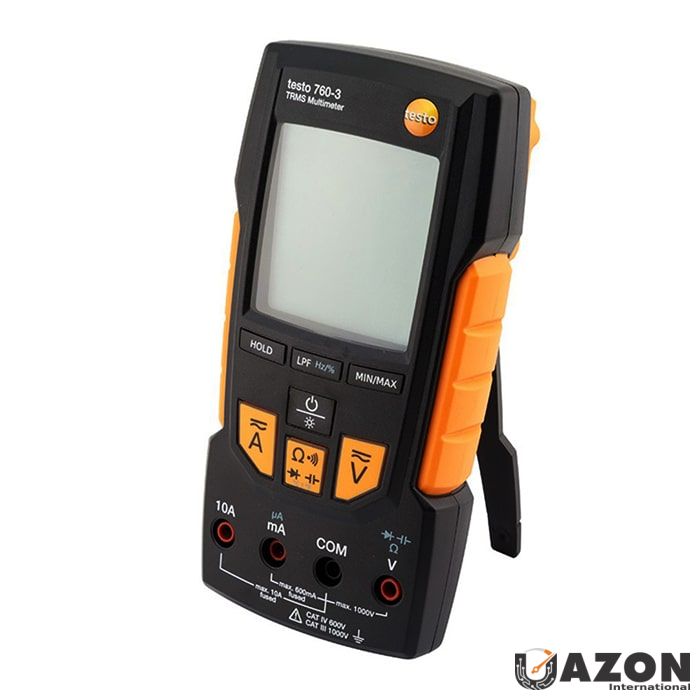

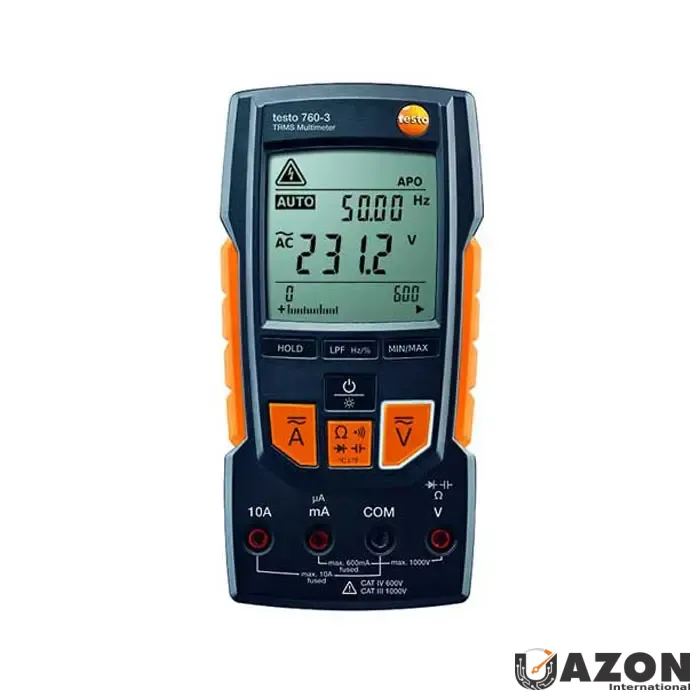

Testo 760-3 Digital Multimeter
Order-Nr. 0590 7603
The Testo 760-3 digital multimeter represents the pinnacle of the Testo 760 series, engineered specifically for industrial, HVAC, and electrical professionals who demand uncompromising precision and safety. In high-stakes environments where measurement errors can lead to costly downtime or safety hazards, this instrument provides a reliable solution. Featuring automatic parameter detection, True RMS accuracy, and an impressive CAT IV 600 V / CAT III 1000 V safety rating, the Testo 760-3 ensures dependable results even in the most demanding diagnostic applications.
Unlike traditional multimeters that rely on a rotary dial, the Testo 760-3 utilizes modern function keys, a design choice that significantly minimizes operator error and streamlines the measurement process. This allows for comfortable one-handed operation, freeing the user to manipulate probes with the other hand. Whether handling simple daily maintenance tasks or complex industrial diagnostics, this digital multimeter offers maximum reliability, precision, and durability in a rugged form factor.
Testo 760-3 Digital Multimeter Key Features
Before diving into the technical specifications, it is essential to understand the practical benefits that these features bring to the field. The design philosophy of the Testo 760-3 centers on reducing human error and increasing workflow efficiency. By automating complex detection tasks, the instrument allows technicians to focus on analysis rather than configuration.
- Easy, reliable work thanks to automatic measurement parameter detection that eliminates manual range selection.
- Comfortable, one-handed operation without any dial, reducing the risk of accidental setting changes.
- Voltage range up to 1,000 V, making it suitable for high-energy electrical systems.
- Additional functions, such as true root mean square (TRMS) measurement, low-pass filter, and temperature adapter for versatile diagnostics.
Contents of the Testo 760-3 Digital Multimeter Box
When you purchase the Testo 760-3, you receive a complete package ready for immediate use. The box includes the testo 7603 digital multimeter, a set of batteries to power the device upon arrival, one set of measuring cables (0590 0010), and a comprehensive instruction manual for reference.
Specification
| Temperature – TC Type K (NiCr‑Ni) | -20 - +500 °C |
| DC / AC Voltage | 1000 V |
| DC / AC Current | 0.1 μA - 10 A |
| Resistance | 0.01 - 60.00 MΩ |
| Frequency | 0.001 Hz - 60.00 MHz |
| Operating Temperature | -10 - +50 °C |
| Protection Class | IP64 |
| Standards | EN 61326‑1; EN 61010‑2‑033; EN 61140 |
| Battery Type | 3 AAA micro batteries |
| Dimensions | 167 x 85 x 45 mm |
| Weight | 340 g |
