Testo 760-2 Digital Multimeter

Testo 760-2 Digital Multimeter

Order-Nr. 0590 7602

The Testo 760-2 Digital Multimeter represents the mid-range model within the respected Testo 760 series. Specifically engineered for industrial electricians, HVAC engineers, and service technicians, this device bridges the gap between complex data analysis and rugged field utility. By combining True RMS capability, automatic parameter detection, and extended measuring functions, the Testo 760-2 delivers safe and reliable operation for both routine maintenance and demanding diagnostic tasks.

Unlike conventional multimeters that rely on a rotary switch, the 760-2 features modern function keys. This design choice significantly minimizes user errors and facilitates one-handed operation, a critical advantage in tight industrial spaces. Furthermore, the inclusion of a low-pass filter, duty cycle measurement, and temperature capability via a Type K thermocouple ensures this instrument covers a comprehensive range of industrial applications.

Technical Features and Field Applications of the Testo 760-2

The Testo 760-2 is designed to streamline complex measurements through intelligent automation and high-precision sensors. Its architecture prioritizes user safety and measurement accuracy, eliminating the guesswork often associated with manual ranging. Below is a detailed look at the core technical specifications and how they translate to real-world benefits for professionals.

• True RMS Measurement (TRMS): Delivers accurate readings even with non-sinusoidal waveforms, which is essential for modern variable frequency drives and electronic ballasts found in industrial HVAC systems.
• Auto-Test Setup: Automatically detects the correct measurement function through socket assignment. This feature prevents dangerous mis-settings by ensuring the multimeter is logically configured before the measurement begins.
• Voltage Measurement up to 600 V (AC/DC): Provides reliable voltage readings for standard industrial and commercial electrical environments, allowing for safe diagnostics on three-phase power systems.
• Current Measurement up to 10 A: Covers the majority of service and troubleshooting tasks, from measuring load currents on motors to checking fuse continuity without needing external clamps.
• Resistance and Capacitance Ranges: With resistance measurement up to 60 MΩ and capacitance up to 30 mF, technicians can perform precise component checks and insulation testing on capacitors and motor windings.
• Frequency Measurement up to 30 MHz: Suitable for advanced electronic testing, allowing users to verify signal frequencies in control circuits and communication lines.
• Low-Pass Filter: Enables stable measurement on frequency inverter drives (VFDs). This filter isolates the fundamental frequency, providing readable voltage and frequency values on complex drives.
• Duty Cycle Analysis: Essential for pulse and signal diagnostics, this function allows technicians to analyze the width of pulses in control signals, commonly used in HVAC servo systems.
• Temperature Measurement with Type K Adapter: Offering a range of –20 to +500 °C, this capability adds significant versatility for HVAC maintenance, allowing for simultaneous electrical and thermal analysis.
• CAT IV 600 V / CAT III 1000 V Safety Rating: These protection categories ensure maximum safety for technicians working at the source of the installation, not just the branch circuits.
• Rugged Design with IP64 Protection: The dust-proof and splash-proof housing makes the unit durable and perfectly suitable for harsh field use in construction sites or industrial plants.

What Is Included in the Testo 760-2 Digital Multimeter Box

When purchasing the Testo 760-2, users receive a complete kit ready for immediate deployment. The packaging is designed to keep all components organized, ensuring that technicians have the necessary accessories on hand for a variety of measurement scenarios right out of the box.

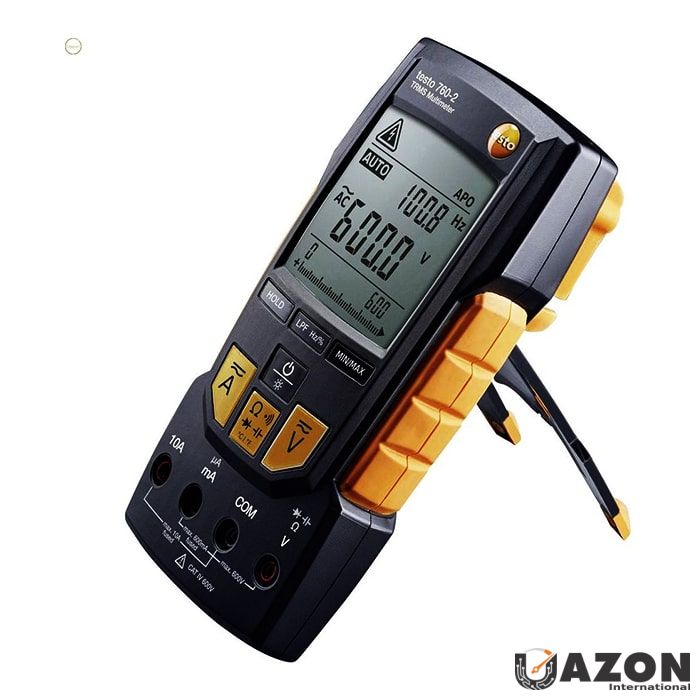

• Testo 760-2 Digital Multimeter: The main instrument featuring the high-contrast display and function keys.

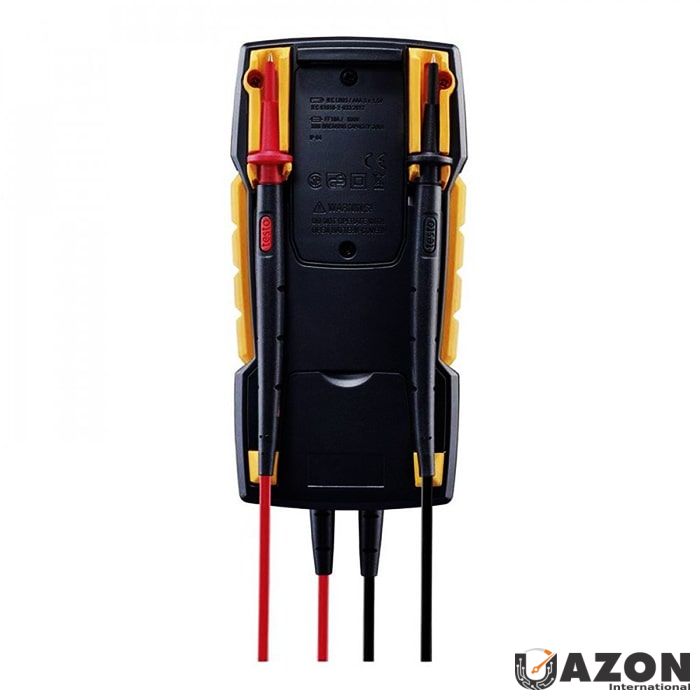

• Standard Measuring Cables: Durable test leads for general-purpose voltage and resistance measurements.
• 3 × AAA Batteries (Pre-installed): Provides immediate power so the device is operational upon arrival.
• Type K Thermocouple Adapter: Allows for direct temperature measurement connections.
• Instruction Manual: Comprehensive guide for setup, safety warnings, and operation.
