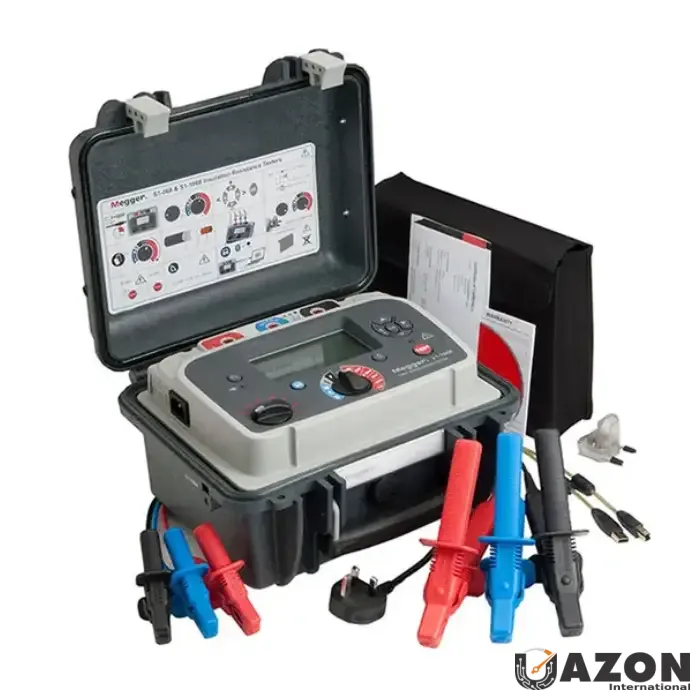

Technical Features and Field Applications of the Megger S1-1068
High-voltage insulation resistance testing is a cornerstone of predictive maintenance for electrical utilities, transmission and distribution networks, and heavy industrial installations. When critical assets such as transformers, cables, and rotating machinery operate in harsh environments, you need a tester that delivers precise measurements, robust safety ratings, and repeatable diagnostic data. The Megger S1-1068 10 kV Insulation Resistance Tester is engineered specifically for these demanding scenarios, combining a high through-voltage with an exceptionally wide resistance range to validate the integrity of high-insulation systems. Whether you are performing spot tests, timed insulation resistance (IR) checks, or advanced diagnostic evaluations, this instrument provides trusted results backed by rugged field reliability.
For procurement teams and field engineers alike, the Megger S1-1068 Price reflects a balance of premium capability and long-term value. When you Buy Megger S1-1068 units, you invest in a platform that supports multiple test modes, offers strong noise rejection, and maintains safety compliance even at high elevations. Below, we examine the technical features and field applications that define this instrument, with a focus on real-world benefits rather than raw specifications alone.
High Through-Voltage and Extended Resistance Range
A primary advantage of the Megger S1-1068 is its ability to apply a 10 kV test voltage, which is essential for evaluating equipment with high insulation resistance levels. This high through-voltage enables the instrument to measure resistance values up to 35 TΩ, providing the sensitivity required for testing modern high-insulation systems. In practice, this capability supports reliable assessments of large transformers, long cable runs, and motor windings that exhibit very high leakage resistance, where lower-voltage testers might not reveal subtle degradation.
The extended resistance range also allows for more granular trending of insulation health over time. By capturing precise measurements at 10 kV, maintenance teams can establish baseline values and detect gradual changes that might signal moisture ingress, contamination, or thermal aging. For utilities and industrial sites focused on asset longevity, this level of precision is critical for scheduling targeted maintenance and avoiding unplanned outages.
Flexible Test Voltage Settings and Lockable Presets
Different assets and standards require different test voltages. The Megger S1-1068 offers multiple preset voltages and lockable settings, enabling technicians to adapt quickly to varied testing scenarios without compromising consistency. This flexibility is particularly valuable in environments where compliance with specific test protocols is mandatory, or where assets have varying voltage class requirements.
Lockable test voltages help ensure repeatable results across multiple tests and operators. By reducing the risk of accidental voltage changes, the instrument supports data integrity and simplifies audit trails. For teams managing a diverse portfolio of equipment, this feature streamlines workflows and reduces the likelihood of human error during high-voltage testing.
Safety Ratings and High-Elevation Performance
Safety is non-negotiable when performing high-voltage insulation tests. The Megger S1-1068 carries a CAT IV 600 V safety rating, making it suitable for use at the source of installation, including low-voltage distribution boards and incoming supplies. This rating ensures that the instrument can be safely connected to circuits that may experience transient overvoltages, which is common in industrial and utility environments.
Additionally, the instrument is rated for use up to 3000 meters above sea level, allowing reliable operation in mountainous regions and high-altitude facilities. This capability is essential for utilities serving geographically diverse territories, where equipment performance and safety must be maintained regardless of elevation.
Battery Technology and Runtime in Field Conditions
Field testing often demands extended operation away from power sources. The Megger S1-1068 employs Li-ion battery technology that complies with IEC 62133, delivering typical runtime of approximately 4.5 hours of continuous testing at 10 kV with a 100 MΩ load. This performance is sufficient for most diagnostic sessions, including timed IR, polarization index (PI), and stepped voltage tests on medium- to large-scale assets.
The use of Li-ion cells also supports consistent voltage output during tests, which helps maintain measurement stability. For teams managing multiple instruments, the battery system simplifies logistics by offering predictable runtime and reducing the need for frequent swaps during a shift.
