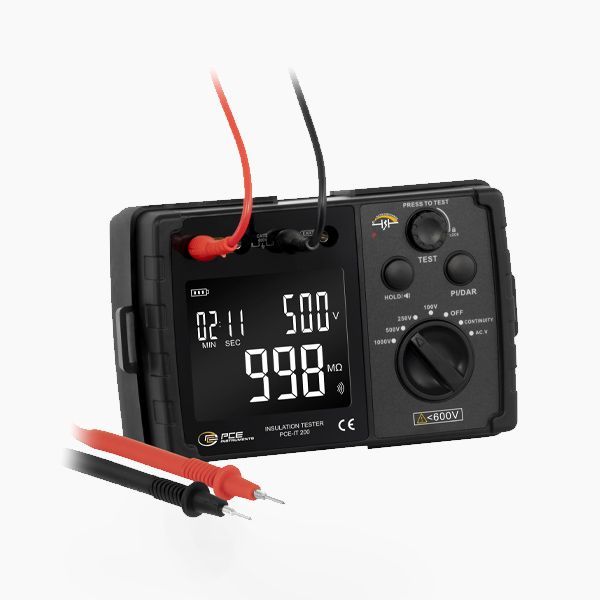

PCE-IT 200 Insulation meter
+2

PCE-IT 200 Insulation meter

Store / Electrical
700.00 AED
In stock
Product Details

PCE-IT 200 Insulation meter

The PCE-IT 200 Insulation Meter is a specialized device designed to measure the insulation resistance of electrical wiring and equipment. This tool is critical for ensuring that electrical installations are safe, efficient, and meet regulatory standards. It is extensively used in electrical testing, maintenance, and in the commissioning of new equipment.

PCE-IT 200 Key Features

  • Measurement functions: HOLD, PI (polarization index), DAR (absorption ratio)
  • Automatic detection of AC and DC
  • Automatic discharge
  • High voltage indicator
  • Alarm when limit values are exceeded
  • Overload: AC 720V / 10 seconds
  • Powered by 6 x 1.5V AA batteries
  • External power supply 9V DC possible

PCE- IT 200 Specifications

Direct voltage DC
Measuring range 30V...600V
resolution 1V
accuracy ±2% of mv. ±3 digits
Alternating voltage AC
Measuring range 30V...600V
resolution 1V
accuracy ±2% of mv. ±3 digits
Overload AC 720V / 10 seconds
Insulation resistance
Test voltage DC 100V
Measuring range 0GΩ ... 1.5GΩ
resolution 0.01GΩ
accuracy ±5% of mv. ±3 digits (over 100 kΩ)
Insulation resistance
Test voltage DC 250V
Measuring range 0GΩ ... 5.5GΩ
resolution 0.01GΩ
accuracy ±5% of mv. ±3 digits (over 100 kΩ)
Insulation resistance
Test voltage DC 500V
Measuring range 0GΩ ... 5.5GΩ
resolution 0.01GΩ
accuracy ±5% of mv. ±3 digits (over 100 kΩ)
Insulation resistance
Test voltage DC 1000 B
Measuring range 0GΩ ... 5.5GΩ
resolution 0.01GΩ
accuracy ±5% of mv. ±3 digits (over 100 kΩ)
Resistance
Measuring range 0Ω ... 999Ω
resolution 0.1Ω
accuracy ±(2% of mv. +3 digits)
General technical data
Measurement functions HOLD, PI, DAR
Display type LC color display
Measuring rate 2Hz
Norm(s) IEC 6010-1
Operating time 12 h
Security standard CAT III 600V, CAT I 2500V
alarm visually, acoustically
Menu language English
Protection class (device) IP20
Power supply DC9V
Weight 689g
Dimensions (L x W x H) 110x176x77mm
Operating conditions 0 ... 40 °C, 0 ... 85% RH
Storage conditions -20 ... 60 °C, 0 ... 90% RH
Battery/battery 6x 1.5 V AA batteries, alkaline manganese
capacity 3000mAh
