PCE-325 Class II Sound Level Meter

Store / Sound & Light & Vibration
396.00 AED
In stock
Product Details

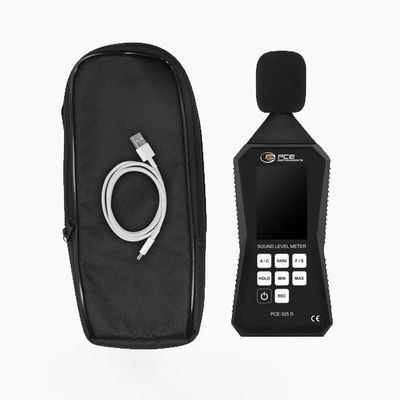

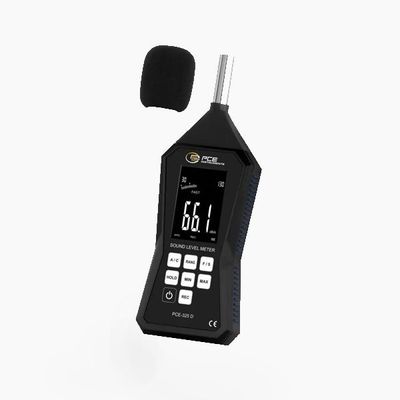

PCE-325 Class II Sound Level Meter

The PCE-325 Class II Sound Level Meter is a device used to measure sound levels in various environments, commonly in noise pollution studies, workplace monitoring, and general acoustic measurements. It's classified as a Class II instrument according to international standards, which means it provides a moderate level of precision suitable for many professional but non-critical applications.

This meter typically features capabilities such as the ability to measure sound levels in decibels (dB), A and C frequency weighting to mimic human hearing sensitivity at different frequencies, and time weighting (fast and slow) to capture varying sound levels. It often includes a digital display, data logging features, and sometimes connectivity options like USB or Bluetooth for data transfer.

PCE-325 Key Features

  • Measuring range from 30 ... 130 dB
  • Auto and manual range mode for selection
  • Measurement functions: HOLD, MIN, MAX
  • Time weighting F and S
  • Frequency weighting A and C
  • Automatic switch-off
  • LC display 2.8"

PCE-325 Specifications

Sound level
Measurement range 30 dB ... 90 dB
Resolution 0.1 dB
Accuracy ±1.5 dB (at reference conditions of 94 dB and 1 kHz)
Sound level
Measurement range 50 dB ... 110 dB
Resolution 0.1 dB
Accuracy ±1.5 dB (at reference conditions of 94 dB and 1 kHz)
Sound level
Measuring range 70 dB ... 130 dB
Resolution 0.1 dB
Accuracy ±1.5 dB (at reference conditions of 94 dB and 1 kHz)
General technical data
Measurement functions MIN, MAX, HOLD
Time evaluation fast (125 ms), slow (1 sec.)
Frequency 31.5 ... 8000 Hz
Frequency rating A, C
Display type LCD
Display refresh rate 500 mS
Microphone type Electret condenser
Interface Micro-USB
Standard(s) IEC 61672-1 (Class II)
Automatic switch-off 3 min
Automatic switch-off can be deactivated yes
Menu language English
Protection class (device) IP52
Power supply 5V DC
Weight 307 g
Dimensions (L x W x H) 248 x 90 x 35 mm
Operating conditions -10 ... 50 °C , 0 ... 80 % r.H
Storage conditions -20 ... 50 °C , 0 ... 80 % r.H
Capacity 2500 mAh
