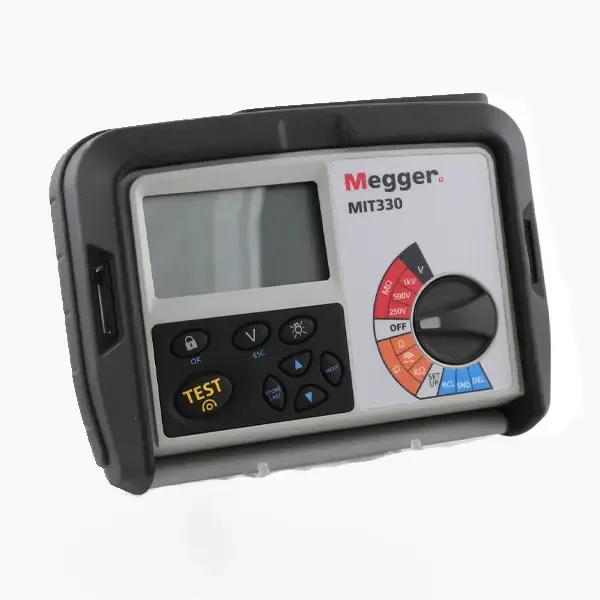

Megger MIT330 Insulation and Continuity Tester
0.00 AED
In stock
Product Details
Brand:
Megger
Insulation Range:
Up to 999 MΩ
Test Voltage Range:
250V, 500V, 1000V
Dimensions:
203 x 148 x 78 mm (8 x 5.7 x 3.2 inches)
Weight:
980 g
Megger MIT330 Insulation and Continuity Test Instruments
The Megger MIT330 is an insulation and continuity test instrument designed for reliable and accurate testing of electrical insulation and continuity in various applications.
All instruments in the MIT300 range measure insulation resistance up to 999 MΩ, offer 200 mA continuity testing, feature a fast-responding continuity buzzer, and include facilities for nulling test lead resistance. The entry-level MIT300 provides insulation test voltages of 250 V and 500 V, while the other models in the range support testing at 250 V, 500 V, and 1000 V.
Megger MIT330 Key Features
- Extremely easy to use
- Tough rubber armoured case
- Self contained protective cover
- Live circuit warning
- Weatherproof to IP54
- Intelligent safety system for protection
Megger MIT330 Specifications
| FEATURE | DETAILS |
|---|---|
| Product Name | Megger MIT330 Insulation and Continuity Tester |
| Insulation Test Voltages | 250V, 500V, 1000V |
| Insulation Resistance Range | Up to 999 MΩ |
| Continuity Test Range | 0.01 Ω to 100 Ω |
| Test Current | >200 mA (for continuity testing) |
| Accuracy (at 20° C) | ±3% ± 2 digits for insulation resistance |
| Resistance Range | Can be used for diode testing |
| Measuring Range | 10 Ω – 1 MΩ |
| Open Circuit Voltage | 5 V |
| Short Circuit Current | 1.5 mA |
| Accuracy (at 20° C) | ±5% ±2 digits up to 100 kΩ |
| Voltage Range | 0 – 600 V AC (50/60 Hz) or DC |
| Voltage Accuracy (at 20 °C) | ±1%, ±2 digits (MIT310, 320, 330 DC or AC 50/60 Hz) |
| Temperature Coefficient | <0.1% per °C on all ranges |
| Default Voltmeter | Operates as a voltmeter if >25 V AC or DC is applied |
| Test Inhibit | Testing is inhibited if more than 50 volts is detected |
| Auto Power Down | Operates after 10 minutes if left in standby mode |
| Operating Temperature Range | -10 °C to +60 °C |
| Operating Humidity | 93% R.H. at +40 °C max |
| Storage Temperature Range | -25 °C to +70 °C |
| Test Result Storage | 1000 results |
| Job Number Locations | 255 locations |
| Distribution Board Locations | 99 locations |
| Circuits | 99 locations |
| Phases | P1, P2, P3 |
| Last Recorded Result | May be recalled to the display |
| Data Download | All data can be downloaded to a PC using Download Manager (available at megger.com) and uploaded into Megger Certsuite (Certsuite.app) |
| Communications | USB interface |
| Environmental Protection | IP54 |
| Fuses | Terminals 500 mA (F) 600 V, 32 x 6 mm Ceramic HBC 10 kA minimum. Display shows if fuse is ruptured |
| Safety | Meets the requirements of IEC61010-1 Cat III 600 V phase to earth |
| Automatic Discharge | After an insulation test, the item under test will be discharged automatically. Any voltage present will be indicated on the display so that the discharge can be monitored |
| Power Supply | 8 x 1.5 V cells IEC LR6 type (AA alkaline). Rechargeable NiCd or NiMH cells may be used |
| Battery Condition | Constantly shown on the display as a four-section bargraph |
| Battery Life | 5000 consecutive tests (5 seconds per test) on any test using 2Ah batteries |
| Weight | 980 g |
| Dimensions | 203 x 148 x 78 mm (8 x 5.7 x 3.2 inches) |
