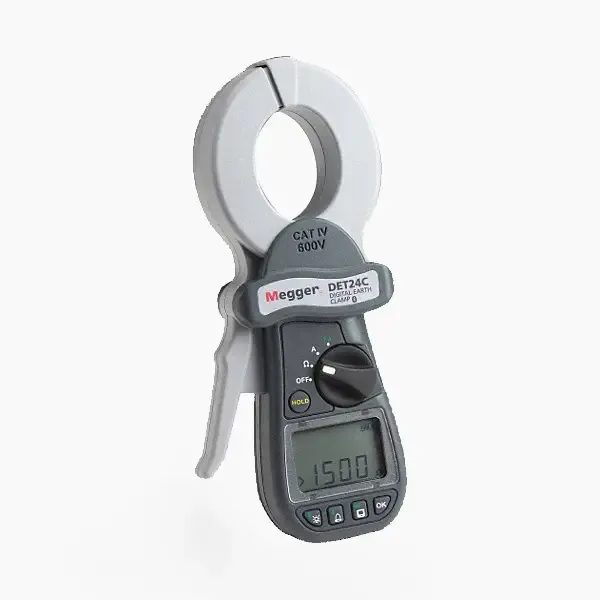

The Megger DET24C Ground Resistance Clamp Tester is a sophisticated and efficient device designed for measuring ground resistance and leakage current without the need for disconnecting the ground system. This feature makes it ideal for use in various environments, such as electrical utilities, telecommunications, and industrial facilities.

The Megger DET24C operates by clamping around a grounding conductor and applying a known voltage, then measuring the resulting current to calculate the ground resistance. For leakage current measurements, it directly detects the current flow through the conductor.

The Megger DET24C Ground Resistance Clamp Tester is an essential tool for professionals requiring precise and reliable ground resistance and leakage current measurements in diverse applications.

Megger DET24C-Ground Resistance Clamp Testers App

Electrical Utilities: Ideal for testing grounding systems in substations, power plants, and distribution networks.

Telecommunications: Essential for ensuring proper grounding in communication towers and telecom infrastructure.

Industrial Facilities: Suitable for testing grounding in factories, refineries, and other industrial environments.

Megger DET24C-Ground Resistance Clamp Testers Key Features

on-Disruptive Testing: Measures ground resistance and leakage current without the need to disconnect the ground system.

Comprehensive Measurement Range: Ground resistance measurement from 0.05Ω to 1500Ω and leakage current from 0.5mA to 35A.

Data Logging: Integrated memory for storing up to 200 measurements for later retrieval and analysis.

Durable Design: Built to withstand harsh environments with IP40 protection against dust and water ingress.

Easy to Use: Features a clear backlit LCD display and intuitive interface for straightforward operation.

Megger DET24C-Ground Resistance Clamp Testers Specifications

Ground Resistance Range	0.05Ω to 1500Ω
Leakage Current Range	0.5mA to 35A
Accuracy	±1% ±0.01Ω (resistance), ±2% ±0.1mA (current)
Data Storage Capacity	Up to 200 measurements
Display	Backlit LCD
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +60°C
Battery Life	Approximately 10 hours of continuous use
Weight	1.3 kg (2.9 lbs)
Dimensions	300 x 90 x 60 mm
Protection Class	IP40
