MEGGER SVERKER650 Single-Phase Relay Test Set

MEGGER SVERKER650 Single-Phase Relay Test Set

Store / Electrical
31,500.00 AED
In stock
Product Details
Brand: Megger
Current Range: 0 – 10 A / 0 – 100 A
Timer range: 0 – 999.999 s
Current outputs: 0 – 10 A; 0 – 40 A; 0 – 100 A
Voltage outputs,: 0 – 250 V AC; 110 V AC (fixed); 0 – 350 V DC; 20 – 220 V DC (stab.)
Operating Temperature: 0°C to +50°C (32°F to +122°F)
Storage Temperature: -40°C to 70°C (-40°F to +158°F)
Power: 115 / 230 V AC, 50 / 60 Hz
Dimentions: 280 x 178 x 250 mm (11” x 7” x 9.8”)
Weight: 16 kg (35.3 lbs)
Protection: Thermal cut-outs, miniature circuit breakers

MEGGER SVERKER650 Advanced Single-Phase Relay Test Set

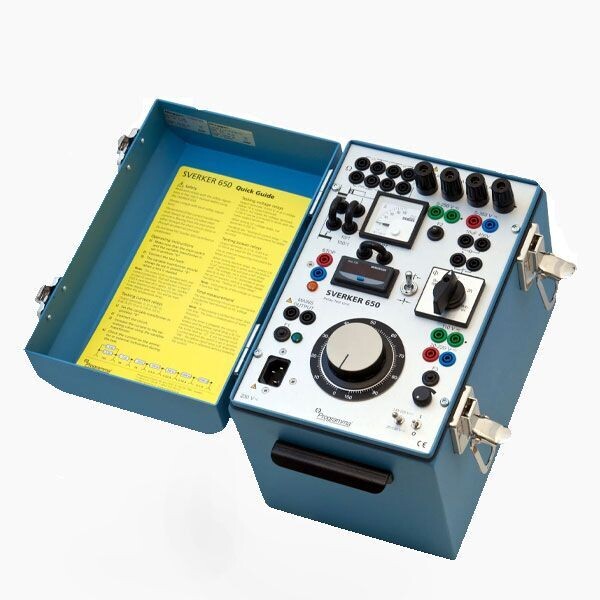

The MEGGER SVERKER650 Single-Phase Relay Test Set is a powerful and compact instrument designed for secondary testing of various single-phase protection relays. Its well-earned reputation for reliability, convenience, and portability makes it an essential tool for relay engineers working in high-voltage substations and industrial environments.

The SVERKER650 is specifically designed for testing a wide range of single-phase protection relays, including power, voltage, and current relays. It provides all the necessary functions for secondary testing, making it an indispensable item in the relay engineer's toolbox. The instrument is equipped with a 0 to 100 Amp output current, ensuring high compliance voltage and test current for accurate and efficient testing.
This relay test set offers versatility in its application, being suitable for use in high-voltage substations and industrial environments. Its compact and portable design, combined with the ability to test various types of relays, makes it a versatile and essential tool for relay engineers working in different settings.
The SVERKER650 is equipped with advanced features such as a built-in capacitor that provides phase shift when testing directional protective relays. It also includes a set of resistors for voltage division, making it a comprehensive solution for testing different types of relays. The instrument's logical design and construction, along with its ease of use, contribute to its reliability and convenience.
The MEGGER SVERKER650 Single-Phase Relay Test Set is a powerful and reliable instrument that provides all the necessary functions for secondary testing of single-phase protection relays. Its compact and portable design, combined with advanced features such as a built-in capacitor and resistors, makes it an essential item in the toolkit of relay engineers working in high-voltage substations and industrial environments. The SVERKER650's versatility and well-earned reputation for reliability and convenience make it an indispensable tool for accurate and efficient relay testing.

MEGGER SVERKER650 Advanced Single-Phase Relay Test Set Specifications:

  • Application field :The instrument is intended for use in high-voltage substations and industrial environments.
  • Temperature Operating :0°C to +50°C (32°F to +122°F)
  • Storage & transport :-40°C to 70°C (-40°F to +158°F)
  • Humidity: 5% – 95% RH, non-condensing
  • LVD: 2006/95/EC
  • EMC: 2004/108/EC
  • Mains voltage: 115/230 V AC, 50/60 Hz
  • Power consumption :1100 VA (max)
  • Protection: Thermal cut-outs, miniature circuit breakers
  • Dimensions
  • Instrument :280 x 178 x 250 mm (11” x 7” x 9.8”)
  • Transport case: 560 x 260 x 360 mm (22” x 10.2” x 14.2”)
  • Weight :16 kg (35.3 lbs),26 kg (57.3 lbs) with accessories and transport case.

Measurement section

  • Current measurement (Built-in ammeter)
    • Ranges: 0 – 10 A / 0 – 100 A
    • Inaccuracy: ±5%
  • External ammeter
    • Output for external ammeter: Connected to built-in current transformer
    • Inaccuracy: ±1%
  • Timer
    • Range: 0 – 999.999 s
    • Resolution: 1 ms
    • Inaccuracy: ±0.02% of displayed value, +2 ms, Independent of mains frequency
  • Current outputs, AC: 0 – 100 A 10 V 7.7 V (100 A) 20 s / 5 min
  • Voltage outputs, AC / DC: 0 – 350 V DC 280 V (2 A)
