kyoritsu 3005a kyoritsu insulation tester
+3
+2

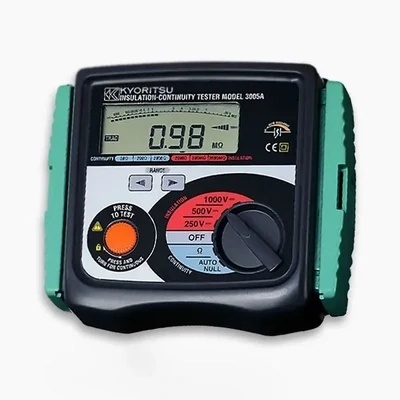

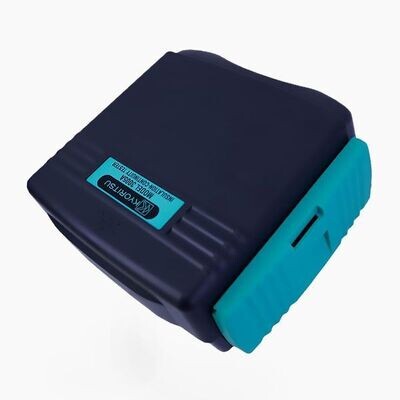

KYORITSU 3005A DIGITAL INSULATION / CONTINUITY TESTER

Store / Electrical
962.00 AED
In stock
Product Details
Brand: Kyoritsu
Test Voltage Range: 250V/500V/1000V
AC voltage Range: 0 - 600V AC
Continuity testing Range: 20Ω/200Ω/2000Ω

KYORITSU 3005A DIGITAL INSULATION / CONTINUITY TESTER

The KYORITSU 3005A Digital Insulation/Continuity Tester is a versatile instrument used for testing insulation resistance and continuity in electrical circuits and equipment.

Insulation Resistance Testing

The KYORITSU 3005A is primarily designed for measuring insulation resistance in electrical systems. It is used to check the quality of insulation in wires, cables, motors, and other electrical components. This helps identify potential issues such as deteriorated insulation that could lead to electrical faults or safety hazards.

kyoritsu 3005a Test Voltage

This tester typically operates at various test voltages, commonly 250V, 500V, and 1000V, allowing you to perform insulation resistance tests at different voltage levels depending on the application and standards.

Continuity Testing

In addition to insulation resistance testing, the KYORITSU 3005A can be used to check the continuity of electrical circuits. It can determine whether a circuit is open (broken) or closed (intact).

kyoritsu insulation continuity tester 3005A Features

  • Bargraph to display insulation resistance.
  • Displays the value of external AC voltage along with flashing symbol.
  • Auto null function to automatically subtract the test lead resistance before displaying the real continuity resistance value.
  • Live circuit warning beeper.
  • Releasing the test button automatically discharges the charges stored in the circuit under test.
  • 200mA continuity measuring current to IEC 61557.
  • Minimum 1mA current on insulation tests to IEC 61557.

Kyoritsu 3005A Price

For the most current and accurate pricing, it's best to check with authorized Kyoritsu distributors or reputable online retailers.

KYORITSU 3005A Specifications

  • Insulation Resistance
    • Test voltage 250V/500V/1000V
    • Measuring ranges
      (Mid-scale value) 20MΩ/200MΩ/2000MΩ
    • Output voltage on open circuit Rated test voltage+20%, -0%
    • Nominal current 1mA DC min.
    • Output short circuit current 1.5 mA DC approx.
    • Accuracy ±1.5%rdg±5dgt (20MΩ/200MΩ) ±10%rdg±3dgt (2000MΩ)
  • Continuity Test
    • Measuring ranges
      (Mid-scale value) 20Ω/200Ω/2000Ω
    • Output voltage on open circuit 7 - 12V DC
    • Measuring current 200mA DC min.
    • Accuracy ±1.5%rdg±5dgt (20Ω) ±1.5%rdg±3dgt (200Ω/2000Ω)
  • AC Voltage
    • AC voltage range 0 - 600V AC
    • Accuracy ±5%rdg±3dgt
  • General
    • Safety Standard IEC 61010-1 CAT III 300V Pollution Degree 2
    • IEC 61010-2-031 IEC 61557-1/2/4
    • IP Rating IEC 60529-IP54
    • EMC Standard IEC 61326-1
    • Power source R6 (AA) (1.5V) × 8
    • Dimensions 167(L) × 185(W) × 89(D)mm
    • Weight 970g approx

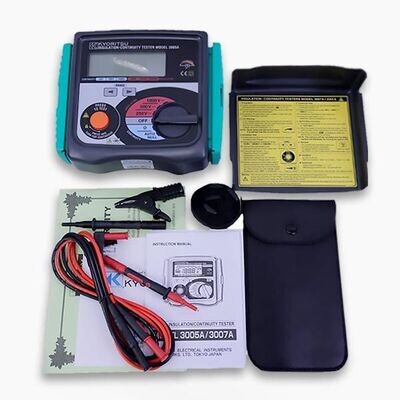

    • Included Accessories 7122B (Test leads) Pouch for test leads 8923 (F500mA/600V fuse) × 2 R6 (AA) × 8, Shoulder Strap Instruction Manual
