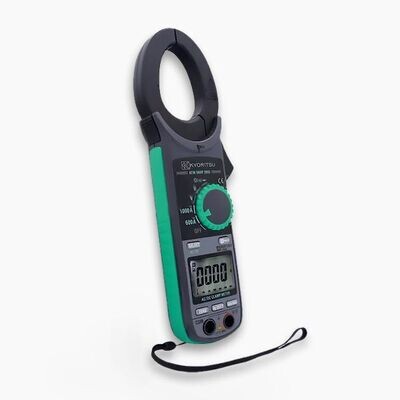

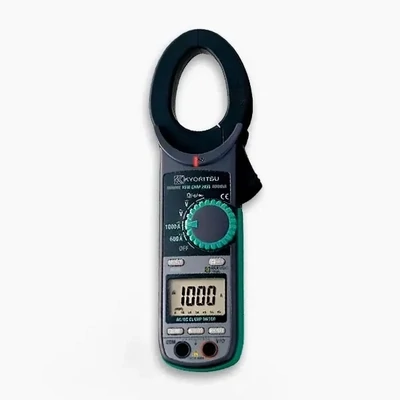

KEW 2055 AC/DC DIGITAL CLAMP METER
+3
+2

KEW 2055 AC/DC DIGITAL CLAMP METER

Store / Electrical
536.00 AED
In stock
Product Details
Brand: Kyoritsu
Jaw Diameter: Ø40mm
AC Current Range: 0 - 600.0A,1000A
DC Current Range: 0 - 600.0A,1000A
AC Voltage Range: 6/60/600V
DC Voltage Range: 600m/6/60/600V
Applicable model: Up to 60MΩ
Frequency Range: 10/100/1k/10kHz
Dimension: 254(L) × 82(W) × 36(D)mm

KEW 2055 AC/DC DIGITAL CLAMP METER

The KEW 2055 AC/DC Digital Clamp Meter is a versatile tool designed for electricians and technicians to measure current in both alternating current (AC) and direct current (DC) circuits. It's equipped with a digital display that provides accurate readings, making it easier to troubleshoot electrical systems.

KEW 2055 Features

  • Designed to meet international safety standard IEC 61010-1 CAT IV 600V.
  • CAT IV Clamp Meters can measure the Voltage and Current in both every low and high power circuits.
  • Very useful for power distribution companies, power utilities and maintenance fields.

Related Products

KYORITSU 2055 Specifications:

AC A 0 - 600.0/1000A
±1.5%rdg±5dgt (50/60Hz)
±3.0%rdg±5dgt (40 - 400Hz)
DC A 0 - 600.0/1000A
±1.5%rdg±5dgt
AC V 6/60/600V
Auto Ranging
±1.3%rdg±4dgt (50/60Hz)
±3.0%rdg±5dgt (40 - 400Hz)
DC V 600m/6/60/600V
Auto Ranging
±1.0%rdg±3dgt
Ω 600/6k/60k/600k/6M/60MΩ (Auto Ranging)
±1%rdg±5dgt (600 - 6M) / ±5%rdg±8dgt (60M)
Continuity buzzer Buzzer Sounds at 100Ω
Frequency/DUTY 10/100/1k/10kHz (Auto Ranging) / 0.1 - 99.9%
Conductor size Ø40mm
Safety Standard IEC 61010-1 CAT IV 600V,
IEC 61010-031,
IEC 61010-2-032,
IEC 61326
Power source R03 (1.5V) (AAA) × 2
Dimensions 254(L) × 82(W) × 36(D)mm
Weight 310g
Included Accessories 7066A (Test leads)
9094 (Carrying case)
Instruction Manual
