Hioki Pd3129-10 Phase Detector
+3
+2

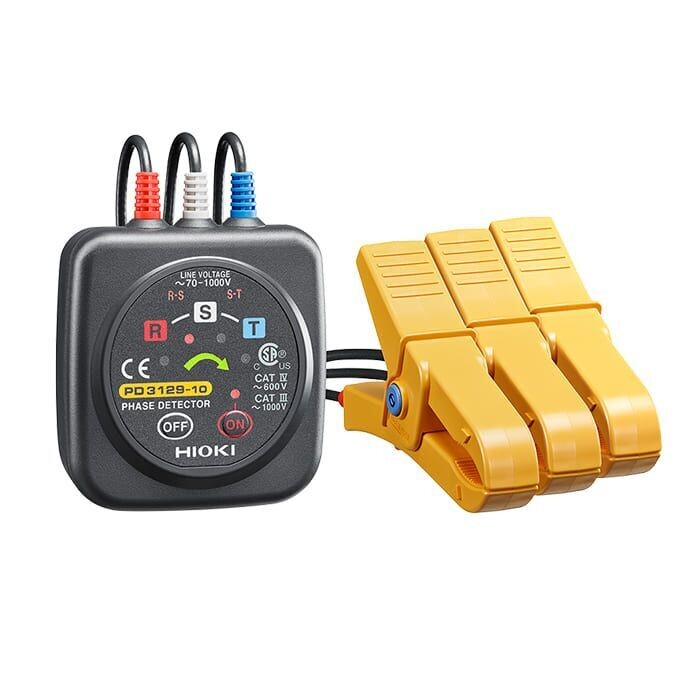

Hioki PD3129-10 PHASE DETECTOR

Store / Electrical
628.00 AED
In stock
Product Details
Brand: Hioki
Dimension: 70 mm (2.76 in) W × 75 mm (2.95 in) H × 30 mm (1.18 in) D

Hioki PD3129 10 Phase Detector

The Hioki PD3129-10 phase detector, commonly known as the Hioki phase rotation metre, is a high-tech instrument that detects phase and measures rotation.

Prioritizing efficiency and safety, Hioki's technology for non-contact voltage detection and measurement aims to protect customers engaged in on-site electrical work during the restoration and expansion of manufacturing plants and buildings.

Hioki PD3129-10 Features

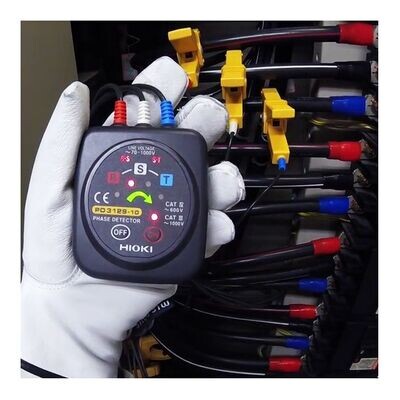

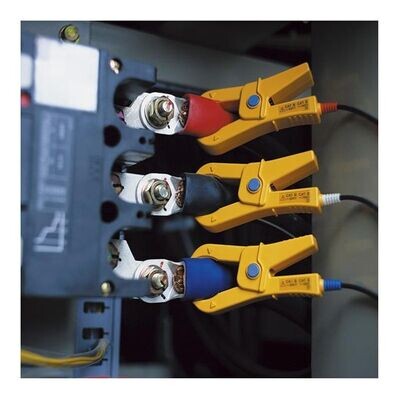

  • Simply clip clamps onto wire insulation
  • Green LED arrow clearly shows phase direction, perfect for visual reports
  • CAT III 1000V
  • Rotating LED indicator shows the phase sequence for a 3-phase power supply at a glance

Hioki PD3129-10 Specifications

Functions Phase detection (positive and negative)
Voltage detection method Static induction
Voltage range 70 to 1000 V AC (50/60 Hz) (sine wave,continuous input)
Frequency range 45 Hz to 66 Hz
Object to be connected 7 mm (0.28 in) to 40 mm (1.57 in) of insulated wiring
IV, HIV cable: 14 to 500 mm^2
CV cable: 3.5 to 500 mm^2
Display Phase detection : Positive ; 4 LEDs lit in clockwise order and the buzzer sounds intermittently
Negative ; 4 LEDs lit in counterclockwise order and the buzzer sounds continuously
Battery check function Power ON lamp: lights up (Power ON), blinks (Battery LOW)
Auto power off Auto shut off if no activity is detected after power is turned ON for 15 minutes
Power supply R6P (AA) manganese battery ×2, Continuous use: 70 hr
Dimensions and mass 70 mm (2.76 in) W × 75 mm (2.95 in) H × 30 mm (1.18 in) D, 240 g (8.5 oz), Cord length : 0.7 m (2.30 ft)
Included accessories Carrying case ×1, Strap ×1, Spiral tube ×1, Instruction manual ×1, R6P (AA) manganese battery ×2
