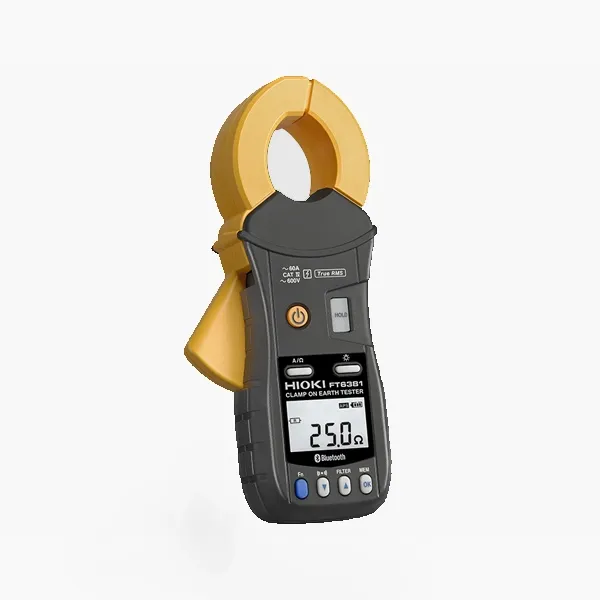

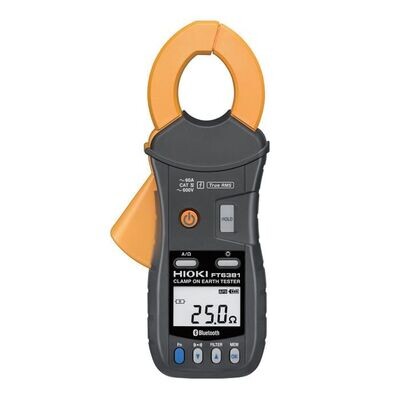

Hioki FT6381 Clamp On Earth Tester

Name: Hioki FT6381 CLAMP ON EARTH TESTER | Uazon
Brand: Hioki
SKU: 00123
Availability: InStock

Store / Electrical

0.00 AED

In stock

Product Details

Brand: Hioki

Earth Resistance Range: 0.20 Ω (0.01 Ω resolution) to 1600 Ω (20 Ω resolution)

AC Current Range: 20.00 mA (0.01 mA resolution) to 60.0 A

Conductor size: φ 32 mm

Dimension: 73 mm (2.87 in)W × 218 mm (8.58 in)H × 43 mm (1.69 in)D

Hioki Ft6381 Clamp On Earth Tester

Hioki FT6381 simplifies grounding resistance measurement by securely clamping onto multiple-grounded ground wires, eliminating the necessity for an auxiliary grounding rod or disconnecting the ground wire from the grounding rod.

The compact and low-profile sensor ensures easy clamping of ground wires while offering additional functionality, including AC current measurement. It can accurately measure currents, spanning from leakage current in the order of several mA to load currents of up to 60 A.

Hioki FT6381 Features

Earth resistance measurement for multi-grounded systems
Measure leak current
Measure load current up to 60.0 A range

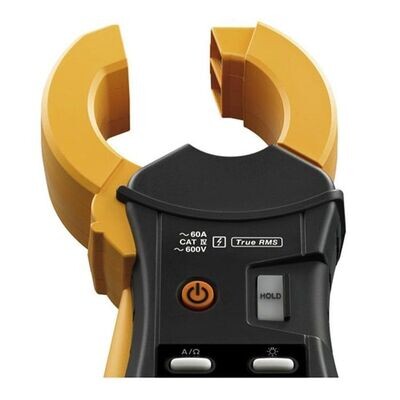

Clamp at the narrowest point
Real time data transfer, automatic report generation on Android™ phone
Model No. (Order Code): FT6381 Built in Bluetooth(R) wireless technology

Hioki FT6381 Price

You can get this practical device at competitive price across the U.A.E

Hioki FT 6381 Specifications

Measurement principle	Instrument has two cores for voltage injection and current measurement. From the defined voltage and measured current, the total circuit loop resistance is calculated Note: For multi grounded systems only. In a multi-grounded system, the larger the number of grounding poles, the more accurate the measured value.
Earthing resistance range	0.20 Ω (0.01 Ω resolution) to 1600 Ω (20 Ω resolution), 10 ranges, Zero suppression: Less than 0.02 Ω, Accuracy: ±1.5 % rdg. ±0.02 Ω
AC Current range	20.00 mA (0.01 mA resolution) to 60.0 A (0.1 A resolution), 5 ranges, Zero suppression: Less than 0.05 mA, Accuracy: ±2.0 % rdg. ±0.05 mA (30 Hz to 400 Hz, True RMS), Crest factor 5.0 or less (for the 60 A range, 1.7 or less)
Max. allowable input	100 A AC continuous, AC 200 A for 2 minutes or shorter (at 50/60 Hz, requires derating at frequency)
Max. rated voltage to earth	600 V AC CAT IV
Memory function	2000 data
Alarm function	For resistance measurement and current measurement, Beeps when measured value is less than or greater than threshold
Other functions	Data hold, Backlight, Filter, Auto power save
Display	Digital LCD, max. 2000 dgt., Display refresh rate: 500 ms (2 times/s)
Waterproof and dustproof	IP40 (EN60529) with clamp sensor closed
Communication interface	Model FT6381 only: Bluetooth® v2.1+EDR, Compatibility for Smartphone / Tablet, Displays measured values on the screen of an Android™ handset via Bluetooth®, Applicable OS: Android™ 2.1 or later
Power supply	LR6 (AA) alkaline battery ×2, Max. rated power: 450 mVA, Continuous use : 35 hr (in-house testing conditions)
Core jaw dia.	φ 32 mm (1.26 in)
Dimensions and mass	73 mm (2.87 in)W × 218 mm (8.58 in)H × 43 mm (1.69 in)D, 620 g (21.9 oz)
Included accessories	Carrying case ×1, Resistance check loop (1 Ω, 25 Ω) ×1, Strap ×1, LR06 (AA) alkaline battery ×2, Instruction manual ×1
