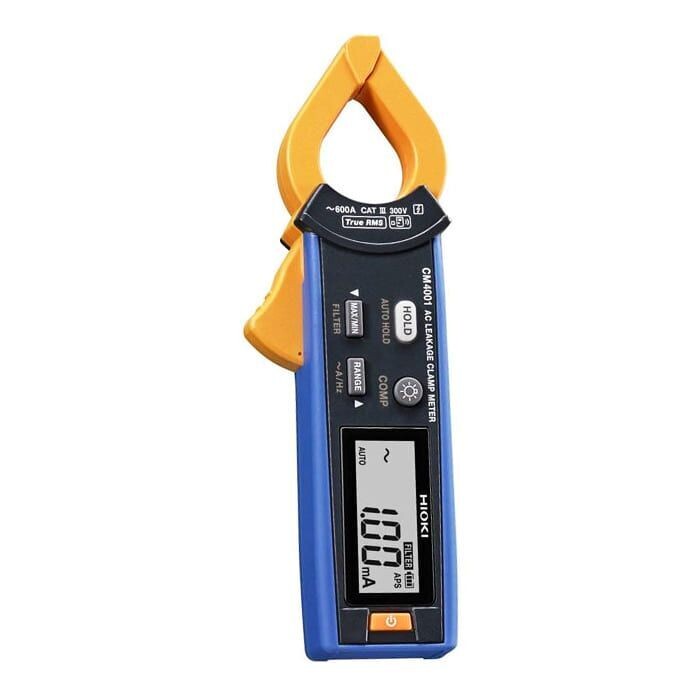

Hioki CM4001 AC LEAKAGE CLAMP METER
+2

Hioki CM4001 AC LEAKAGE CLAMP METER

Store / Electrical
1,469.00 AED
In stock
Product Details
Brand: Hioki
Jaw Diameter: φ 24 mm (0.94 in)
AC Current Range: 60.00 mA/ 600.0 mA/ 6.000 A/ 60.00 A/ 600.0 A
Frequency Range: 40.0 Hz to 999.9 Hz
Dimension: 37 mm (1.46 in) W × 160 mm (6.30 in) H × 27 mm (1.06 in) D
Power Supply: LR03 alkaline battery × 1

Hioki CM4001 AC Leakage Clamp Meter

The Hioki CM4001 stands out as a top-tier measuring instrument, showcasing Hioki's proficiency in current sensing technology. Its design allows for easy clamping amidst densely packed cables, streamlining work processes and enhancing safety measures. With a confirmed accuracy ranging from 0.60 mA to 600.0 A, the CM4001 serves as a comprehensive solution for diverse applications. Additionally, its integrated comparator function accelerates issue detection, contributing to faster problem resolution.

Hioki CM4001 Features

  • Easily transfer measurement data to your smartphone or tablet
  • Slim jaws let you work with ease
  • Measure everything from leakage to load
  • Find issues faster with the comparator function
  • Identify intermittent GFCI and RCD trips to prevent unplanned equipment downtime by testing for earth leakage current

Hioki CM4001 Specifications

AC Current range 60.00 mA/ 600.0 mA/ 6.000 A/ 60.00 A/ 600.0 A, 5 ranges (40 Hz to 1 kHz, True RMS)
Basic accuracy (45-66 Hz): ±1.5% rdg ±5 dgt (60.00 mA to 6.000 A), ±2.5% rdg ±5 dgt (60.00 A to 600.0 A)
Guaranteed accuracy: from 0.60 mA to 600.0A
AC Voltage range N/A
Frequency range 40.0 Hz to 999.9 Hz
Crest factor 4.5 (4000 counts or less)
3 (more than 4000 counts, 6000 counts or less)
Filter function Cut off frequency: 180 Hz ±30 Hz at filter ON (-3 dB)
Output function N/A
Harmonic levels [With Z3210 installed] Current harmonic levels up to 30th, Content factor, Total harmonic distortion ratio
*Harmonics can be displayed with our free app GENNECT Cross.
Other functions Comparator function, record Max/Min/Avg value, backlight, data hold, auto power off, AC inrush function
Display Display refresh rate: 5 times/s
Power supply LR03 alkaline battery × 1; Continuous operating time: 32 hr. (without Z3210 installed), 16 hr. (with Z3210 installed and using wireless communications)
Core jaw diameter φ 24 mm (0.94 in)
Dimensions and mass 37 mm (1.46 in) W × 160 mm (6.30 in) H × 27 mm (1.06 in) D, 115 g (4.1 oz.)
Included accessories Carrying case × 1, Strap × 1, Instruction manual × 1, Operating Precautions × 1, LR03 alkaline battery × 1
