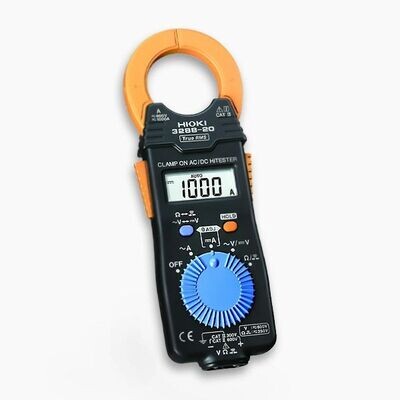

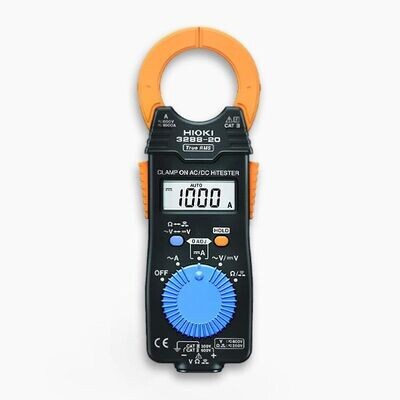

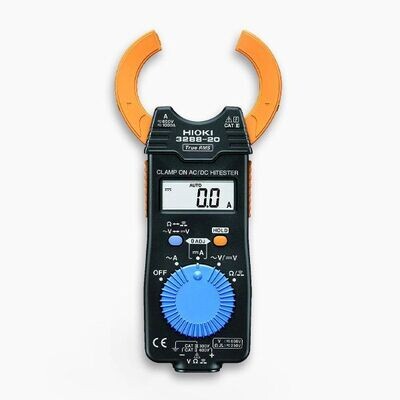

Hioki 3288-20 AC/DC Clamp Meter (True RMS)
+3
+2

Hioki 3288-20 AC/DC Clamp Meter (True RMS)

Store / Electrical / Clamp Current Meters
749.00 AED
In stock
Product Details
Brand: Hioki
Jaw Diameter: φ 35 mm (1.38 in)
AC Current Range: 100.0/ 1000 A
DC Current Range: 100.0/ 1000 A
AC Voltage Range: 4.199 V to 600 V
DC Voltage Range: 419.9 mV to 600 V
Applicable model: 419.9 Ω to 41.99 MΩ

Hioki 3288-20 AC/DC Clamp Meter (True RMS)

The Hioki 3288-20 is a cutting-edge digital clamp meter designed to satisfy the various measuring requirements of experts in many sectors. This clamp meter provides precise and trustworthy readings for a variety of electrical parameters thanks to its durable design and cutting-edge features.

The Hioki 3288-20 gives customers the ability to handle challenging electrical chores with ease and is outfitted with a clear LCD display, user-friendly interface, and a variety of measurement functions. This multimeter proves to be an essential instrument for troubleshooting, maintenance, and quality control whether you're an electrician, engineer, or technician. You can rely on the Hioki 3288-20's accuracy and adaptability to improve your measurement experience.

To get more information about the Hioki 3288 20 price be in touch with our exprts.Being a renowned distributor, UAZON takes pride in fulfilling your measurement instrument needs with an extensive range of top global brands, all offered at budget-friendly rates.

Hioki 3288 20 DC Introduction


Hioki 3288 20 DC Clamp Meter Features

  • Voltage, resistance, and continuity check functions
  • Use the 3288 for high current measurements such as UPS emergency batteries and train motors.

Related Products

Hioki 3288-20 Specifications

Specifications 3288-20
DC Current range 100.0/ 1000 A, Basic accuracy: ±1.5 % rdg. ±5 dgt.
AC Current range 100.0/ 1000 A, (10 Hz to 500 Hz, True RMS),
Basic accuracy: ±1.5 % rdg. ±5 dgt.
DC Voltage range 419.9 mV to 600 V, 5 ranges, Basic accuracy: ±1.3 % rdg. ±4 dgt.
AC Voltage range 4.199 V to 600 V, 4 ranges,
Basic accuracy: ±2.3 % rdg. ±8 dgt.
(30 to 500 Hz, True RMS)
Resistance range 419.9 Ω to 41.99 MΩ, 6 ranges, Basic accuracy: ±2 % rdg. ±4 dgt.
Crest factor 3 or less (2 at 1000 A range, 1.5 at Voltage)
Other functions Continuity: (50 Ω ±40 Ω) or less buzzer sounds, Data hold, Auto power save, Auto zero (DC A)
Display LCD, max. 4199 dgt., Display refresh rate: 2.5 times/s
Power supply Coin type lithium battery (CR2032) ×1, Continuous use 35 hours
Core jaw dia. φ 35 mm (1.38 in)
Dimensions and mass 57 mm (2.24 in) W × 180 mm (7.09 in) H × 16 mm (0.63 in) D, 150 g (5.3 oz)
Included accessories Coin type lithium battery (CR2032) × 1, Carrying case 9398 ×1, Test lead L9208 ×1, Instruction manual ×1
