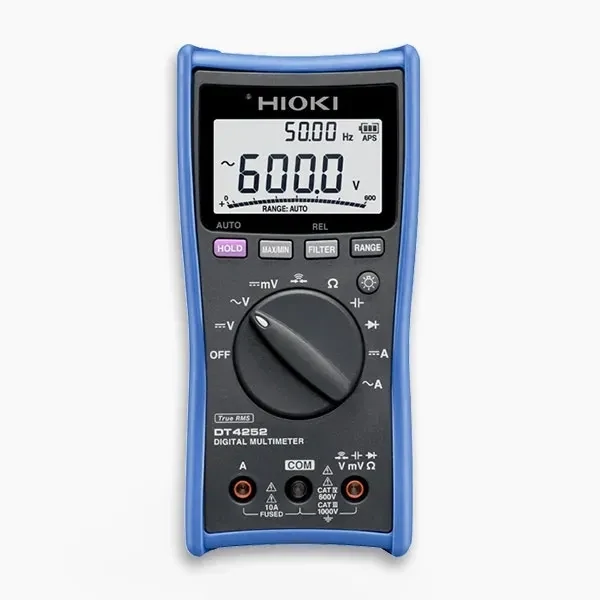

HIOKI DT4252 Digital Multimeter

Name: HIOKI DT4252 Digital Multimeter | Uazon
Brand: Hioki
SKU: 00040
Price: 400.0 AED
Availability: InStock

Store / Electrical

400.00 AED

In stock

Product Details

Brand: Hioki

AC Voltage Range: 6.000 V to 1000 V

DC Voltage Range: 600.0 mV to 1000 V

AC Current Range: 6.000 A / 10.00 A

DC Current Range: 6.000 A / 10.00 A

Resistance Range: 600.0 Ω to 60.00 MΩ

Capacitance Range: 1.000 μF to 10.00 mF

Frequency Range : 99.99 Hz (5 Hz or more) to 9.999 kHz

HIOKI DT4252 Digital Multimeter

The HIOKI DT4252 is a digital multimeter engineered for general-purpose testing, boasting ±0.3% DC V accuracy, direct current input capability, and a generous 40 Hz to 1 kHz bandwidth.

Within the Hioki multimeter dt4252 , you'll discover a comprehensive range of 9 models catering to various needs, spanning from professional to industrial to pocket meters. This series offers an impressively rapid response rate and elevated safety features, elevating electrical testing to an advanced level.For more information about the Hioki dt4252 price be in touch with our experts.

Hioki multimeters DT4200 Series Introduction

HIOKI DT4252 Features

±0.3% DC V basic accuracy, wide 40 Hz to 1 kHz AC V frequency characteristics
Low-pass filter cuts high harmonics (when measuring inverter fundamental waveforms)
Measure up to 10A with direct input
USB communications function supports PC measurements (optional)
The dual display lets you check voltage and frequency simultaneously

Hioki 4242 Specifications

DC Voltage range	600.0 mV to 1000 V, 5 ranges Basic accuracy: ±0.3 % rdg. ±5 dgt.
AC Voltage range	6.000 V to 1000 V, 4 ranges, Frequency characteristics: 40 Hz - 1 kHz Basic accuracy 40 - 500 Hz : ±0.9 % rdg. ±3 dgt. (True RMS, crest factor 3)
AUTO AC/DCV	N/A
Resistance range	600.0 Ω to 60.00 MΩ, 6 ranges, Basic accuracy: ±0.7 % rdg. ±5 dgt.
DC Current range	6.000 A / 10.00 A, 2 ranges, Basic accuracy: ±0.9 % rdg. ±5 dgt.
AC Current range	6.000 A / 10.00 A, 2 ranges, Basic accuracy 40 - 500 Hz : ±1.4 % rdg. ±3 dgt. (True RMS, crest factor 3, 40 Hz to 1 kHz)
AC Current range (use with Clamp on probes)	N/A
Voltage detection (50/60 Hz)	N/A
Capacitance range	1.000 μF to 10.00 mF, 5 ranges, Basic accuracy: ±1.9 % rdg. ±5 dgt.
Frequency range	AC V, AC A measurement: 99.99 Hz (5 Hz or more) to 9.999 kHz, 3 ranges, 99.99 kHz (only for AC V) Basic accuracy: ±0.1 % rdg. ±1 dgt.
Continuity check	Continuity threshold [ON]: 25 Ω or less (Indicate buzzer sound, red LED), [OFF]: 245 Ω or more Response time: 0.5 ms or more
Diode test	Open terminal voltage: 5.0 V or less, Testing current 0.5 mA or less, Threshold of forward voltage: 0.15 V to 1.5 V
Other functions	Filter function, display value hold, auto hold, MAX/MIN/Average value display, relative value display, auto-power save, USB communication (option)
Display	Main and sub displays: 4-digits LCD, max. 6000 digits, bar graph
Display refresh rates	5 times/s (Capacitance measurement: 0.05 to 5 times/s, depending on measured value, Frequency: 1 to 2 time/s, Temperature: 1 time/s )
Power supply	LR03 alkaline batteries ×4, Continuous use: 130 hours (back light OFF)
Dimensions and mass	84 mm (3.31 in)W × 174 mm (6.85 in)H× 52 mm (2.05 in)D, 390 g (13.8 oz) (with batteries and holster)
Included accessories	Test lead L9207-10 ×1, Holster ×1, Instruction manual ×1, LR03 alkaline battery ×4

HIOKI DT4252 Price

The price of the Hioki DT4252 places it in the mid-range category of digital multimeters, making it an accessible option for those who require high accuracy and reliability without the premium cost of higher-end models.
