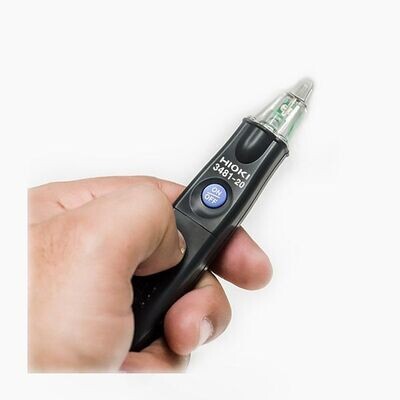

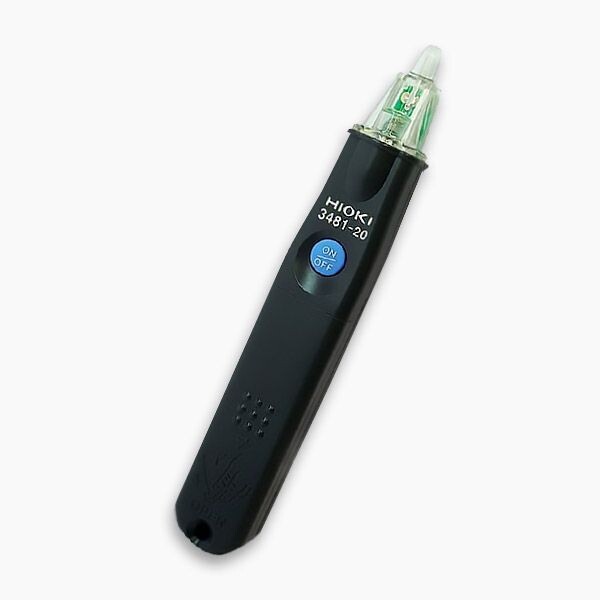

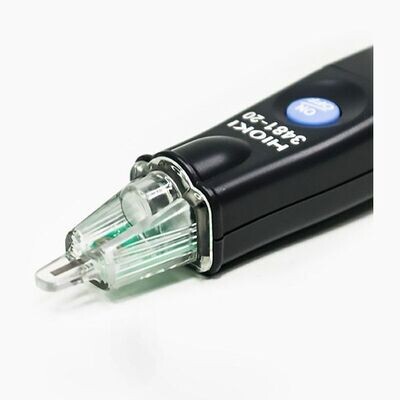

The HIOKI 3481-20 Voltage Detector is a handheld device designed for non-contact detection of electrical voltage.
+4
+3
+2

HIOKI 3481-20 VOLTAGE DETECTOR

Store / Electrical / Voltage Detector
103.00 AED
In stock
Product Details
Brand: Hioki
Voltage Range: 40 V to 600 V AC
Dimension: 20 × 126 × 15 mm

HIOKI 3481 20 Review

Hioki is at the forefront of the field with its non-metallic contact testing and measurement technology, a hallmark of workplace safety. The Hioki 3481-20 stands as a pen-style voltage detector Tester with a non-metallic design, featuring a powerful LED light that enhances safety and work productivity, especially in dimly lit environments. Upon detecting voltage, the LED illuminates in red, accompanied by an audible signal.

Here at UAZON, our dedication revolves around delivering outstanding customer service. Our team of experts is fully prepared to guide you in choosing the optimal measuring instrument tailored to your specific application.For more information about the Hioki 3481-20 price contact our experts.

Unboxing the Hioki 3481-20


HIOKI Voltage Detector 3481-20 Features

  • Non-contact detection of AC voltage from 40 V to 600 V with bright LED light
  • Pen-style, compact detector with pocket clip
  • Both visual and audible voltage detection indication
  • Meets safety standards for CAT IV 600 V environments
  • Prevent dead batteries with battery self-check function and auto power-off function

HIOKI 3481 20 Voltage tester Specifications

Measurement function Voltage detection
Operating voltage range 40 V to 600 V AC (When brought into contact with a 2 mm^2 insulated cable equivalent to 600 V polyvinyl chloride insulated wire)
Maximum sensitivity variable range 40 V to 80 V AC (80 V at the time of shipment)
Operating frequency 50 Hz/ 60 Hz
Pilot light Red LED lights up and the buzzer sounds when the wire is live
Battery check White LED is dim or out when the batteries are low.
Auto power off The power will be turned off automatically if the instrument remains idle for 3 minutes after the power is turned on.
Power supply LR44 button alkaline batteries ×3, Continuous use: 5 hr (Power ON standby state)
Dimensions and mass 20 mm (0.79 in)W× 126 mm (4.96 in)H× 15 mm (0.59 in)D (excluding projections), 30 g (1.1 oz) (including LR44 button alkaline batteries)
Included accessories Instruction manual ×1, LR44 button alkaline batteries ×3 (for trial purposes only)
