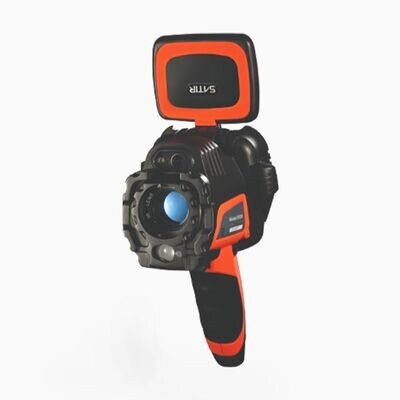

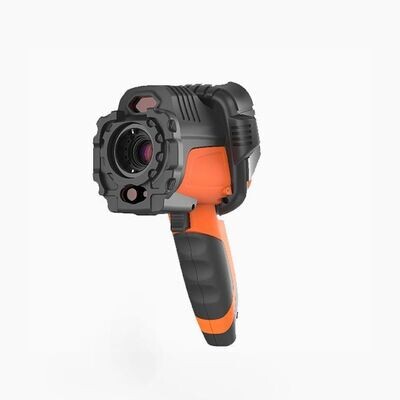

SATIR T-256 Thermal Camera

Satir T256 Thermal Camera

SATIR T-256 is a newly crafted product, engineered to seamlessly fit into the end-user's hand for extended hours of surveying comfort.The T-256 boasts a remarkably clear 13MP digital camera, a significant upgrade from many of our prior models that featured only a 5MP camera.

This higher resolution is especially beneficial when compiling reports. Additionally, with a generous 64GB memory storage capacity, the T-256 provides ample space for storing videos and images.

SATIR T 256 Key Features

• 256x192 IR Detector
• Android Open Platform
• 30Hz Frame Rate
• HDMI output for Images and Video
• Temperature Range –20°C ~ + 550°C
• Suitable for Industrial applications such as mechanical, plumbing and electrical
• Touch screen, easy to use new interface

SATIR T-256 Specifications

• Detector Type: UFPA
• Detector Resolution : 256x192
• Pixel Size : 12µm
• Thermal Sensitivity (N.E.T.D) : ≤50mK (0.05°C)@30°C
• Spectral range : 8~14μm
• Focus/Min. Focus Distance : Fixed/50cm Focus Free
• Field of View (FOV) : 56°x42°
• Temperature Range : –20 °C ~ + 550°C
• Accuracy : ±2°C or ± 2% of readings
• Weight: <500g (with battery)
• Dimensions: Height 25cm Camera Head Length 13cm
