Kyoritsu Kew 4105A Earth Tester

Name: Buy Kyoritsu Kew 4105A Earth Tester | kyoritsu earth tester
Brand: kyoritsu
SKU: 00099
Price: 1079.0 AED
Availability: InStock

Back to catalog

1,079.00 AED

In stock

Product Details

Brand: kyoritsu

Earth Resistance Range: 20Ω/200Ω/2000Ω

AC Earth Voltage Range: 0 - 200 V

Overload Protection: Earth resistance : 280V AC (10 seconds),Earth voltage : 300V AC (1 minute)

Safety Standard: IEC 61010-1 CAT Ⅲ300 V Pollution degree 2

Dimension: 105(L) × 158(W) × 70(D) mm

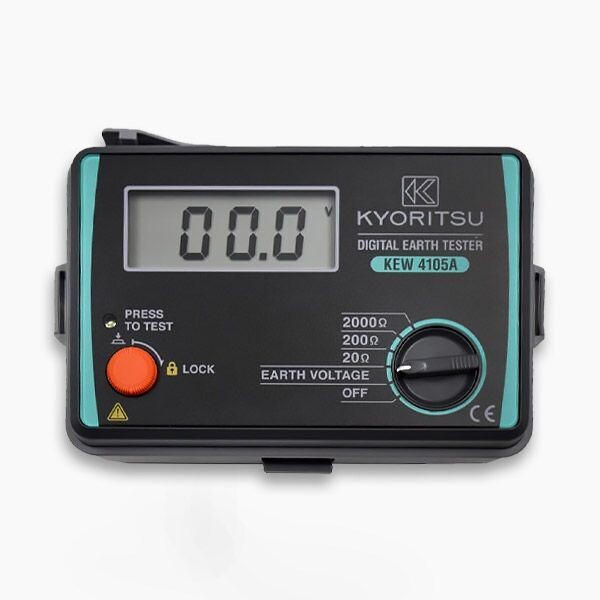

Kyoritsu 4105A Earth Tester

The Kyoritsu KEW 4105A Earth Resistance Tester is a versatile instrument designed for measuring earth resistance in various applications, including power distribution lines, in-house wiring systems, and electrical appliances. It also features an earth voltage range, allowing users to measure earth voltage accurately. The instrument is engineered to meet the safety standards outlined in IEC 61557.

Kyoritsu Kew 4105A Key Features

In addition to the facility for precision measurement, test leads for simplified two wire measuring system also supplied as standard accessories.
The latest circuit design permits the instrument to operate with the minimum of influence from earth voltage and earth resistance of auxiliary earth spikes.
Dust and drip proof. (designed to IEC 60529 IP54)
Earth resistance value can be read directly from the scale.
Designed to meet IEC 61010-1 safety standard.
Capable of measuring earth voltage.
Small and lightweight. Shock resistant new case material.
2mA measuring current permits earth resistance tests without tripping earth leakage current breakers in the circuit under test.

To buy kyoritsu 4105a earth tester online visit uazon website.

KEW 4105A Specifications

Earth resistance		20Ω	200Ω	2000Ω
measurement
	Measuring range	0.00 - 1999Ω
	Display range	0.00 - 19.99Ω	0.0 - 199.9Ω	0 - 1999Ω
	Accuracy	±2%rdg±0.1 Ω	±2%rdg±3dgt
Earth voltage measurement
	Measuring range	0 - 200 V AC (50,60Hz)
	Display range	0.0 - 199.9 V
	Accuracy	±1%rdg±4dgt
Overload protection		Earth resistance : 280V AC (10 seconds)
		Earth voltage : 300V AC (1 minute)
Applicable Standards		IEC 61010-1 CAT Ⅲ300 V Pollution degree 2
		IEC 61010-2-030, IEC 61557-1, -5, IEC 60529 (IP54)
Power source		R6(AA)(1.5V) × 6
Dimensions		105(L) × 158(W) × 70(D) mm (including case lid)
Weight		Approx. 550g (including batteries and case lid)
