About this model

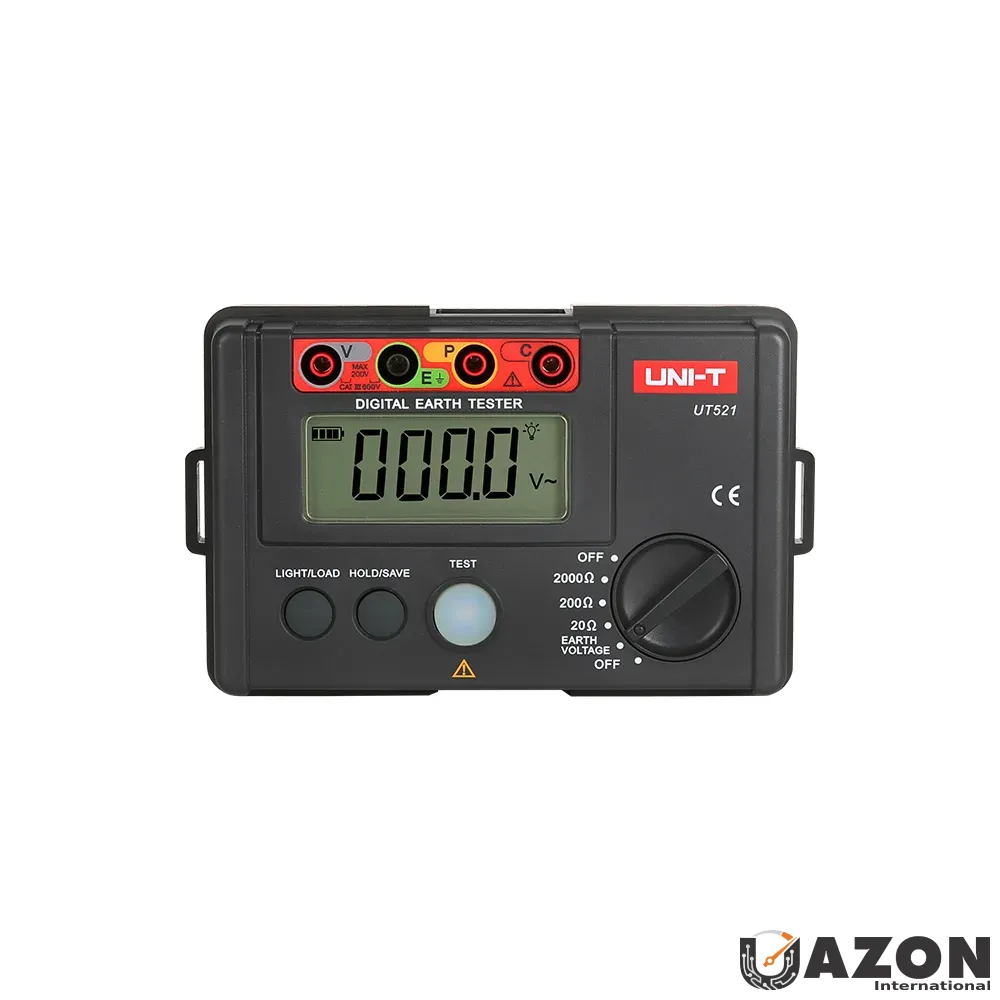

The UT521 Digital Earth Tester is a professional ground resistance measurement instrument designed for electrical contractors, facility maintenance teams, and safety inspectors throughout the UAE. This advanced earth resistance tester accurately measures grounding system integrity from 0 to 2000 ohms with ±2% precision, plus AC earth voltage detection up to 200V. Featuring both simple 2-wire and precise 3-wire testing methods, 20-point data storage, and a comprehensive accessory package including earth spikes and test leads, the UT521 delivers reliable grounding verification for electrical installations, lightning protection systems, and equipment safety testing across Dubai, Abu Dhabi, Sharjah, and all Emirates.
Key Features of UT521 Ground Resistance Tester
The UT521 provides three measurement ranges for earth resistance testing: 0-20Ω, 0-200Ω, and 0-2000Ω, accommodating everything from low-resistance grounding electrodes to high-resistance soil conditions. The 2000-count digital display with 70.6mm x 34mm screen ensures clear readability in outdoor field conditions. Manual ranging gives technicians precise control over measurement scales for optimal accuracy in professional applications.
Dual testing methodology supports both simple 2-wire testing for quick verification and precise 3-wire testing for accurate resistance measurements that compensate for lead resistance. AC earth voltage measurement to 200V with ±1% accuracy detects stray voltages and ground potential rise conditions that could indicate electrical faults or safety hazards. The frequency detection capability for 50Hz/60Hz systems ensures compatibility with UAE electrical standards and international installations.
Professional Data Management and Safety
Twenty-point data storage capacity enables comprehensive grounding system surveys without manual recording, essential for compliance documentation and quality control reports. Data hold function freezes readings for convenient manual transcription. The LCD backlight illuminates the full icon display for measurements in underground vaults, electrical rooms, and low-light field conditions. Auto power-off after approximately 10 minutes conserves battery life during extended field operations.
Double insulation protection ensures operator safety when testing energized grounding systems. Poor contact display showing "...Ω" alerts technicians to inadequate probe connections that could produce false readings. Over-range display showing "OL" indicates resistance exceeding the selected range. Low battery indication prevents unreliable measurements from insufficient power.
Applications for UT521 Digital Earth Resistance Tester
- Electrical grounding system verification and compliance testing
- Lightning protection system ground resistance measurement
- Telecommunications tower grounding assessment
- Substation and transformer grounding evaluation
- Industrial equipment ground connection testing
- Building electrical system safety inspections
- Solar panel installation grounding verification
- Generator and UPS grounding system testing
- Data center electrical safety compliance
- Construction site temporary ground testing
- Oil and gas facility grounding surveys
- Hospital and medical equipment ground testing
- Utility pole and transmission line grounding
- Soil resistivity measurement for grounding design

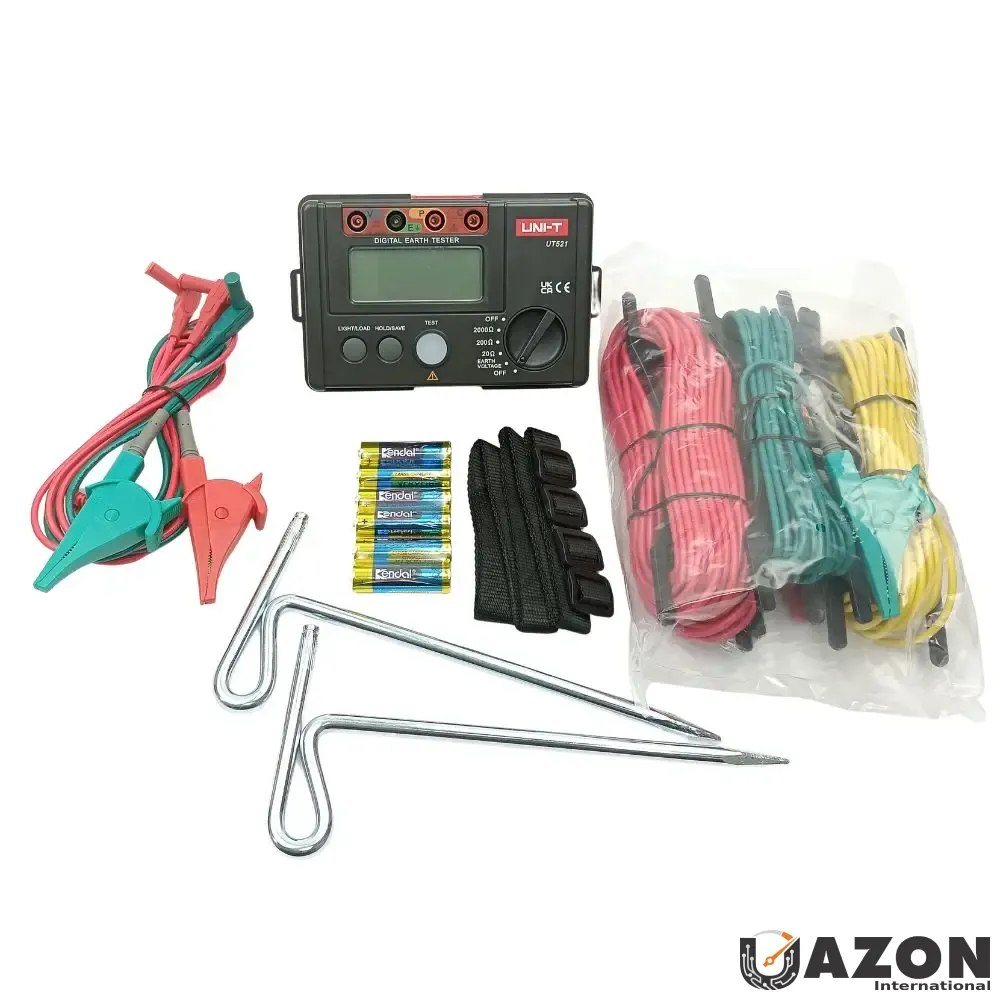

Complete UT521 Earth Tester Kit Accessories

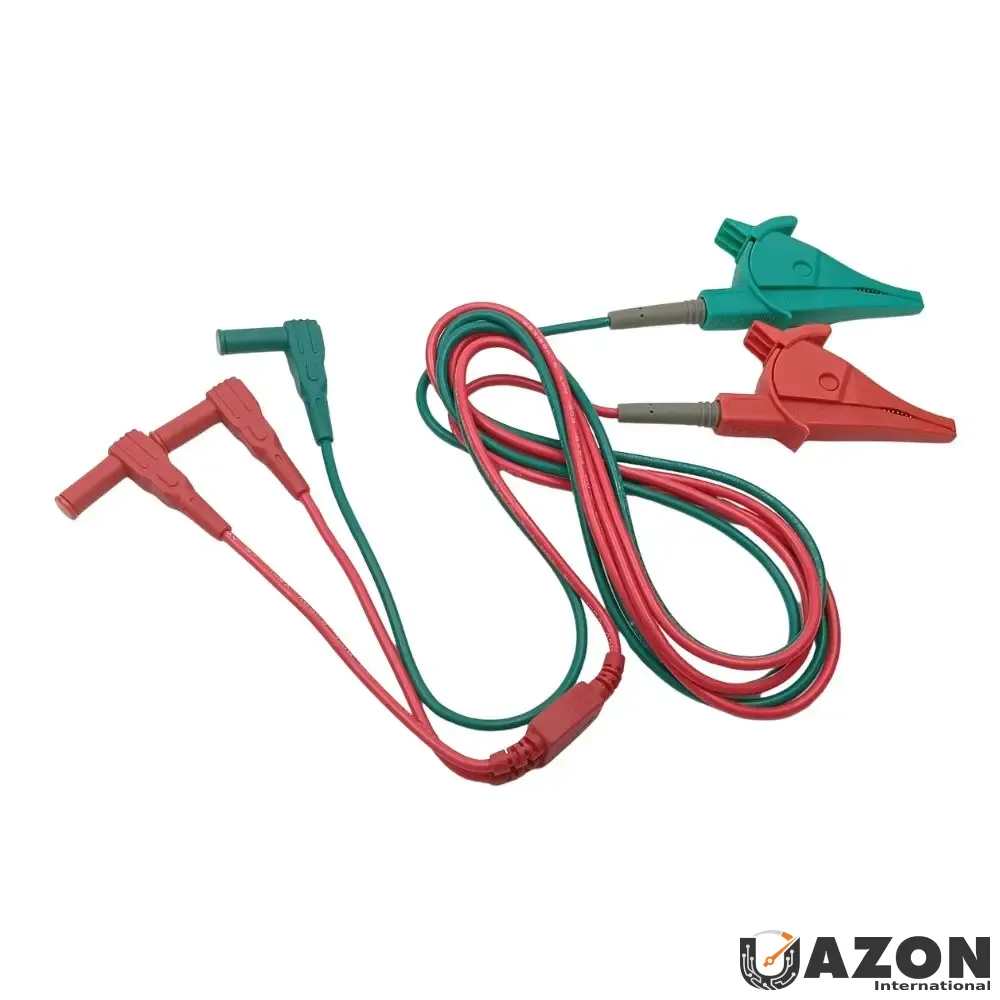

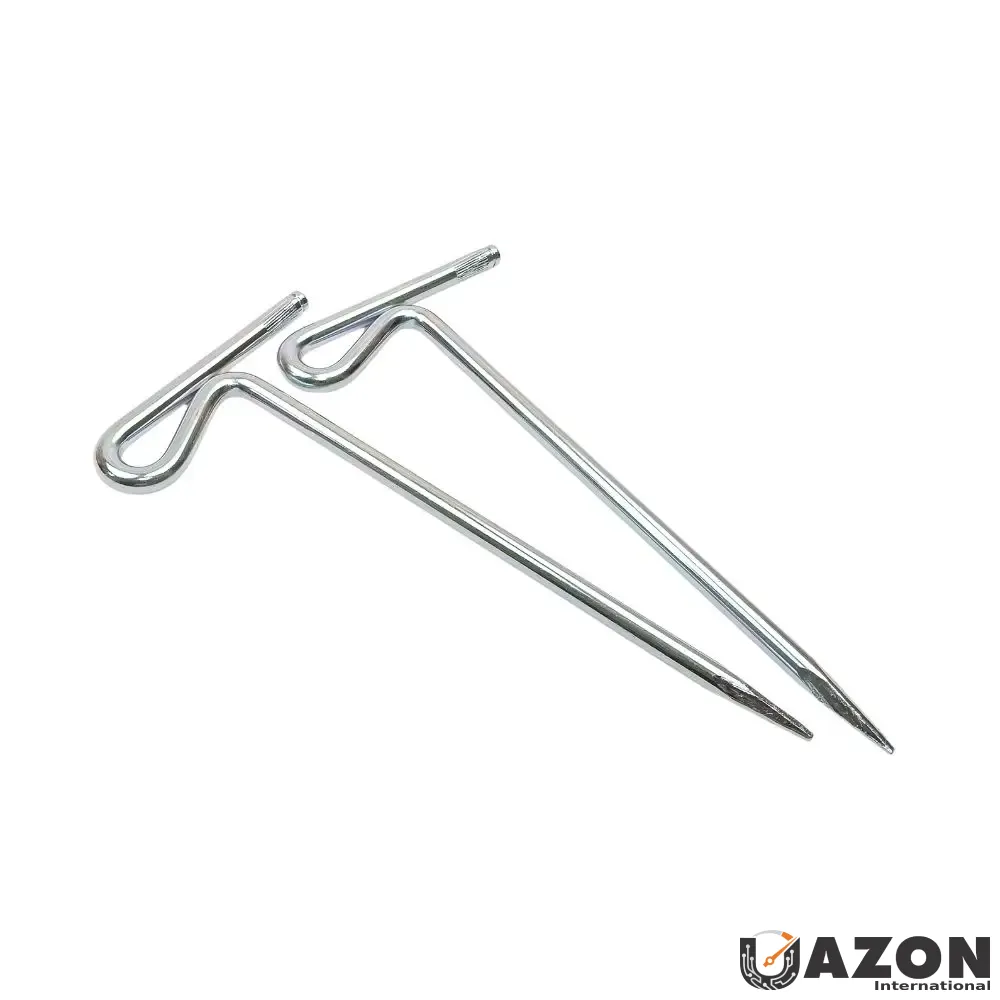

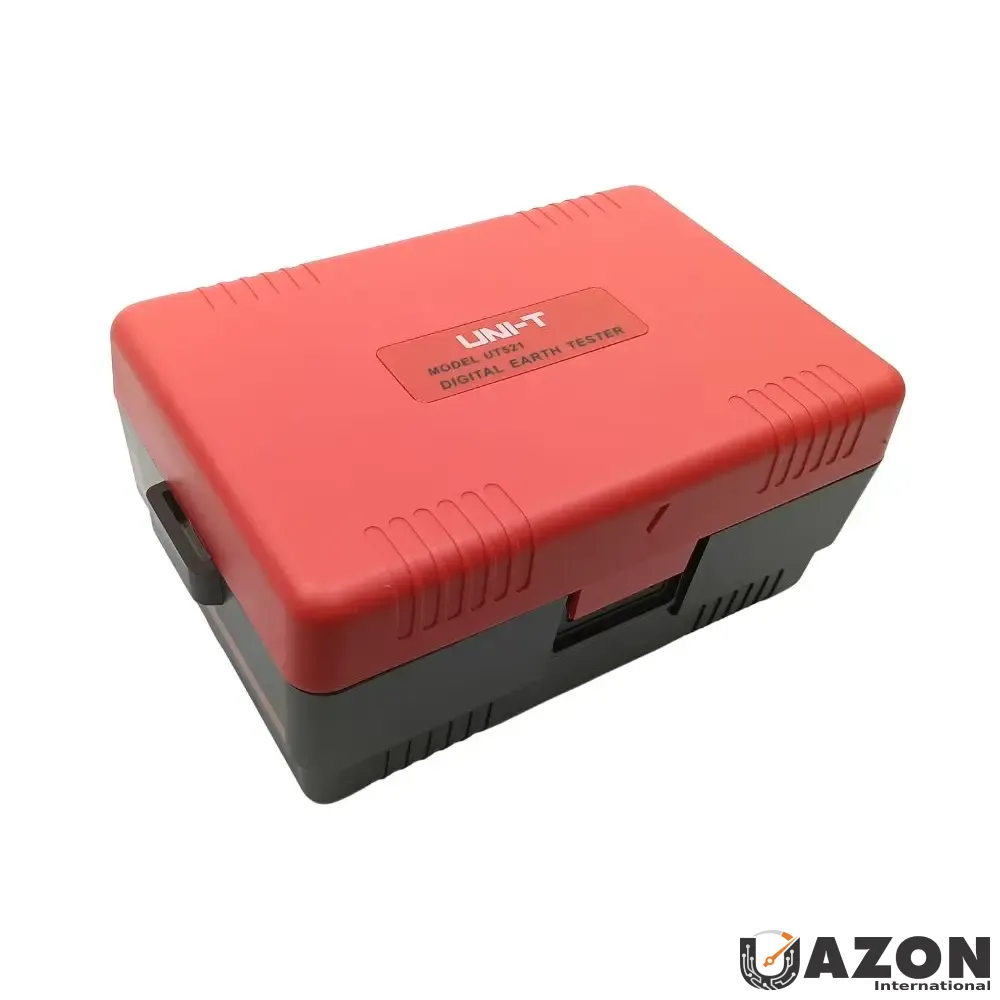

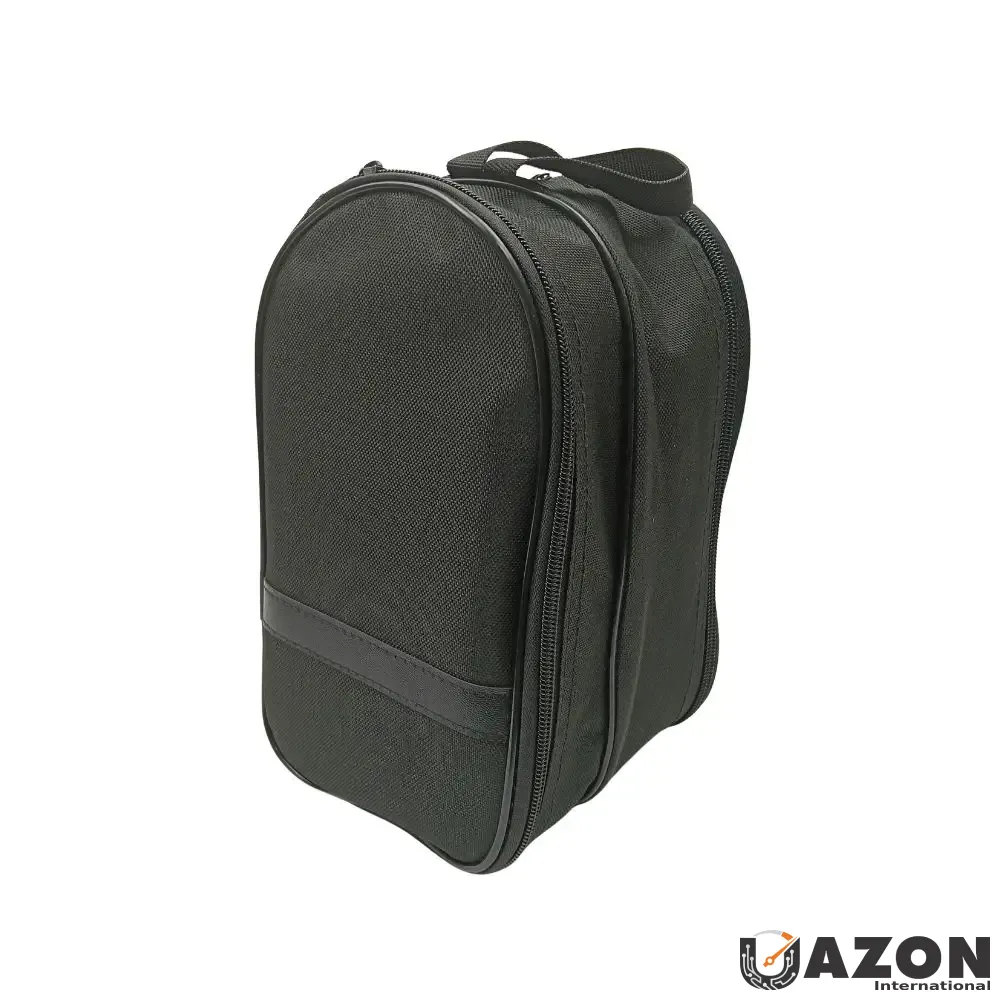

The comprehensive package includes everything needed for professional ground resistance testing. Six LR6 1.5V batteries provide portable power for extended field surveys. Simple test leads with alligator clips enable quick 2-wire measurements, while standard test leads with alligator clips support precise 3-wire testing. Earth spikes drive into soil for auxiliary electrode placement during 3-wire testing. The gallus accessory facilitates secure connections. Premium gift box packaging with protective carrying bag safeguards equipment during transport between job sites.
Technical Specifications UT521 Grounding Tester

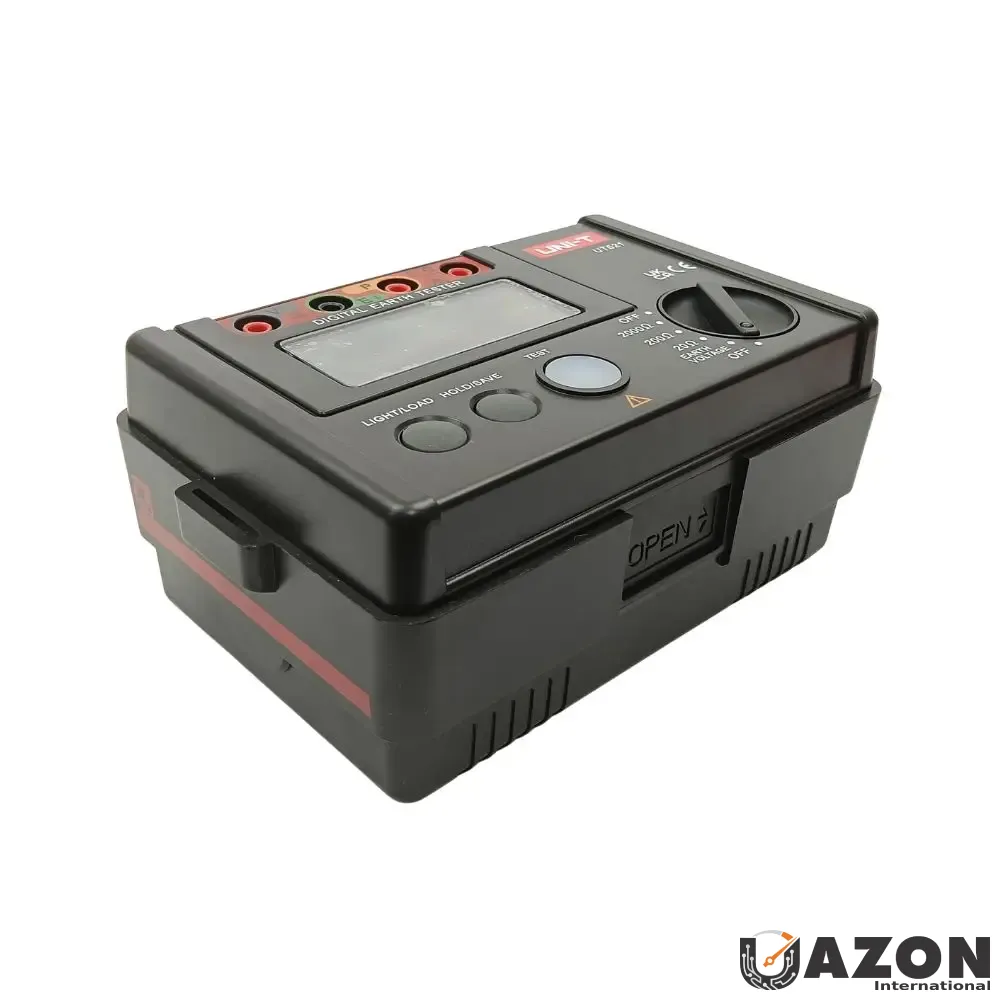

The robust construction measures 160mm x 100mm x 70.5mm with professional red and grey housing weighing 560g. Operating on six LR6 batteries ensures reliable performance in remote locations without AC power. The compact dimensions enable single-handed operation while the protective carrying bag provides convenient portability for electrical contractors and inspectors. The 8-piece standard carton with 0.056 CBM volume facilitates efficient logistics for bulk orders.
Why Buy UT521 Digital Earth Tester from UAZON.AE
UAZON.AE provides genuine UT521 Digital Earth Testers with complete factory accessories, comprehensive English manual, and full manufacturer warranty across the UAE. Our competitive pricing delivers professional ground testing equipment at exceptional value for electrical contractors, facility managers, and safety professionals. Fast shipping throughout Dubai, Abu Dhabi, Sharjah, and all Emirates ensures your earth tester arrives ready for immediate field deployment. Expert technical support assists with testing procedures and interpretation of results for UAE electrical safety standards compliance.
How to Test Ground Resistance with UT521 Earth Tester
For simple 2-wire testing, insert test leads into E and H/ES terminals, connect clips to the ground electrode and reference ground, select appropriate range, and read resistance. For precise 3-wire testing, drive auxiliary earth spikes into soil at specified distances from the electrode under test. Connect E terminal to ground electrode, H terminal to current spike, and ES terminal to potential spike. Select measurement range and read true ground resistance compensated for lead resistance. For AC earth voltage measurement, connect leads to E and ES terminals, select voltage function, and measure potential between ground and earth. Store up to 20 readings using data storage function for later documentation and analysis.
