Testo
Order Number: 0590 7703 02

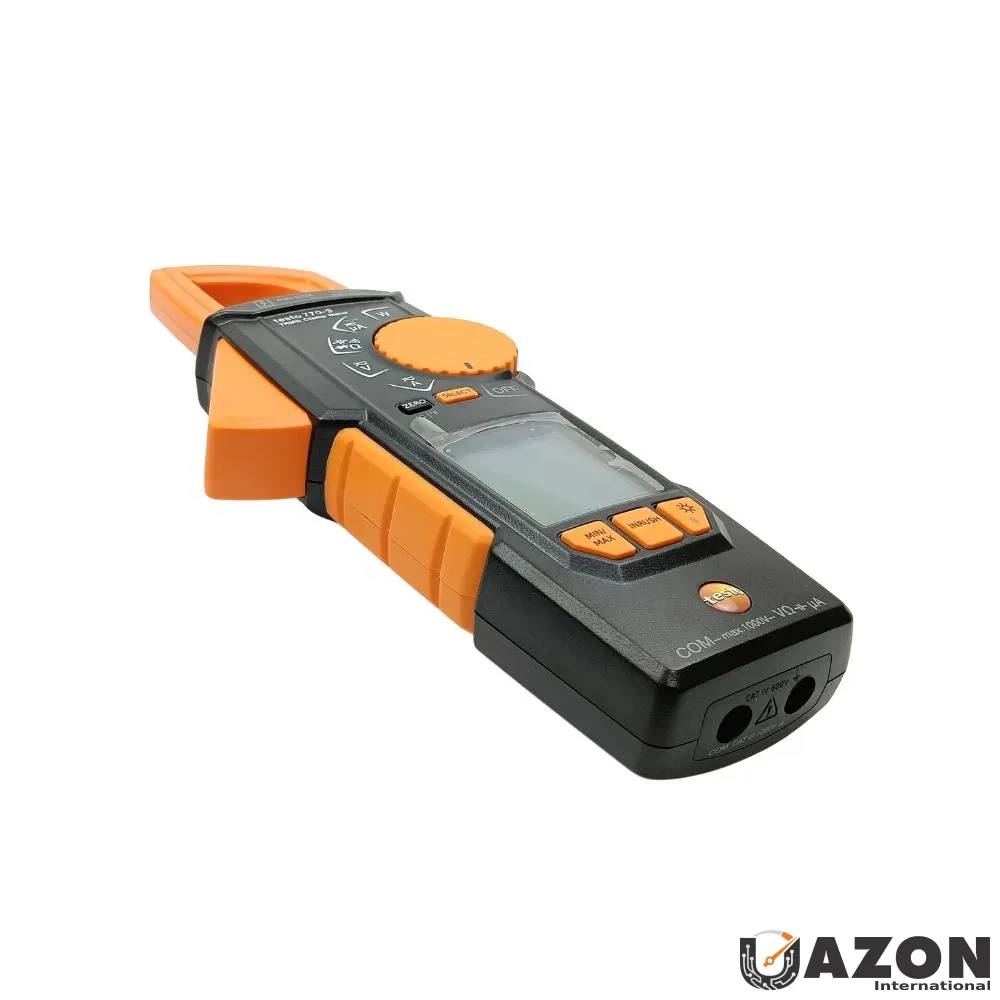

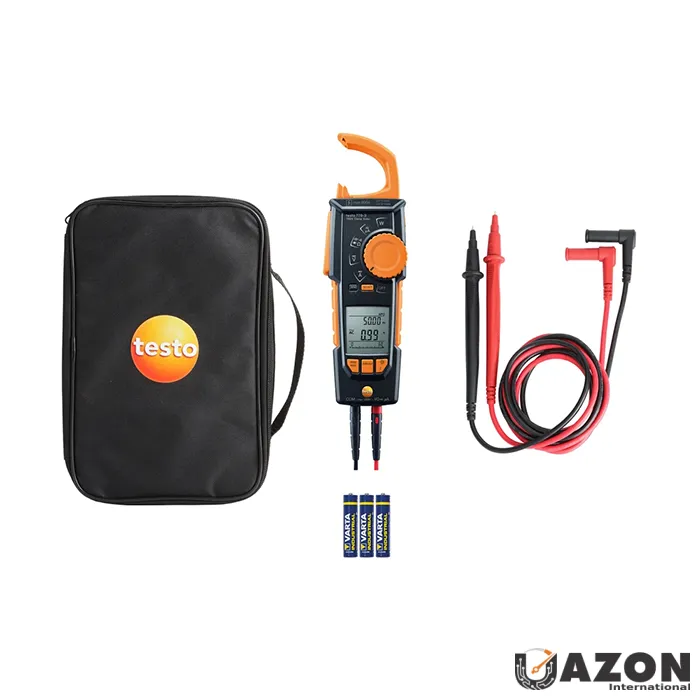

testo 770-3 - Clamp meter with Bluetooth

53 views
In stock
Delivery
  • Bluetooth clamp meter with app-based display and reporting workflow
  • Designed for non-contact friendly clamping on tight cable bundles
  • Supports engineering and service projects with clear measurement documentation
  • Available on uazon.ae for authorized buying and support
Added to compare list
Order above 500 AED = Free Delivery
Delivery by * within UAE. When you order in
This item will be delivered by .
Want it Tomorrow?
Select Click & Collect on checkout within the next
We are not Supporting COD Payments Terms Outside UAE
Secure Transaction
This item is eligible for return
Online support
24/7 Support
Original Products
quality guarantee
Fast Delivery
Fastest delivery ever!
Online payment
fast and safe
secure and live track
fast and safe
Description

About this model

testo 770-3 - Clamp meter with Bluetooth for Non-Contact, Fast Electrical Measurements

The testo 770-3 - Clamp meter with Bluetooth is built for dependable everyday troubleshooting and on-site verification—especially on tightly packed cables where non-contact clamping matters. With an advanced grab mechanism and Bluetooth connectivity to the testo Smart App, this authorized clamp meter helps you visualize measurement trends, store readings, and share results for clearer reporting in every project.

Available on uazon.ae through a retail hybrid buying experience, you can buy testo 770-3 - Clamp meter with Bluetooth with confidence and access practical service support. For distribiutor and engineering teams, it’s a reliable tool for faster documentation workflows and fewer measurement delays.

testo 770-3 - Clamp meter with Bluetooth Key Benefits (Bluetooth Clamp Meter)

  • Non-Contact Friendly Clamping for Tight Cable Bundles

Designed for demanding measurement tasks in tight spaces, the clamp arm can be fully retracted and positioned for practical handling—helping you grab cables accurately even in crowded cabinets.

  • Clear Readings on the Meter and in the testo Smart App

Measurement values are visible on the two-part display and also in the testo Smart App, where readings can be organized and exported for documentation. You can view measurement curves as graphs on your smartphone/tablet and send results directly in the report.

  • Ready for Daily Field Work: Reliable, Efficient, and Easy to Operate

The clamp meter streamlines common electrical checks using intelligent detection and automated selection to support smoother operation—so you spend more time analyzing and less time switching settings.

Applications for testo 770-3 - Clamp meter with Bluetooth (Electrical Troubleshooting)

  • On-site electrical installation checks and verification
  • Motor and feeder circuit troubleshooting using clamp current measurements
  • Panel diagnostics where cable access is limited
  • Maintenance rounds for quick trend checks and repeatable recordings
  • Energy monitoring support for engineering documentation
  • Service and commissioning measurements for structured project reports

testo 770-3 - Clamp meter with Bluetooth for Engineering & Service Reporting

  • Built for Real Project Deliverables

This Bluetooth-enabled clamp meter fits naturally into engineering workflows that require consistent measurement evidence. When you connect to the testo Smart App, you can capture, display, and communicate measurement results—supporting faster review cycles within your service and project documentation process.

Why Buy testo 770-3 - Clamp meter with Bluetooth from uazon.ae?

  • Authorized retail hybrid experience with purchase confidence through uazon.ae
  • Support-friendly setup for new users and teams adopting standardized test procedures
  • Ideal for distribiutor and service workflows that need consistent measurement reporting
  • Easy path to shop testo 770-3 - Clamp meter with Bluetooth and procurement planning for projects

If you’re searching for clamp tester price, uazon.ae helps you move from selection to checkout with a smoother buying experience for your engineering and service needs.


Specification
Technical Specifications
Temperature - TC Type K (NiCr-Ni)
Measuring range -20 to +500 °C
Accuracy ±1 °C (0 to +100 °C)
Resolution 0.2 °C
DC Voltage
Measuring range 1.0 to 1000.0 V
Resolution max. 1 mV
Accuracy ± (0.8 % of mv + 3 Digit)
AC Voltage
Measuring range 1.0 mV to 1000.0 V
Resolution max. 1 mV
Accuracy ± (1 % of mv + 3 Digit)
DC Current
Measuring range 0.01 to 600.0 A (clamp)
0.1 to 600.0 μA (measuring cables)
Resolution 0.1 (clamp)
0.1 (measuring cables)
Accuracy ± (2 % of mv + 5 Digit) (measuring cables)
± (2 % of mv + 5 Digit) (clamp)
AC Current
Measuring range 0.01 to 600.0 A (clamp)
0.1 to 600.0 μA (measuring cables)
Resolution 0.01 A (clamp)
0.1 μA (measuring cables)
Accuracy ± (2 % of mv + 5 Digit) (clamp)
± (1.5 % of mv + 5 Digit) (measuring cables)
Resistance
Resolution max. 0.01 Ohm
Measuring range 0.10 to 60.0 MOhm
Accuracy ± (1.5 % of mv + 3 Digit)
Capacitance
Resolution max. 0.01 nF
Measuring range 0.001 μF to 60000.00 μF
Accuracy ± (1.5 % of mv + 5 Digit)
Frequency
Resolution max. 0.1 Hz
Measuring range 0.00 Hz to -10 kHz
Accuracy ± (1 % of mv + 1 Digit)
Active Power
Measuring range 0.1 W to 600 kW
Accuracy ± (5 % of mv + 5 Digit)
Resolution 0.1 W
Reactive Power
Measuring range 0.1 to 600.0 kvar
Accuracy ± (10 % of mv + 5 Digit)
Resolution 0.1 var
Apparent Power
Measuring range 0.1 VA to 600.0 kVA
Accuracy ± 1 Digit
Resolution 0.1 VA
Direct Current DC Voltage (Power)
Measuring range 0.1 W to 600.0 kW
Accuracy ± 1 Digit
Resolution max. 0.1 W
Power Factor
Measuring range -1.00 to +1.00
Accuracy ± (10 % of mv + 5 Digit)
Resolution 0.01
General Technical Data
Operating humidity 0 to 80.0 %RH
Weight 378 g
Dimensions 249 x 96 x 43 mm
Operating temperature -10 to +50 °C
Connectable probes 1 x temperature probe (adapter required for type K thermocouples)
Product colour Black
System requirements iOS 11.0+ / Android 6.0+ / Bluetooth 4.0
Standards EN 61326-1; EN 61010-2-032; EN 61140
Battery type 3 AAA micro batteries
Display size 2 lines
Display type LCD (Liquid Crystal Display)
Interface 2 measuring jacks
Storage temperature -15 to +60 °C
Overvoltage Category CAT IV 600V; CAT III 1000V
Authorizations CSA; CE
Internal resistance 11 MOhm (AC / DC)
Instrument Measurement Functions
Diode test Yes
Continuity testing Yes
Display lighting Yes
Hold Yes
Min/Max Yes
Power Measurement Yes
Temperature measurement with adapter Yes
True RMS Yes
Inrush current measurement Yes
Bluetooth Yes
Display (counts) 6,000
Automatic parameter detection Yes
μA current measuring range Yes
Downloads
FAQs & How To

FAQs

It’s a Bluetooth clamp meter for practical electrical measurements and troubleshooting, designed for efficient readings and project documentation through the testo Smart App.
Yes. It connects via Bluetooth to the testo Smart App so you can view measurement curves and organize results for reporting.
Yes. Its clamp design supports reliable handling in tight spaces and makes non-contact friendly measurements easier on crowded cable bundles.
Yes. The app workflow helps you present readings clearly, display trends, and send measurement results directly in the report process.
Contact uazon.ae through the store; our team can help with setup guidance and the app workflow for your measurement process.

How To

Set up and start measuring with the Bluetooth clamp meter, then view and share results in the testo Smart App.

Estimated Time: PT15M

Charge or power on the clamp meter and install/open the testo Smart App on your phone or tablet.
Enable Bluetooth on your device, then pair with testo 770-3 in the testo Smart App.
Position the clamp on the cable and perform the measurement while viewing the reading on the meter display.
Review results in the app, check the measurement curve if available, then save and send the readings in your report.
