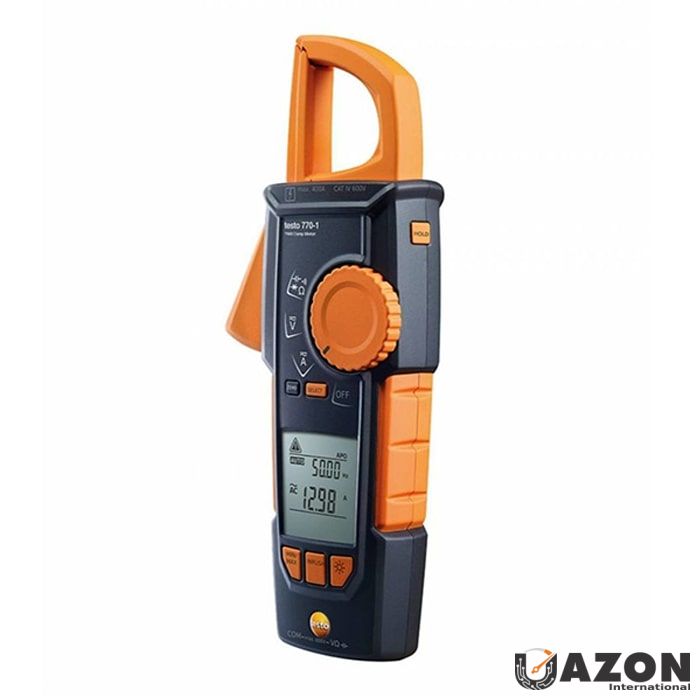

Testo 770-1 Clamp Meter: Precision and Versatility for Demanding Environments
Order-Nr. 0590 7701
The Testo 770-1 clamp meter tester is engineered to help professionals cope in any application environment, regardless of spatial constraints. In modern industrial settings, working within tight switching cabinets or crowded cable trays is a common challenge. This instrument addresses that issue directly with a unique design that prioritizes accessibility. The movable pincer arm can be fully retracted into the instrument body, allowing users to reach deeply into recessed compartments. This feature transforms the tool into a precision hook, enabling you to grasp tightly packed cables without damaging insulation or disrupting adjacent connections. By combining this mechanical innovation with high-precision measurement capabilities, the Testo 770-1 delivers a level of convenience in tight spots that was previously unattainable with standard clamp meters.
Technical Features and Field Applications of the Testo 770-1
When selecting a clamp meter for industrial maintenance or high-end residential projects, reliability and ease of use are paramount. The Testo 770-1 clamp meter features an operation system that is easier and more reliable than legacy models. It automatically detects and selects AC/DC measurements, minimizing the risk of user error during critical diagnostics. Beyond basic voltage and current, it measures resistance, continuity, diode functionality, and capacitance. Furthermore, the instrument captures starting currents, a vital metric for assessing motor health. The dual-line display presents readings clearly and distinctly, allowing for simultaneous viewing of primary and secondary measurements, which streamlines the data collection process on busy job sites.
Built specifically for maintenance, commissioning, and troubleshooting tasks, the Testo 770-1 covers core electrical ranges while reducing the need for multiple tools. In the field, efficiency is measured by how few steps it takes to complete a task. This clamp meter measures faster with fewer steps due to its auto AC/DC detection and clear dual-line display. The patented slide and hook jaw design isolates a single conductor safely, which is essential when working in tightly packed cabinets where accidental short circuits can occur. Additionally, the device captures inrush currents and True-RMS values, ensuring accurate readings on non-linear loads such as variable frequency drives and LED lighting systems. This comprehensive functionality makes the Testo 770-1 an indispensable tool for modern electrical diagnostics.
Buy Testo 770-1 Clamp Meter: Operational Benefits and Safety Standards
Professionals looking to buy the Testo 770-1 clamp meter will find that its specifications translate directly to real-world efficiency. The everyday coverage of this instrument includes 400 A AC/DC current measurements, 600 V AC/DC voltage measurements, resistance up to 40 MΩ, capacitance up to 100 µF, and frequency measurements up to 9.999 kHz. These ranges cover the vast majority of troubleshooting scenarios encountered in commercial and industrial facilities. The True-RMS capability ensures that measurements on distorted waveforms are accurate, preventing misdiagnosis of power quality issues. When comparing the Testo 770-1 price, it is essential to consider the value of time saved on site; the ability to switch between functions automatically reduces downtime and increases productivity.

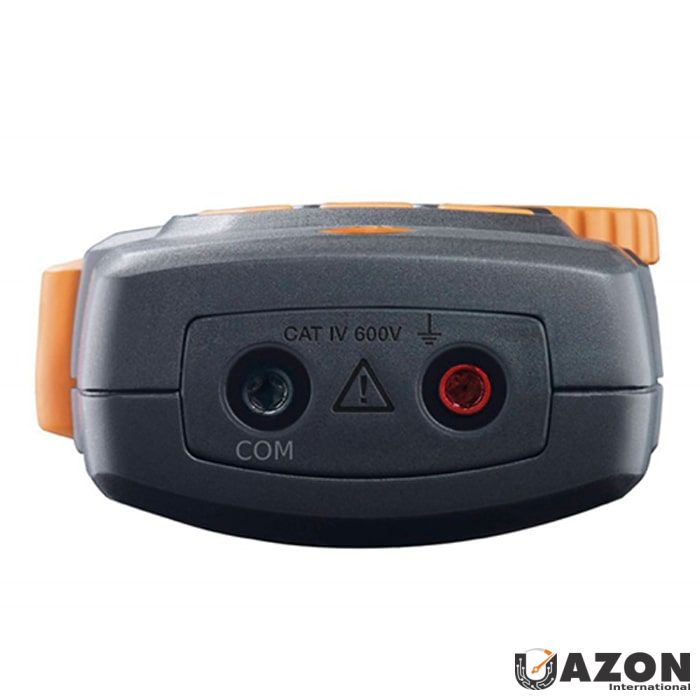

Safety is a non-negotiable aspect of electrical testing, and the Testo 770-1 is designed to meet rigorous standards. The instrument is rated for CAT IV 600 V and CAT III 1000 V, making it suitable for direct connection to low-voltage mains and equipment in fixed installations. This high level of protection allows electricians to work confidently on distribution boards, circuit breakers, and wiring installations. When you buy the Testo 770-1, you are investing in a tool that not only enhances measurement accuracy but also prioritizes user safety in hazardous environments. The robust build quality ensures durability on construction sites and in industrial plants, providing a reliable solution for daily use.
Technical Specifications and Measurement Capabilities
Understanding the full scope of the Testo 770-1 specifications is key to appreciating its versatility. The clamp meter is designed to handle a wide array of electrical parameters without requiring external adapters. The inclusion of inrush current measurement allows users to diagnose motor starting issues and transient spikes that can damage sensitive equipment. The dual-line display is a critical feature for efficiency, showing two measured values simultaneously, such as voltage and frequency or current and temperature (with optional probe). This reduces the need to toggle between screens, allowing for faster data interpretation during complex diagnostics.
The instrument's ability to measure capacitance is particularly useful for motor run capacitor checks and power factor correction assessments.
