Why Faster, Safer Voltage Detection Matters
Live-conductor mistakes still account for a large share of industrial electrical accidents. A pen-style, non-contact instrument that instantly tells you “voltage present” or “circuit dead” lets technicians isolate panels, swap motors, or add sensors without opening junction boxes. The Testo 745 (Order-Nr. 0590 7450) was engineered for that exact moment of truth: a quick green/red decision that keeps projects on schedule and workers out of harm’s way.
Buy Testo 745 Non-Contact Voltage Tester at the Best Price
Global buyers looking for a Testo 745 price that matches an industrial procurement budget typically compare MME-AE against local resellers. Because the unit is import-regulated, always source from an authorized Testo partner; that’s the fastest route to valid calibration certificates, firmware updates, and the two-year factory warranty.
What Separates Testo 745 from Generic Pens
Many low-cost detectors trigger on static, cable noise, or high-frequency bursts from variable-frequency drives. The result is a chronic false-beep that teaches installers to ignore the alarm. Testo designers built a selectable filter network directly into the 745’s tip, cutting out RF above the 50/60 Hz band you actually care about.
Technical Features and Field Applications of the Testo 745 (0590 7450)

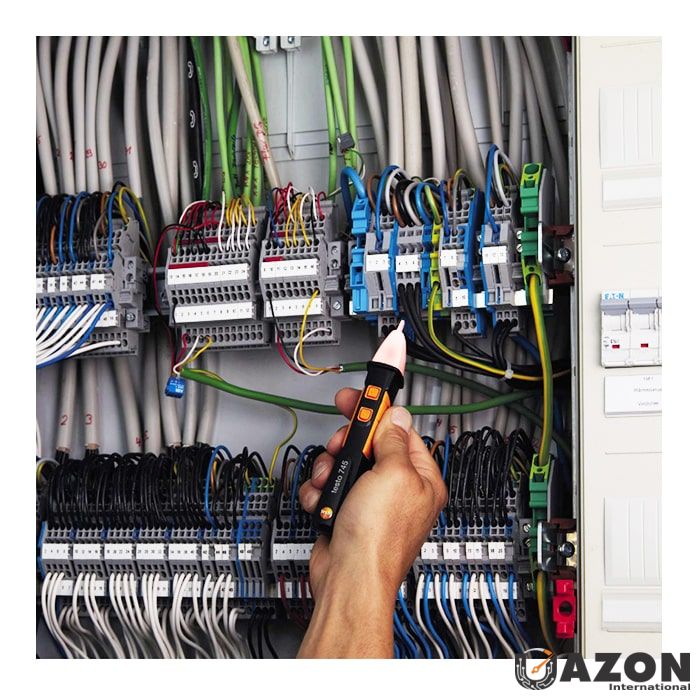

Its core competence is detecting alternating potentials from 12 V to 1,000 V without metallic contact. Two sensitivity stages let you approach energized bus bars in crowded cabinets without the chirp turning into a constant scream.
- Stage 1: Phase-sequence checks—confirm every leg of a three-phase feed before closing a motor starter.
- Stage 2: Voltage-indication mode—validate de-energization of lighting circuits up to 1,000 V before replacing ballasts.
- Industry-leading IP 67 sealing—wash down after dusty conduit work without fogged optics or failure.
- White LED torch—maintains both hands free in ceiling voids or behind control panels.
- Tip protector doubles as a stable 19 mm spacer, keeping you the calibrated distance from conductors.
How the IP 67 Rating Saves Downtime Costs of 0590 7450
A blown detector mid-project forces electricians to revert to time-consuming multimeter tests and extra lock-out steps. The 745 survives 30 min immersion and fine cement dust because every seam uses twin silicone O-rings and ultrasonic welding. That translates to fewer replacement orders and stable cost forecasting for MRO managers.
User Workflow: Two-Stage Verification in 15 Seconds

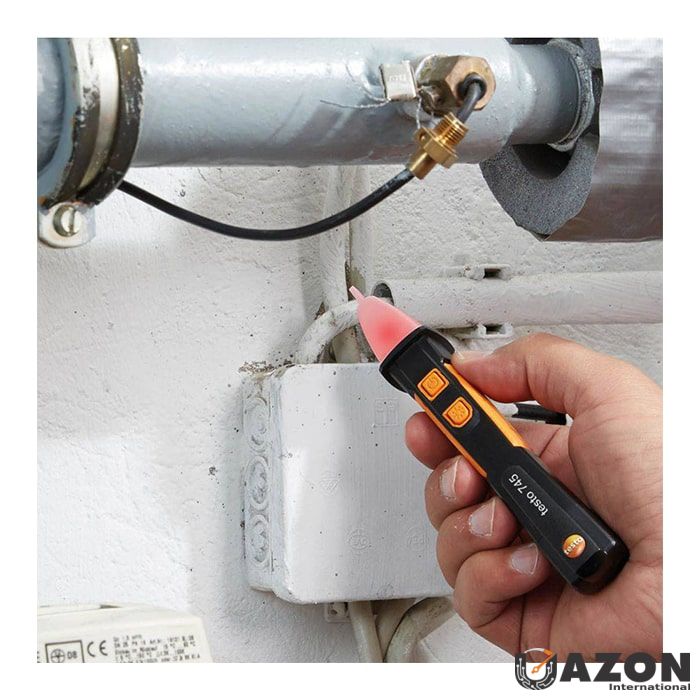

- Select Stage 1, approach the cable jacket starting 10 cm out; a slow-flash red LED shows you’re nearing live potential.
- Slide the tactile switch to Stage 2; if the LED turns solid red and the buzzer sounds continuous, the circuit is hot. If only green pulses, the line is safe to open.
Because readings are non-contact, you can scan tray after tray without stripping insulation, cutting troubleshooting time by half.
Portable Ergonomics for Service Contractors
At 155 mm length and 52 g, the Testo 745 fits a shirt pocket. The pocket clip is molded from glass-fiber reinforced nylon; it won’t shear after months of rooftop climbs. Flat-faced tail cap lets you stand the unit upright on a panel door while you jot down circuit IDs.
Compliance, Calibration, and Warranty
The instrument meets EN 61243-3, the non-contact voltage detector standard referenced by OSHA 1910.335. A calibration certificate ships from Testo’s German lab; re-cal cycle is 12 months. An auto self-test activates each time you unlock the selector, confirming the buzzer, batteries, and filter logic before each use.
Typical Buyers and How They Deploy It
- Facility managers—encode 745 into LOTO (Lock-Out-Tag-Out) kits so every approved worker owns a detector.
- HVAC teams—confirm that chiller control lines are de-energized before splicing new sensors onto the compressor starter.
- Panel builders—perform bedside voltage presence tests before integrating PLCs, reducing arc-flash label requirements.
- Solar installers—verify string voltage on roof combiner boxes without exposing test leads to moisture.
Accessories That Extend the Value
You can add an optional double-holster belt pouch (Testo 055
