Testo 6651 Temperature/Humidity Transmitter

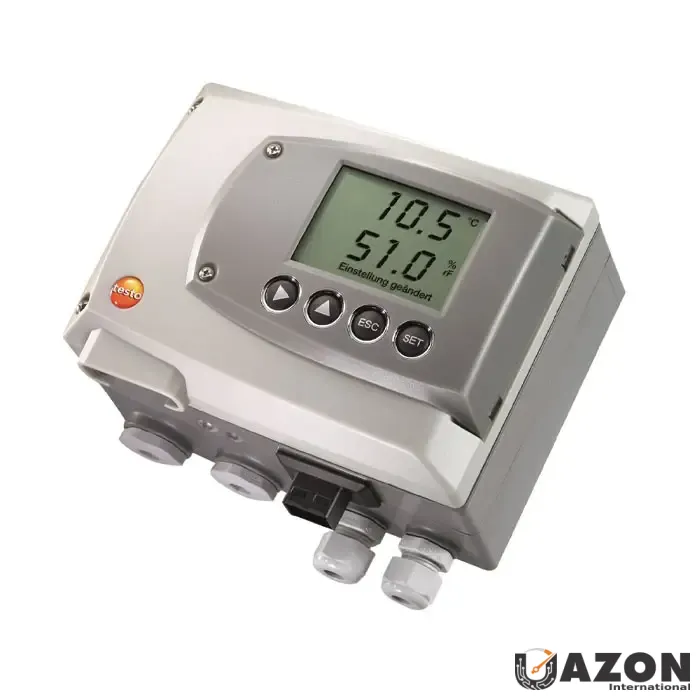

Testo 6651 – Temperature/Humidity Transmitter

The Testo 6651 transmitter is engineered for demanding measuring tasks where precision and reliability are non-negotiable. When paired with the compatible testo 660x probe series, this transmitter excels in managing exceptionally challenging measurement scenarios within air conditioning technology and a wide variety of other industrial applications. Whether you are overseeing a large-scale HVAC system or monitoring environmental conditions in a specialized facility, the Testo 6651 provides the robust performance required for critical data acquisition.

Technical Features and Field Applications of the Testo 6651

The Testo 6651 temperature and humidity transmitter is designed to bridge the gap between complex industrial requirements and user-friendly operation. This device is not just a sensor; it is a comprehensive monitoring solution that adapts to the specific needs of your facility. With a focus on durability and versatility, the transmitter supports multiple output signals and communication options, making it a prime choice for modern building automation and process control. Understanding the technical specifications is essential for appreciating how this device delivers consistent value in real-world environments.

• Humidity Measurement Range: 0 to 100 %RH, offering full-scale coverage for saturated and dry environments.
• Supported Units: Relative humidity %RH, °Ctd, °Ftd, and g/m³, allowing for versatile data interpretation.
• Temperature Measurement Range: Dependent on the specific probe used (testo 660x series), ensuring tailored accuracy for various applications.
• Channel Configuration: 2 channels, enabling simultaneous monitoring of multiple parameters or locations.
• Output Signal Options: 0/4 to 20 mA (2-wire/4-wire) and 0 to 1/5/10 V (4-wire), providing flexible integration with existing control systems.
• Network Connectivity: Optional Ethernet module can be fitted as an intermediary layer for enhanced data accessibility.
• Voltage Supply Specifications: 2-wire operation at 24 VDC ±10 %, or 4-wire operation at 20 to 30 VAC/DC.
• Power Consumption: Maximum current draw of 300 mA, ensuring efficient energy usage.
• Durable Construction: High-quality plastic housing designed to withstand industrial environments.
• Compact Dimensions: 122 x 162 x 77 mm (without probe), allowing for installation in space-constrained areas.
• Lightweight Design: Weighs 0.675 kg (without probe and Ethernet module), simplifying mounting and handling.
• Protection Class: IP65 rating, offering complete protection against dust and water jets.
• EMC Compliance: Adheres to standard 2004/108/EG for electromagnetic compatibility.

Precision Humidity and Temperature Monitoring for HVAC Systems

When it comes to air quality and climate control, precision is paramount. The Testo 6651 transmitter offers exceptional accuracy in measuring both humidity and temperature, which are critical factors in maintaining comfortable and safe indoor environments. By utilizing the testo 660x probe series, users can achieve highly specific readings that are essential for optimizing HVAC performance. This level of precision helps in preventing issues such as mold growth, condensation, and equipment corrosion, all of which can result from improper humidity control.

For facility managers and HVAC technicians, the ability to trust the data from a single device across multiple zones is invaluable. The Testo 6651 supports two independent channels, allowing for the monitoring of distinct areas or parameters without the need for additional hardware. This dual-channel capability streamlines installation and reduces overall system complexity, making it an efficient choice for large-scale projects. When you buy the Testo 6651, you invest in a solution that scales with your operational demands.

Flexible Output and Integration Capabilities

Integration with existing building management systems (BMS) is a key consideration for any industrial sensor. The Testo 6651 addresses this need with a variety of output options, including standard 0/4 to 20 mA signals for 2-wire or 4-wire configurations, as well as 0 to 1/5/10 V outputs for 4-wire setups.
