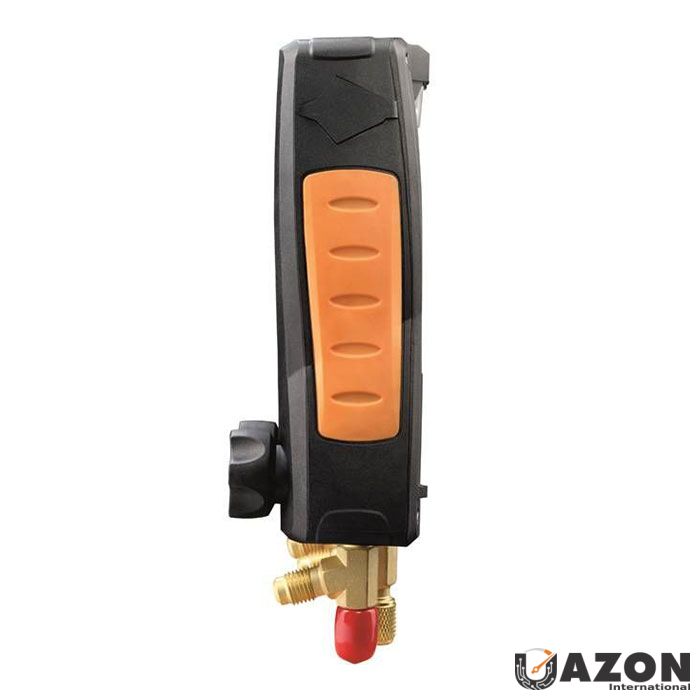

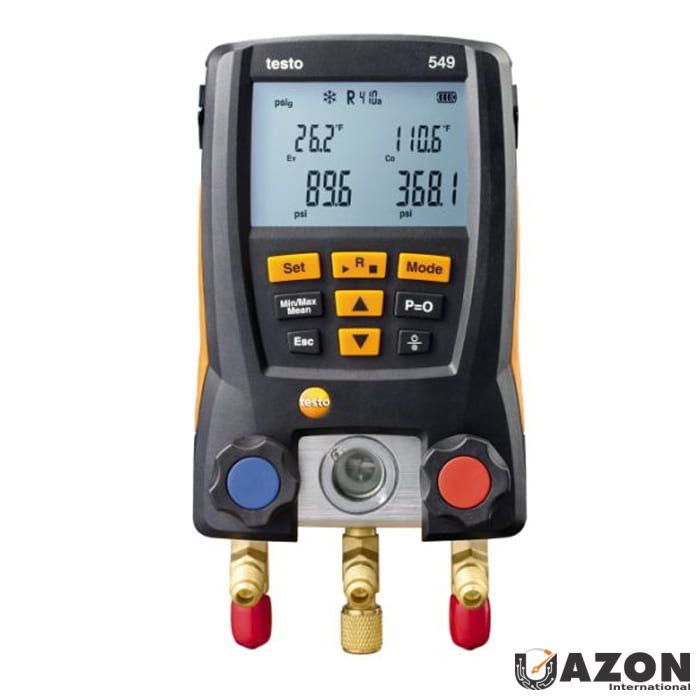

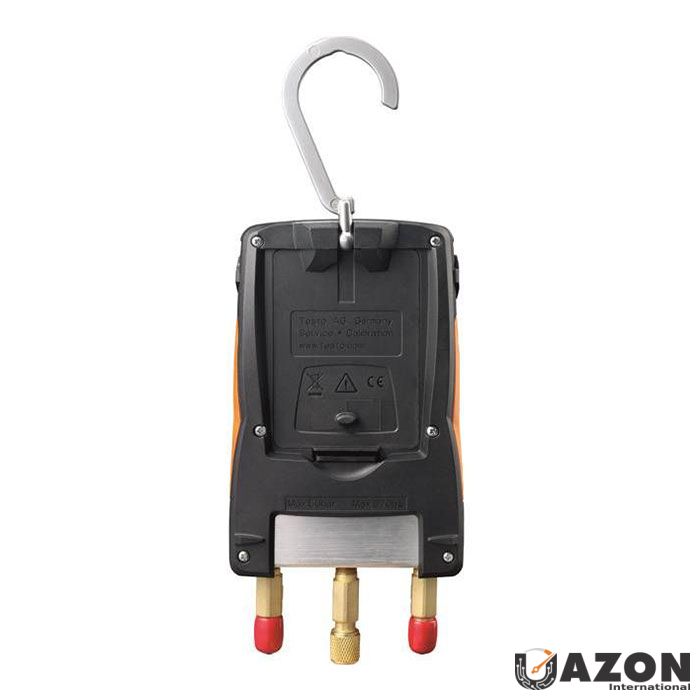

Testo 549 Digital Manifold Gauge

Why Upgrade to the Testo 549 Digital Manifold?

Order-Nr. 0560 0550

When carrying out maintenance or installation work on refrigeration systems and heat pumps, technicians are increasingly noticing that the use of analog manifolds is laborious and time-consuming. The traditional method requires manual reading, separate calculations, and cross-referencing pressure-temperature charts, which introduces delays and potential errors. If your current workflow feels cumbersome, the Testo 549, our entry-level digital manifold, is the perfect choice for you. This instrument bridges the gap between basic manual tools and advanced diagnostic systems, offering a streamlined solution for everyday fieldwork. For those looking to optimize their toolkit without breaking the budget, the Testo 549 Price offers exceptional value for its feature set.

Technical Features and Field Applications of the Testo 549

The Testo 549 is a 2-way manifold designed to handle the demands of modern HVAC-R service. It eliminates the guesswork associated with analog gauges by providing real-time data directly to the technician. Whether you are servicing residential air conditioners or commercial heat pumps, this manifold adapts to your needs. The instrument comes pre-loaded with 60 refrigerants, ensuring compatibility with the most common systems found in the field. When you decide to Buy Testo 549, you are investing in a tool that simplifies complex processes while maintaining high accuracy.

• Two temperature-compensated pressure sensors ensure fast, precise measurement of high and low pressure. These sensors automatically calculate the evaporating and condensing temperature, removing the need for manual conversion tables and reducing the time spent on each service call.
• Two connections for external temperature probes allow for comprehensive system analysis. With temperature probes attached (optional), the digital manifold calculates superheating and subcooling simultaneously and in real time. This capability means you can do away with manual comparisons, which are prone to error, and obtain fast, accurate results instantly.
• Leakage test of refrigeration systems is integrated directly into the manifold. The device can carry out a temperature-compensated leakage test for rough tightness testing. For this, the initial system pressure is compared with the system pressure at the end of the measurement, so that the difference (if there is one) can be displayed immediately, alerting you to potential issues.
• Standard refrigerant compatibility is a core benefit. The 60 most common refrigerants are stored in the instrument as standard, allowing technicians to switch between jobs without manually selecting refrigerant data, which streamlines the workflow significantly.

Temperature Measurement Capabilities

Accurate temperature monitoring is critical for verifying system performance and diagnosing issues. The Testo 549 offers a robust range for temperature sensing, utilizing NTC probes for high reliability. This capability ensures that technicians can monitor condenser and evaporator temperatures with precision, directly impacting the efficiency of the troubleshooting process. When you Buy Testo 549, you gain access to temperature specifications that meet professional standards.

• Measuring range: -50 to +150 °C
• Accuracy: ±0.5 °C
• Resolution: 0.1 °C
• Probe connection: 2 x plug-in (NTC)

Pressure and Vacuum Measurement Specifications

Precision in pressure measurement is the backbone of refrigerant diagnostics. The Testo 549 utilizes two temperature-compensated pressure sensors to deliver reliable data on both the high and low sides of the system. The vacuum measurement feature is essential for evacuation processes before charging. Understanding these specifications helps in assessing the Testo 549 Price relative to its performance capabilities compared to analog alternatives.

• Pressure measuring range: -1 to +60 bar
• Pressure accuracy: ±0.5 % fs
• Pressure resolution: 0.01 bar
• Probe connection: 3 x 7/16″ – UNF
• Overload rel. (high pressure): 65 bar
• Vacuum measuring range: -1 to 0 bar

Workflow Efficiency and Usability

The design of the Testo 549 focuses on reducing the time spent on each job. By integrating temperature and pressure measurements into a single device, technicians can perform simultaneous calculations for superheating and subcooling. This dual functionality replaces the need for carrying multiple instruments and manually correlating data. The interface is intuitive, allowing for quick navigation between modes, which is crucial when working in tight spaces or adverse weather conditions. For businesses looking to standardize their equipment, the availability of the Testo 549 ensures a uniform toolset across the team.

Furthermore, the automatic calculation of evaporating and condensing temperatures simplifies the diagnostic process. Instead of interpreting complex graphs, the manifold displays the necessary values directly. This reduction in manual steps minimizes the risk of human error, leading to more accurate diagnoses and fewer callbacks. The ability to perform a temperature-compensated leakage test adds another layer of efficiency, allowing technicians to verify system integrity without additional bulky equipment.

Compatibility and Refrigerant Support

Modern HVAC systems utilize a wide variety of refrigerants, from traditional R-22 to newer HFO blends. The Testo 549 addresses this diversity by supporting 60 standard refrigerants. This extensive library ensures that technicians are prepared for almost any service call they encounter. The instrument automatically applies the correct pressure-temperature relationships for the selected refrigerant, eliminating the need for external reference materials. This feature is particularly valuable for contractors who service a broad range of equipment across different sectors.

When considering the Testo 549 Price, the breadth of refrigerant support is a significant factor. The cost of manually updating reference charts and the time saved by automatic selection contribute to a rapid return on investment. By choosing to Buy Testo 549, service providers ensure their staff has access to up-to-date data without the need for constant manual updates or additional software subscriptions.

Build Quality and Field Durability

Field instruments must withstand the rigors of daily transport and use. The Testo 549 is constructed to meet these demands, featuring a robust housing that protects the internal sensors. The connections are designed for secure attachment to service valves, minimizing the risk of leaks during measurement. The clarity of the display ensures readability in various lighting conditions, from bright sunlight to dimly lit mechanical rooms.

The inclusion of three 7/16" UNF probe connections allows for versatile setup configurations. Technicians can connect high and low-side hoses along with an external temperature probe without swapping connections mid-job. This design consideration streamlines the setup process, allowing the technician to focus on the task at hand rather than managing equipment logistics. The overload protection on the high-pressure side (65 bar) adds a margin of safety, protecting the instrument from accidental pressure spikes.

Real-World Benefits for Technicians

In practical terms, the transition from analog to digital with the Testo 549 transforms the daily routine of a technician. The speed of measurement means more systems can be serviced in a single day, increasing productivity and revenue. The accuracy of the digital sensors provides confidence in the readings, reducing the time spent double-checking results. For example, calculating superheating manually is a multi-step process involving temperature and pressure readings plus mental math; the Testo 549 automates this entirely, displaying the result instantly.

Leak testing is another area where the manifold shines. Traditional methods often require separate leak detection equipment and extended observation periods. The Testo 549's integrated leakage test compares system pressure over a set period, displaying the differential immediately. This rapid feedback allows for quicker decision-making on whether a system holds charge or requires further inspection. For contractors aiming to provide top-tier service, the ability to offer such precise diagnostics is a competitive advantage.

Investment Value and Purchase Considerations

When evaluating the cost of HVAC tools, it is essential to consider the long-term value rather than just the upfront expense. The Testo 549 Price reflects its status as an entry-level digital manifold, yet it retains the core features necessary for professional work. By eliminating the need for separate digital thermometers and pressure gauges, the manifold consolidates your tool inventory. This consolidation reduces the total cost of ownership over time.

For those ready to upgrade their equipment, the decision to Buy Testo 549 is straightforward. It offers a balance of functionality, durability, and ease of use that analog manifolds cannot match. The instrument is designed for immediate integration into existing workflows, requiring minimal training to operate effectively. Whether you are a solo contractor or managing a large service team, standardizing on this model ensures consistent data quality across all service calls.

The Testo 549 stands as a reliable entry point into digital refrigerant management. It combines essential measurement capabilities with user-friendly features, making it an indispensable tool for modern HVAC-R maintenance. By focusing on accuracy, efficiency, and compatibility, it addresses the pain points of traditional analog methods. For those seeking the best price and performance balance in a digital manifold, the Testo 549 represents a smart, future-proof investment for your business.
