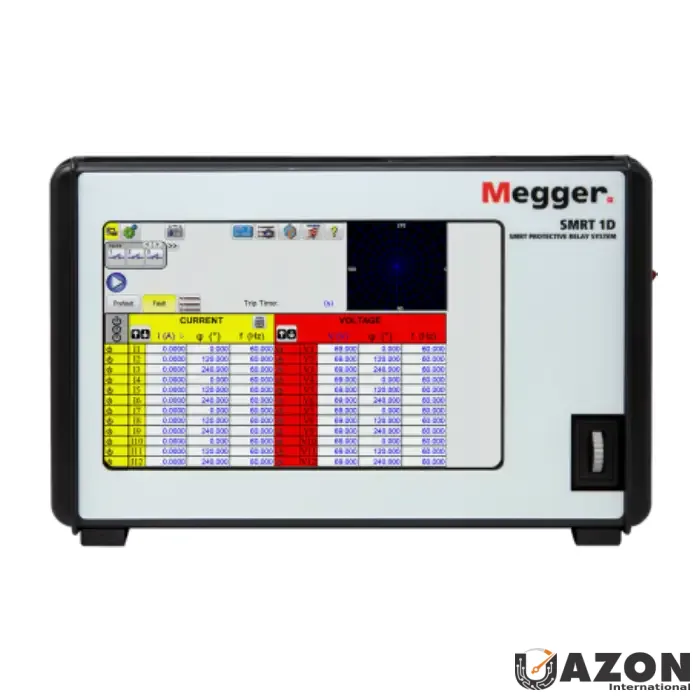

Technical Features and Field Applications of the Megger SMRT1D
The Megger SMRT1D represents a significant advancement in portable relay testing technology, offering a compact yet powerful solution for modern power system protection. As a single-phase relay test system, it is engineered to meet the rigorous demands of field engineers and maintenance teams who require reliability and precision in a portable form factor. This device eliminates the traditional trade-off between portability and performance, delivering high-current output capabilities that are typically found in larger, bulkier test sets. By integrating the proven SMRT series platform into a single-phase unit, Megger has created an instrument that is both versatile and efficient for a wide array of diagnostic scenarios. For professionals seeking to streamline their testing workflows, the ability to buy the Megger SMRT1D provides access to a tool that simplifies complex relay evaluations without compromising on accuracy or power.
Core Design and User Interface Advantages
The physical and operational design of the Megger SMRT1D focuses heavily on field usability and durability. Its rugged, lightweight construction ensures that it can withstand the harsh conditions of electrical substations and industrial sites while remaining easy to transport between job locations. A standout feature of this system is its flexible control interface, which allows operators to choose between standalone use and PC-based operation. The standalone capability is powered by Megger’s Smart Touch View Interface (STVI), a large, color touchscreen that provides an intuitive menu-driven experience for test setup and execution. Alternatively, for users who prefer the detailed analysis and reporting features of a computer, the SMRT1D can be connected to a PC running the Advanced Visual Testing (AVTS) software. This dual-mode operation ensures that the device adapts to various workflow preferences, enhancing its value proposition for teams with diverse technical requirements. When evaluating the Megger SMRT1D price, it is important to consider the cost savings associated with its comprehensive software and interface capabilities.
High-Precision Output and Measurement Capabilities
At the heart of the Megger SMRT1D lies a sophisticated single-phase current source designed to deliver precise, stable, and high-current output. This capability is essential for testing the performance of electromechanical, solid-state, and microprocessor-based relays under realistic fault conditions. The system can provide continuous current for burdened relays, as well as short-duration high-current injections necessary for overcurrent and breaker trip testing. This ensures that protective devices operate correctly within their specified time-current characteristics. The accuracy of the SMRT1D is not merely a feature but a foundational aspect of its design, as it is fully compliant with IEC and IEEE testing standards. Such compliance guarantees that the results obtained are both precise and repeatable, which is critical for maintaining the reliability of power system protection schemes. For engineers who demand laboratory-grade accuracy in the field, the ability to purchase a device that meets these stringent standards makes the Megger SMRT1D an investment in long-term operational confidence.
Technical Specifications in Action
While specifications are often presented as dry data points, the true value of the Megger SMRT1D’s technical features is realized in their practical application. The high power output, for instance, is not just a number on a datasheet; it translates directly into the ability to test relays with high burden, such as those used in current differential protection schemes. The compact and portable design does not sacrifice the instrument’s performance, allowing technicians to perform primary and secondary injection tests without the need for multiple bulky devices. Furthermore, the reliable accuracy of the SMRT1D ensures that maintenance teams can conduct field verifications of overcurrent, earth fault, and breaker trip units with confidence. By focusing on the application of these specifications, users can understand how the Megger SMRT1D delivers tangible benefits in real-world scenarios, justifying its position as a best-in-class solution. When you are ready to buy, the Megger SMRT1D price reflects this integration of high performance and practical utility.
Diverse Applications in Power System Protection
The versatility of the Megger SMRT1D makes it an indispensable tool for a wide range of applications in power system protection. It is specifically ideal for testing both electromechanical and digital protective relays, a critical requirement as utilities and industrial facilities transition between technologies. The device supports primary and secondary injection testing of current-based protection devices, enabling comprehensive verification of entire protection schemes from the current transformers to the relay logic. During commissioning and maintenance activities, the SMRT1D facilitates efficient and accurate diagnostics, helping to identify potential issues before they lead to system failures. Additionally, it is perfectly suited for field verification of specific protection functions, including inverse time, instantaneous, differential, and directional overcurrent protection.
