Technical Features and Applications of the Megger MPCC230 Pro Circuit Checker

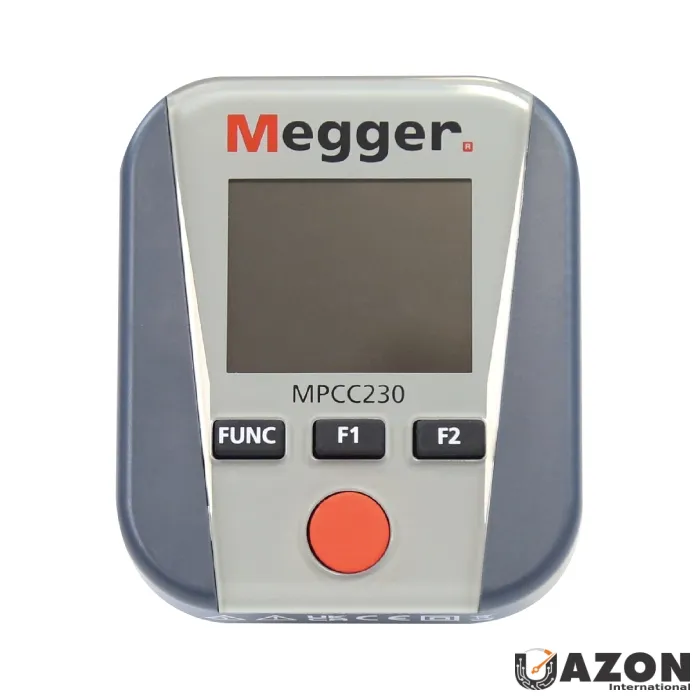

The Megger MPCC230 Pro Circuit Checker is a professional TRMS socket tester and circuit checker designed for electricians who require fast and reliable diagnostic tools on site. Housed in a compact, pocket-sized unit, this device provides comprehensive testing capabilities including socket voltage verification, polarity checks, earth loop impedance measurement, RCD protection device testing, and harmonics analysis up to the 50th order. Whether you are working in residential, commercial, or industrial environments, the MPCC230 offers the precision and portability needed to ensure electrical safety and compliance.
As an authorized distributor in Dubai and the UAE, we provide genuine MPCC230 units at the best price, complete with technical support and warranty. If you are looking to buy the Megger MPCC230, this guide explores the technical specifications, field applications, and key benefits that make this instrument a must-have for modern electrical maintenance.
Display and Connectivity Features of the Megger MPCC230
The Megger MPCC230 features a 1.7-inch TFT color display that ensures crystal-clear results even in bright outdoor conditions. This high-visibility screen allows electricians to read complex measurements without strain. Additionally, the device integrates seamlessly with the free Megger MPCC App, enabling users to store, view, and manage test results directly from their mobile devices. This connectivity supports efficient data transfer for up to 64 loop and RCD tests, streamlining the workflow for compliance reporting and on-site documentation.
Socket Polarity and Voltage Measurement Capabilities
One of the primary functions of the Megger MPCC230 is ensuring accurate socket wiring and polarity checks. The device provides clear indications of wiring faults, allowing electricians to identify issues such as reversed polarity or open grounds instantly. Alongside polarity verification, the unit performs TRMS voltage measurements across a range of 120 V to 250 V AC. This wide measurement range ensures compatibility with various electrical systems, making it a versatile tool for professionals working in diverse environments.
RCD Testing and Earth Loop Impedance Analysis
The Megger MPCC230 excels in testing RCD protection devices, supporting Type A, AC, and F configurations. It automatically conducts RCD tests, providing trip times and touch voltage indications to verify device performance under fault conditions. Furthermore, the unit features a no-trip earth loop impedance test, which measures earth loop resistance without tripping the RCD, minimizing downtime on live circuits. The device also displays prospective earth fault current, helping electricians assess the severity of potential faults and ensure protective devices are correctly sized.
Harmonics and Power Quality Monitoring
Modern electrical systems often suffer from harmonic distortion caused by non-linear loads. The Megger MPCC230 addresses this by offering THD% (Total Harmonic Distortion) analysis and harmonics measurement up to the 50th order. This capability allows electricians to monitor mains voltage quality, identify sources of distortion, and prevent potential equipment malfunctions. By analyzing harmonic content, users can ensure that sensitive electronics operate within safe parameters and comply with power quality standards.
Data Management and Storage Integration
Efficient data management is critical for compliance and quality assurance. The Megger MPCC230 stores results for up to 64 loop and RCD tests, allowing electricians to capture data during inspections without relying on manual notes. The integrated Megger Pro Circuit Checker App facilitates easy transfer and review of stored results, enabling seamless collaboration between field technicians and office-based teams. This digital workflow reduces administrative overhead and ensures that all test data is accurately recorded for audit purposes.
Durability and Design for Field Use
The Megger MPCC230 is built to withstand the rigors of daily field use. Its compact, lightweight design makes it easy to carry in a pocket or tool belt, while the IP40 protection rating ensures resistance to dust and minor splashes. The ergonomic layout of the device provides intuitive access to all functions, allowing electricians to operate the unit efficiently even in confined spaces. This robust design underscores Megger's commitment to producing reliable, professional-grade instrumentation.
Practical Applications in Electrical Maintenance
The Megger MPCC230 is ideal for electricians requiring fast socket wiring and polarity checks in residential and commercial installations. It is equally effective for testing RCD protection devices, ensuring that safety switches operate within specified trip times and touch voltage limits. When measuring earth loop impedance and prospective earth fault current, the device provides accurate readings without disrupting circuit operation, making it suitable for live testing scenarios.
