Megger VLF Sine Wave 62 kV Powerful Cable Tester

Megger VLF Sine Wave 62 kV Testing and Condition Analysis

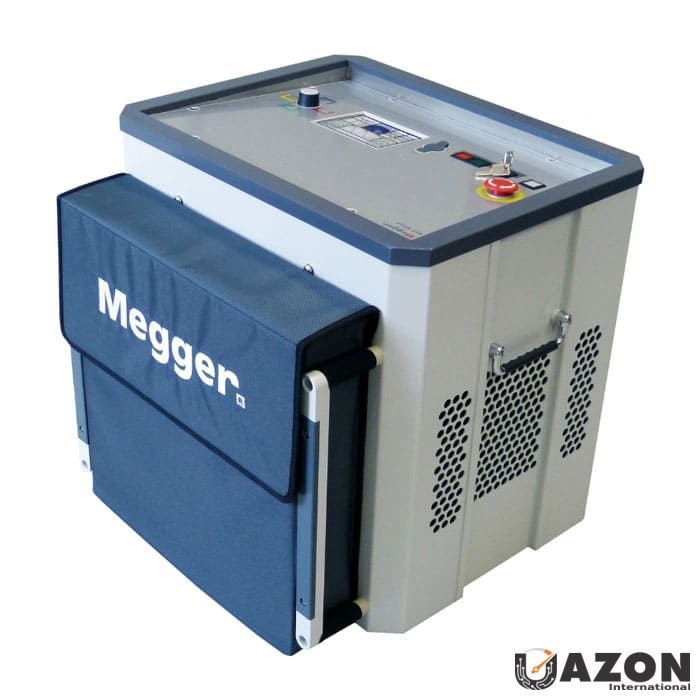

The Megger VLF Sine Wave 62 kV tester represents a pinnacle of engineering in medium voltage cable diagnostics. Designed for field engineers and utility maintenance teams, this system integrates high-voltage generation with advanced diagnostic capabilities in a single, portable unit. When you are ready to buy the Megger VLF Sine Wave 62 kV, you are investing in a tool that streamlines complex testing procedures while ensuring the highest standards of safety and accuracy. Understanding the Megger VLF Sine Wave 62 kV price requires looking beyond the hardware cost to the value of reliable, on-site condition analysis. This system is specifically tailored for verifying the integrity of insulated cables used in transmission and distribution networks, providing data-driven insights that prevent costly failures.

Technical Features and Field Applications of the Megger VLF Sine Wave 62 kV

The versatility of the Megger VLF Sine Wave 62 kV system makes it an essential tool for comprehensive cable assessment. Unlike standard testers, this unit combines multiple testing functions into a rugged, portable chassis, allowing operators to perform a wide range of diagnostics without switching equipment. The best price on the Megger VLF Sine Wave 62 kV is realized when considering its multi-functionality, which covers VLF testing, DC insulation tests, and enclosure fault detection. This bridge text introduces the specific technical advantages that define the system's performance in harsh field environments.

• High Voltage Output Capability: The unit delivers a sine wave voltage up to 62 kV peak (44 kV RMS), making it suitable for testing medium voltage cables ranging from standard distribution lines to longer transmission runs. This high voltage capability ensures that the cable insulation is subjected to rigorous stress tests that simulate actual operating conditions, validating reliability and safety compliance.
• Integrated Delta Tan Diagnostics: An optional internal tan delta module transforms the tester into a comprehensive health assessment tool. This feature allows for the simultaneous measurement of insulation resistance and capacitive current, providing a precise calculation of the power factor. By assessing the tan delta value, operators can identify moisture ingress, aging, or chemical degradation within the cable insulation before catastrophic failures occur.
• Intelligent Frequency Adjustment: The system features automatic frequency adjustment based on the cable length. For instance, when testing 35 kV cables up to 25 km long, the intelligent VLF CR Megger system adjusts the test frequency automatically. This automation simplifies the testing process, ensuring that resonance conditions are met for accurate and reliable results without manual calculation.
• Multi-Function Testing Modes: Beyond standard VLF testing, this device performs DC insulation tests with leakage current measurement and enclosure fault identification. This versatility allows for a complete assessment of cable conditions, from initial installation verification to scheduled lifetime maintenance checks, all with a single piece of equipment.
• Advanced Safety Protections: Safety is paramount when handling high-voltage equipment. The Megger VLF Sine Wave 62 kV includes multiple protective measures against over-voltage and system faults. Furthermore, the unit supports remote operation, allowing technicians to maintain a safe distance from the high-voltage zone during active testing, which is a critical feature for industrial compliance.

Megger VLF Sine Wave 62 kV Specifications and Performance

When evaluating the technical specifications of the Megger VLF Sine Wave 62 kV, it is important to understand how each parameter translates to field performance. The specifications below highlight the precision and capacity of this testing system. For those comparing the Megger VLF Sine Wave 62 kV price, these detailed metrics demonstrate why this model is considered a top-tier investment for cable management. The following list outlines the key operational metrics that define the unit's output and accuracy.

• Output Voltage Variability: The system offers a sine wave output from 0 to 44 kV RMS (0 to 62 kV peak). It also supports DC voltage output of ± 0 to 62 kV and VLF rectangular voltage from 0 to 62 kV. This range ensures compatibility with a wide variety of medium voltage cable specifications.
• Precision and Resolution: Voltage accuracy is maintained at ± 1% with a fine resolution of 0.1 kV. This level of precision is crucial for detecting subtle insulation defects that might be missed by less accurate equipment.
