MEGGER VLF Connection Set

Understanding the MEGGER VLF Connection Set for High-Voltage Testing

When performing Very Low Frequency (VLF) hipot testing on high-voltage cables and equipment, the integrity of the connection between the test set and the device under test (DUT) is paramount. The MEGGER VLF Connection Set is engineered to bridge this critical gap, ensuring a safe, tight, and reliable interface. This specialized accessory guarantees that high-voltage signals are transmitted accurately without leakage or flashover, which is essential for valid diagnostic results. For procurement teams and field engineers, understanding the specific applications of this connection set is the first step toward optimizing high-voltage maintenance workflows.

Whether you are working with substation equipment or distribution cables, the right adapter can significantly influence testing efficiency. The MEGGER VLF Connection Set is available in two primary configurations: a versatile 3-phase pliers adapter and a specialized 3-phase SF6 adapter. Both are designed to handle voltages up to 60 kV, making them suitable for a wide range of industrial testing scenarios. When you consider the MEGGER VLF Connection Set Price, it is an investment in safety and measurement precision that pays dividends in field reliability.

Technical Features and Field Applications of the MEGGER VLF Connection Set

Understanding the technical distinctions between the available adapters is crucial for selecting the right configuration for your specific testing requirements. The MEGGER VLF Connection Set is not a one-size-fits-all solution; rather, it offers tailored connectivity options to address diverse field challenges. By pairing this set with your MEGGER VLF test equipment, you ensure that the full capabilities of the analyzer are realized without compromise. Below, we explore the key components and their practical applications in high-voltage testing environments.

The following section details the primary adapters included in the connection set, highlighting their unique advantages and ideal use cases. Whether you need broad versatility or specialized elbow connector access, these features are designed to enhance workflow efficiency. For those looking to Buy MEGGER VLF Connection Set, understanding these nuances ensures you acquire the exact configuration needed for your assets.

3-Phase Pliers Adapter: Versatility for Diverse Testing Arrangements

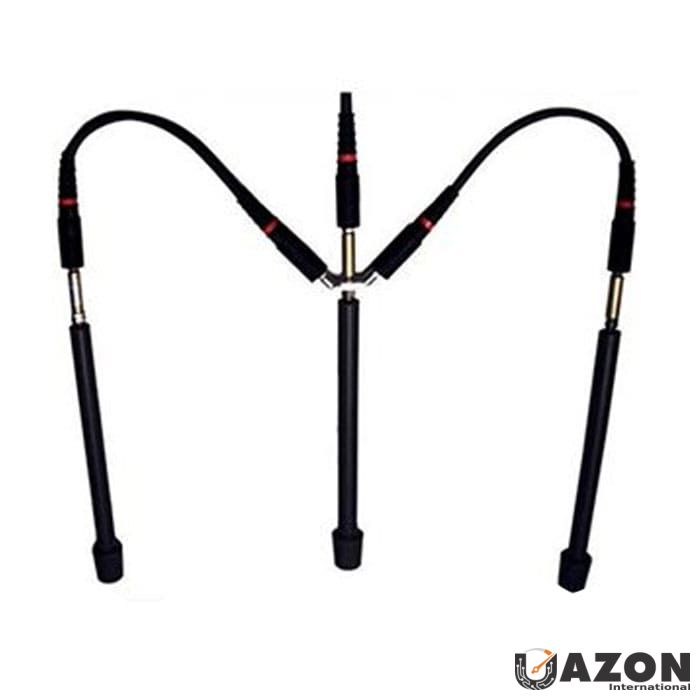

The 3-phase pliers adapter is the workhorse of the VLF connection set, offering broad compatibility across various testing arrangements. This adapter is designed to clamp securely onto bushings, terminals, and other standard connection points found on transformers and switchgear. Its robust mechanical design ensures a stable connection that withstands the rigors of field use, minimizing the risk of accidental disconnection during high-voltage application.

Engineers favor the pliers adapter for its flexibility in general-purpose VLF testing scenarios. It allows for rapid connection and disconnection, which is vital when performing routine maintenance on multiple assets within a tight schedule. The adapter's design facilitates a safe working distance while maintaining a tight electrical connection, reducing the likelihood of corona discharge or measurement errors. When evaluating the MEGGER VLF Connection Set Price, the value of this versatile adapter becomes evident through its wide applicability across different equipment types.

3-Phase SF6 Adapter: Precision for Elbow Connectors

For specialized applications involving elbow connectors, the 3-phase SF6 adapter provides an unmatched solution. Elbow connectors, commonly found on gas-insulated switchgear (GIS) and terminated cables, require a precise attachment method that standard pliers may not accommodate. The SF6 adapter is engineered specifically to interface with these geometries, ensuring a direct and secure path for the test voltage. This precision is critical for avoiding damage to sensitive insulation components during testing.

Furthermore, the SF6 adapter is available in two distinct thread sizes—M12 and M16—to accommodate different elbow connector standards. This adaptability ensures that the connection set can be configured exactly to the equipment on site, eliminating the need for multiple incompatible accessories. The availability of these sizes underscores MEGGER's commitment to providing field-ready solutions that evolve with industry standards. Purchasing the correct size ensures that your testing setup is both efficient and compliant with safety protocols.

Performance Specifications and Voltage Handling Capabilities

The MEGGER VLF Connection Set is engineered to handle demanding high-voltage environments, with a scope of application rated up to 60 kV. This voltage rating aligns perfectly with the requirements for testing medium-voltage cables and equipment, which are prevalent in utility and industrial sectors. The ability to sustain such high potentials without breakdown is a testament to the insulation quality and mechanical integrity of the connection components. For users operating MEGGER VLF test sets, this compatibility ensures seamless integration into existing testing workflows.

While the specifications indicate a robust voltage capacity, the true performance is realized in the field through the set's reliability.
