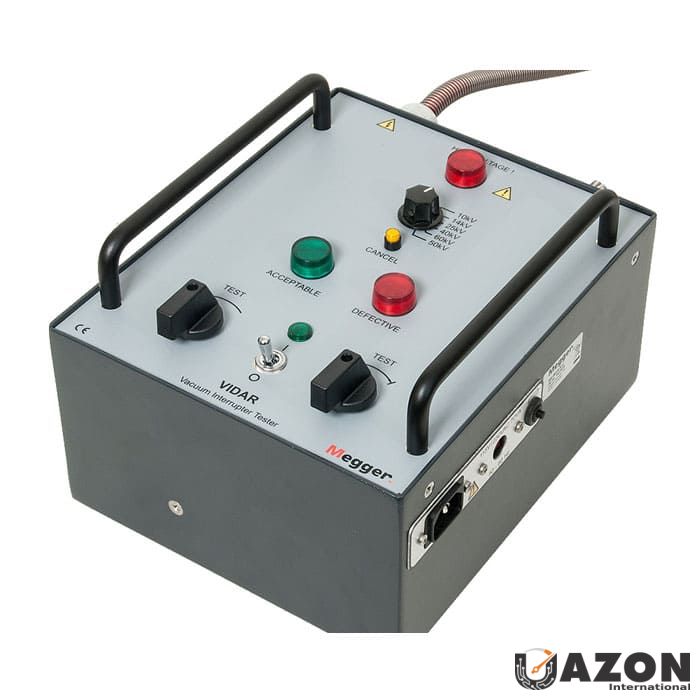

Megger Vidar Vacuum Interrupter Tester
The Megger VIDAR Vacuum Interrupter Tester is an essential tool for electrical industry professionals, offering a fast and efficient way to assess the condition of vacuum interrupters. This tester is specifically engineered to evaluate the vacuum interrupter’s capability to prevent flashovers, a crucial aspect in maintaining the reliability and safety of circuit breakers.
When a vacuum circuit breaker is commissioned or undergoes routine testing, it’s crucial to verify the integrity of the vacuum interrupter before returning it to service. The VIDAR allows you to quickly and conveniently assess the condition of the vacuum interrupter by leveraging the established relationship between flashover voltage and the interrupter’s integrity.
A suitable test voltage (DC) is applied to the interrupter, and the result is known immediately. VIDAR permits you to select among test voltages from 10 to 60 kV DC. One of these voltages is customized and specified by the customer when ordering. A green lamp indicates the approval of the interrupter. A red lamp indicates that it is defective. Two-hand control and a high-voltage warning lamp enhance safety.
Understanding the Critical Role of Vacuum Interrupter Testing
In the realm of high-voltage electrical distribution, the reliability of circuit breakers is non-negotiable. At the heart of these devices lies the vacuum interrupter, a component responsible for quenching electrical arcs during switching operations. Over time, the vacuum integrity of these interrupters can degrade due to mechanical wear, thermal stress, or manufacturing defects. When the vacuum pressure rises above acceptable levels, the interrupter loses its ability to prevent flashovers, leading to catastrophic equipment failure and potential safety hazards.
The Megger VIDAR provides a definitive solution for detecting these faults before they escalate. By focusing on the direct correlation between flashover voltage and vacuum integrity, this tester allows engineers to make data-driven decisions regarding maintenance and replacement. Whether you are commissioning new equipment or performing routine diagnostics on existing switchgear, the VIDAR ensures that every vacuum interrupter meets stringent operational standards.
Technical Features and Field Applications of the Megger VIDAR
The design of the Megger VIDAR prioritizes speed, precision, and user safety in demanding field environments. Unlike complex diagnostic suites that require extensive setup, the VIDAR operates on a straightforward principle: applying a specific DC test voltage and observing the result. Below are the key technical features that define its performance and utility in real-world scenarios.
- Adjustable DC Test Voltage: The tester allows operators to select test voltages ranging from 10 kV to 60 kV DC. This flexibility ensures that the instrument can be tailored to specific interrupter ratings, providing accurate assessments across various equipment types.
- Instantaneous Result Indication: The VIDAR eliminates guesswork with its immediate visual feedback system. A green lamp confirms the approval of the interrupter, while a red lamp clearly signals a defective unit, allowing for rapid decision-making on the workshop floor.
- Enhanced Safety Protocols: Safety is paramount when handling high-voltage equipment. The VIDAR incorporates two-hand control operation, ensuring that the user’s hands are safely positioned away from live components during testing. Additionally, a high-voltage warning lamp provides clear visual cues about the active state of the device.
- Customizable Voltage Configuration: Recognizing that different applications have unique requirements, Megger offers the option to customize one specific test voltage at the time of ordering. This feature ensures that the tester is perfectly aligned with your specific operational parameters right out of the box.
Streamlined Testing Workflow for Maximum Efficiency
Efficiency in electrical maintenance is measured by the speed and accuracy of diagnostics. The Megger VIDAR is engineered to minimize downtime by simplifying the testing process into a few intuitive steps. When a vacuum circuit breaker is taken out of service for commissioning or routine maintenance, the integrity of the interrupter must be verified before re-energization.
The process begins by connecting the VIDAR to the interrupter terminals. The operator then selects the appropriate DC test voltage—either the standard range or a customized setting specified during purchase. Once the test voltage is applied, the instrument’s logic circuitry evaluates the flashover behavior. The entire test cycle is completed in moments, delivering immediate pass or fail results without the need for complex data analysis or secondary verification.
