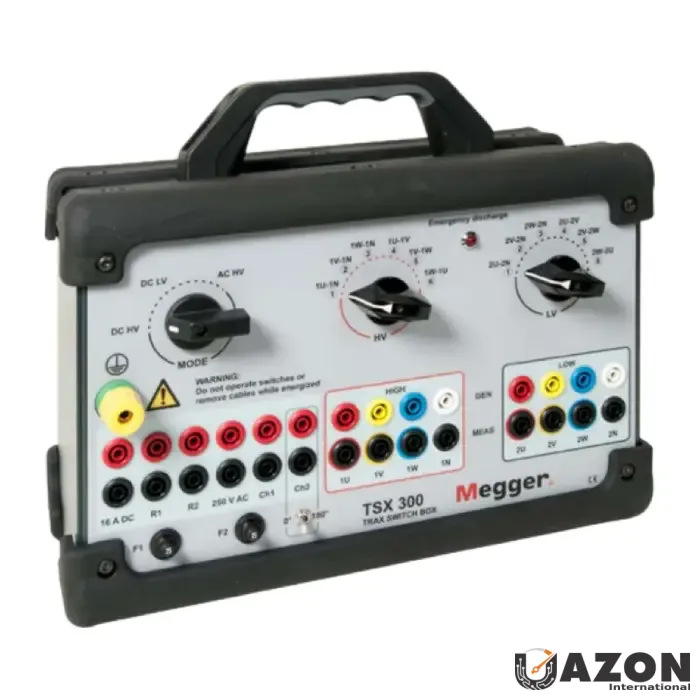

Technical Features and Field Applications of the Megger TSX300 Automatic Switch Box
Transformer maintenance requires precision, safety, and speed, particularly when working in high-voltage substations or remote industrial sites. The Megger TSX300 Automatic Switch Box addresses these needs by streamlining the connection process during critical diagnostic tests. This compact accessory is engineered to work seamlessly with Megger TRAX transformer testing systems, allowing technicians to perform multiple measurements without the constant need to reconfigure test leads. For utility managers and field engineers looking to optimize their testing workflows, the Megger TSX300 offers a robust solution that minimizes downtime and maximizes safety.
When considering the Buy Megger TSX300 option, it is essential to understand how this device integrates into existing testing protocols. By enabling single-connection testing, the switch box eliminates the repetitive physical labor involved in moving leads between phases and taps. This not only speeds up the diagnostic process but also significantly reduces the risk of operator error or accidental short-circuits. The Megger TSX300 Price reflects its capability to deliver comprehensive transformer diagnostics in a single, portable unit, making it a cost-effective investment for maintenance teams focused on efficiency.
Core Capabilities and Efficiency Gains
The primary advantage of the Megger TSX300 lies in its ability to consolidate multiple test functions into a streamlined workflow. Traditional transformer testing often requires disconnecting and reconnecting leads to switch between winding resistance measurement, turns ratio testing, and other diagnostics. The TSX300 removes this bottleneck, allowing technicians to perform a full suite of tests from a single connection point. This efficiency is critical when working under time constraints or in environments where accessibility is limited.
Integration with Megger TRAX systems further enhances the device's utility. The automatic switch box acts as a bridge between the test set and the transformer, managing the complex switching logic internally. This automation ensures that tests are executed in the correct sequence, reducing the likelihood of manual errors. For teams managing a fleet of transformers, the ability to standardize testing procedures with a reliable accessory like the TSX300 ensures consistent data quality across assets.
Technical Specifications and Performance Metrics
Understanding the technical specifications of the Megger TSX300 is vital for assessing its suitability for specific transformer testing applications. The device supports winding resistance measurement (WRM) with currents up to 16 A DC, which is essential for detecting loose connections or degraded windings in power transformers. High-current testing capability ensures accurate resistance readings even on large transformer windings, where lower currents might not penetrate sufficiently to reveal faults.
In addition to WRM, the TSX300 supports turns ratio testing (TTR) with voltages up to 250 V AC. This allows for precise verification of transformer winding ratios, which is critical for detecting tap changer issues or winding deformities. The device also features automatic demagnetization, a function that protects the transformer core after DC resistance testing by eliminating residual magnetism. This feature is particularly valuable for extending the life of transformer insulation and reducing the risk of inrush currents during re-energization.
Field-Ready Design and Portability
Field equipment must be both durable and easy to transport, especially when working in remote substations or industrial facilities. The Megger TSX300 weighs just 3.8 kg and features a compact footprint of 310 × 190 × 210 mm, making it lightweight and easy to carry. Despite its small size, the device is built to withstand harsh environments, with a rugged housing that meets IEC vibration and shock testing standards.
Color-coded bushing cables are included with the TSX300, simplifying the connection process and reducing the risk of miswiring. The device also features a protective ground terminal, ensuring safe operation in high-voltage settings. Compliance with CE standards and ISTA 2A transport certification further guarantees that the TSX300 can endure the rigors of field use while maintaining reliable performance.
Safety and Compliance in Transformer Diagnostics
Safety is paramount when testing high-voltage equipment, and the Megger TSX300 is designed with this priority in mind. The device’s make-before-break testing capability for OLTC continuity ensures that circuits are never left open during testing, minimizing the risk of arcs or transient voltages. This one-touch functionality allows technicians to perform continuity checks quickly and safely, even on energized systems.
