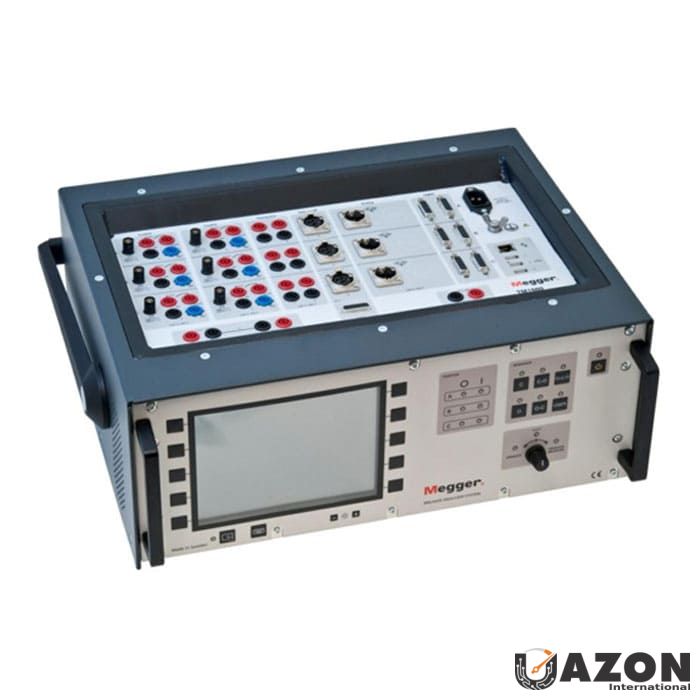

Buy Megger TM1700: Advanced Circuit Breaker Analyzer for High-Voltage Substations
The Megger TM1700 series represents a significant leap in circuit breaker testing technology, bridging the gap between essential field diagnostics and premium analytical capabilities. Designed for professionals who demand reliability, this analyzer utilizes groundbreaking technology derived from the top-of-the-line TM1800 series. When you buy the Megger TM1700, you are investing in a robust solution that assists users in achieving efficient and reliable testing outcomes. Available in four distinct models ranging from PC-remote controlled to fully stand-alone units, the TM1700 offers versatility to suit various operational preferences. All models are fully compatible with the well-proven CABA Win data management and analyzing software, allowing for seamless integration into existing workflows. For those seeking the best price on the Megger TM1700 without compromising on performance, this series delivers exceptional value by incorporating premium features at a competitive cost.
Technical Features and Field Applications of the Megger TM1700
The engineering behind the Megger TM1700 focuses on durability and precision in the most challenging environments. The robust design offers powerful technology that assists the user in achieving efficient and reliable circuit breaker testing. All inputs and outputs on the instrument are engineered to withstand the demanding conditions of high-voltage substations and industrial environments. A critical technical advantage is the galvanic isolation of inputs and outputs, which makes it possible to perform all relevant measurements in a single test setup. This eliminates the need for new setups and re-connections, significantly reducing testing time and minimizing human error during complex diagnostic procedures.
DualGround™ Safety and Operational Efficiency
Drawing on extensive experience in the electrical testing field, Megger has equipped the TM1700 series with the most useful features found in its premium TM1800 series. This includes proven technology that has made the TM1800 the go-to choice for professionals seeking comprehensive testing flexibility. A standout feature of the TM1700 series is its DualGround™ capability, which allows for testing with both sides of the circuit breaker grounded. This method not only enhances the safety of operations by mitigating the risk of inducing high voltages into the breaker during tests but also ensures that maintenance staff can operate under safer conditions. By integrating this level of safety directly into the testing process, the TM1700 enhances overall workplace safety protocols while maintaining high measurement accuracy.
Environmental Specifications and Durability
When considering the Megger TM1700 price, it is essential to evaluate the instrument's resilience to environmental factors. The device is explicitly designed for application in high-voltage substations and industrial environments. It operates within a wide temperature range, functioning reliably from -20°C to +50°C (-4°F to +122°F). For storage and transport, the unit can withstand temperatures from -40°C to +70°C (-40°F to +158°F). Additionally, the analyzer is rated for humidity levels between 5% and 95% RH, non-condensing, ensuring stable performance in varied climatic conditions. This environmental robustness ensures that the Megger TM1700 remains a dependable tool for field technicians regardless of the weather.
Electrical and Physical Attributes for Field Portability
Understanding the physical and electrical requirements is crucial for planning field operations. The Megger TM1700 is designed for global use, featuring a mains input range of 100 – 240 V AC at 50/60 Hz, making it versatile for international standards. With a maximum power consumption of 200 VA, it balances high performance with energy efficiency. Despite its powerful capabilities, the unit remains portable, with dimensions of 500x185x410 mm (19.7”x7.3”x16.1”) and a weight of just 12 kg (26.5 lbs). This compact form factor allows easy transport to remote sites without sacrificing the durability needed for industrial use. When you buy the Megger TM1700, you receive a tool that is both physically manageable and electrically robust.
Calibration and Compliance Standards
Precision is paramount in circuit breaker analysis, and the TM1700 series adheres to strict calibration standards. Specifications are valid after a 30-minute warm-up time, ensuring the internal components reach optimal operating stability. The system time base drift is minimal, measured at 0.001
