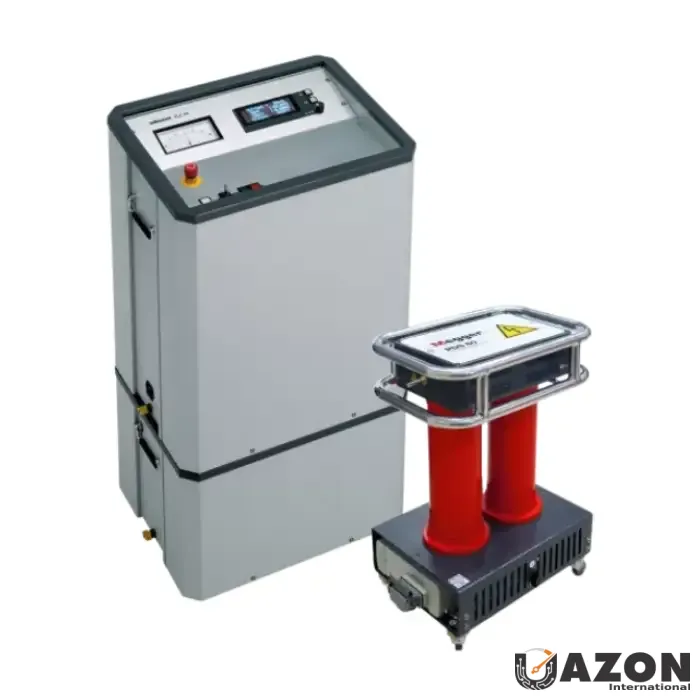

Megger TDS 60-P: Advanced Cable Testing and Diagnosis Solution
The Megger TDS 60-P represents a pinnacle of engineering in the field of high-voltage cable testing and diagnostic systems. Designed to meet the rigorous demands of modern power infrastructure, this state-of-the-art system seamlessly integrates multiple testing methodologies into a single, portable unit. Whether you are managing medium-voltage distribution networks or high-voltage transmission lines, the TDS 60-P provides the reliability and accuracy required for effective fault detection and insulation assessment. For professionals seeking the best price on high-performance cable diagnostic equipment, the Megger TDS 60-P offers unparalleled value and functionality.
By combining VLF (0.1 Hz), DAC (20–500 Hz), and DC testing capabilities up to ±60 kV, this system ensures comprehensive condition monitoring without the need for multiple devices. This versatility makes it an essential tool for utilities, industrial operators, and service companies aiming to minimize downtime and extend cable lifespan. When you buy the Megger TDS 60-P, you are investing in a solution that prioritizes safety, efficiency, and compliance with IEC standards.
Technical Features and Field Applications of the Megger TDS 60-P
The Megger TDS 60-P is engineered to address the complex challenges of cable diagnostics in the field. Its design philosophy centers on modularity and robustness, ensuring that it can withstand the harsh conditions often encountered during outdoor operations. Below, we explore the critical technical features and their practical applications in real-world scenarios.
- Output voltage up to 60 kV (VLF, DAC, and DC modes): This high-voltage capability allows for thorough testing of insulation integrity across various cable types, ensuring that even the most demanding applications are covered.
- VLF 0.1 Hz testing for insulation integrity of long cables: Very Low Frequency testing is particularly effective for long-length cables, providing accurate assessments without the risk of thermal damage associated with higher frequency tests.
- DAC 20–500 Hz for advanced diagnostic accuracy: The Dual-Mode Ageing Cycle frequency range enhances diagnostic precision, enabling detailed analysis of cable aging and degradation patterns.
- Integrated PD detector (PDS 60) for condition monitoring: Built-in partial discharge diagnostics allow for real-time detection of insulation faults, significantly reducing the need for post-processing and downtime.
- Leakage current measurement with 10 µA resolution: High-resolution leakage current monitoring ensures precise tracking of insulation resistance, aiding in early fault detection.
- Sheath testing and pinpointing 3–10 kV with pulse ratios 1:3/1:5/1:9: This feature is crucial for locating sheath faults in underground cables, providing accurate pinpointing to facilitate quick repairs.
- Automated calibration and reporting with advanced database software: The system streamlines workflow with one-click report generation and automated calibration, enhancing productivity and data management.
- Rugged two-unit design for portability and field use: The modular and transport-ready form factor ensures easy setup and mobility, making it ideal for field technicians.
- Meets IEC 60270 PD measurement standard: Compliance with international standards guarantees that the system delivers reliable and legally defensible results.
Enhanced Diagnostic Capabilities with Partial Discharge Analysis
Partial discharge (PD) diagnostics are a cornerstone of the Megger TDS 60-P's functionality. By integrating the PDS 60 detector directly into the system, users can perform real-time PD localization without the need for external equipment. This capability is vital for identifying incipient faults in cable insulation, which, if left undetected, could lead to catastrophic failures. The system's powerful evaluation software processes PD data instantly, providing clear insights into cable health and enabling proactive maintenance strategies.
For those looking to buy the Megger TDS 60-P, the inclusion of advanced PD diagnostics represents a significant cost and time savings. Traditional methods often require separate PD equipment and extensive post-processing, but the TDS 60-P consolidates these tasks into a single, efficient workflow. This integration not only speeds up testing but also enhances the accuracy of fault localization, ensuring that maintenance teams can address issues with confidence.
