Understanding the Megger T22/1-A.C. High Voltage Test System
High-voltage testing is a critical requirement for maintaining the integrity of electrical infrastructure, and the Megger T22/1-A.C. High Voltage Test System stands out as a premier solution in this domain. Designed to epitomize versatility and efficiency, this portable test set facilitates on-site high-voltage inspections and diagnostics with remarkable ease. Unlike cumbersome, stationary equipment, the T22/1 is engineered specifically for the demands of fieldwork, ensuring that technicians can perform reliable assessments directly at utility substations or industrial facilities. For procurement teams and field engineers seeking the best price for a multifunctional testing solution, the Megger T22/1 represents a strategic investment in operational uptime and safety.

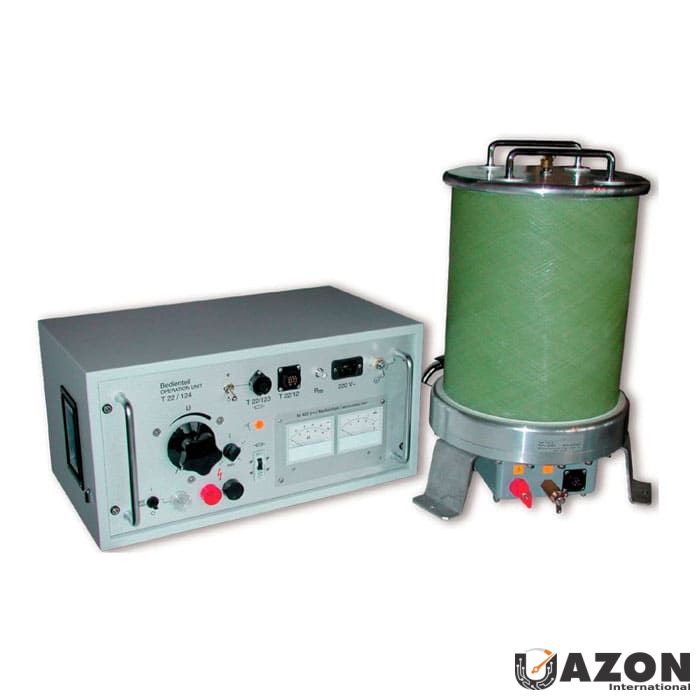

The system’s architecture comprises two distinct units: a control unit and a high-voltage unit. This thoughtful division significantly enhances portability and usability, allowing operators to manage the system without the need for additional transport aids. Such a design is particularly beneficial in varied and challenging field conditions where mobility is often restricted. By separating the high-voltage generation from the control interface, Megger ensures that the operator remains at a safe distance while maintaining precise command over the testing parameters. When you buy the Megger T22/1, you are investing in a modular design that simplifies logistics and reduces setup time on-site.
Technical Features and Field Applications of the Megger T22/1-A.C.
The technical capabilities of the Megger T22/1 extend far beyond basic alternating current (AC) verification. This test system is engineered to address a wide spectrum of diagnostic requirements, making it an indispensable tool for modern electrical maintenance. The following features highlight why this system is considered a top-tier choice for professionals who demand accuracy and durability.
- Dual Testing Capabilities: The T22/1 is not limited to AC testing; it includes a rectifier attachment that expands its functionality to direct current (DC) voltage testing up to 80 kV. This dual capability is invaluable for comprehensive insulation assessments across various apparatus.
- Modular Portability: The separation of the control unit and the high-voltage unit allows for easy transport and deployment. Operators can manage the testing process manually without heavy lifting equipment, which is ideal for confined or remote locations.
- Precise Control and Safety: The control unit facilitates precise management of the testing process, allowing for adjustments that cater to specific test requirements. Meanwhile, the high-voltage unit is robustly constructed to safely generate the necessary voltages, ensuring operator safety during high-energy testing.
- Field-Optimized Design: Megger’s T22/1 is ideal for field technicians and engineers who need a reliable, easy-to-transport solution. Whether conducting routine maintenance checks or emergency diagnostics, this system provides a comprehensive solution that ensures safety, accuracy, and reliability.
Megger T22/1-A.C. Specifications and Operational Performance
Understanding the specifications of the Megger T22/1-A.C. is essential for determining its fit for specific high-voltage testing applications. These metrics define the system's operational envelope and help engineers select the right tool for demanding insulation tests. The following specifications outline the performance limits and capabilities that users can expect when deploying this system in the field.
- Output Voltage Range: The system delivers an output voltage of 0 to 75 kV rms. With two transformers symmetrically configured to earth, it achieves a maximum output of 150 kV rms, providing ample range for testing medium-voltage cables and equipment.
- Operating Cycle and Duty Rating: The T22/1 offers flexible operating cycles to suit different test durations: 1 kVA for unlimited operation, 2 kVA for 20 minutes, and 4 kVA for 1 minute. This versatility allows for both prolonged insulation resistance tests and short-duration high-stress tests.
- Short-Circuit Current: The system is rated for a maximum short-circuit current of 50 mA for 1 minute. This specification is crucial for assessing the robustness of the test object and ensuring that the test set can handle fault conditions safely.
- Nominal Current and Test Load: With a nominal current of 13 mA and a test load capacity of approximately 1000 pF for up to 30 minutes, the T22/1 is optimized for standard capacitive loads encountered in cable and transformer testing.
