Buy Megger SWG 505: High-Performance Surge Wave Generator

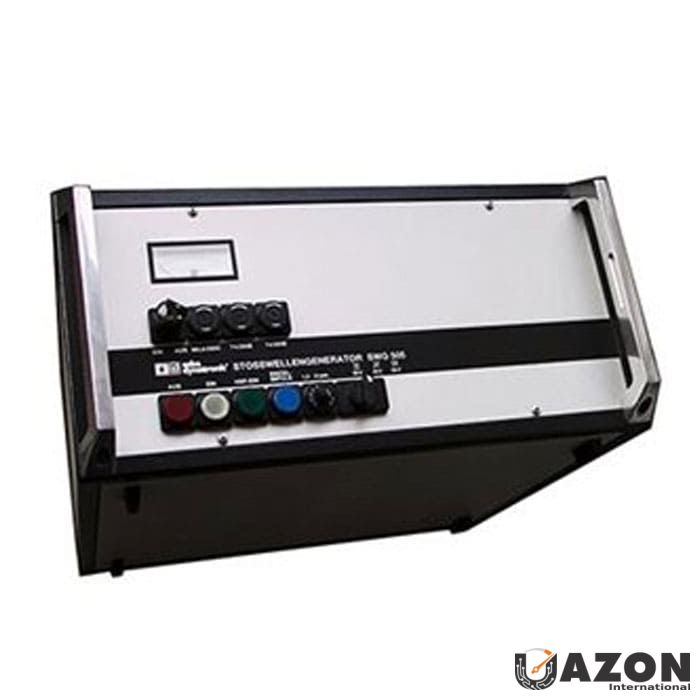

The Megger SWG 505 5 kV 500 J surge wave generator represents a pinnacle of engineering for professionals in the electrical and utility industries. When you Buy Megger SWG 505, you are investing in a compact and cost-effective solution designed for rigorous field applications. As the smallest, lightest, and most affordable model in the Megger surge wave generator lineup, the SWG 505 excels in environments where flexibility, portability, and a favorable price-to-performance ratio are crucial. This device is engineered to deliver reliable performance without compromising on power, making it an essential asset for any diagnostic toolkit.
Finding the best price for the Megger SWG 505 involves understanding the value it brings to cable fault location and maintenance. The unit is designed to handle voltages of 3 kV, 4 kV, and 5 kV, delivering a powerful output of up to 500 Joules. This optimized surge energy, paired with switchable capacitors, ensures that each voltage range fully utilizes the available energy for effective diagnostics. Whether you are managing a large utility grid or performing routine maintenance on industrial installations, the Megger SWG 505 Price offers an accessible entry point into professional-grade testing equipment.
Technical Features and Field Applications of the Megger SWG 505
The technical architecture of the Megger SWG 505 is built around versatility and precision. One of the standout features is the ability to adjust voltage stages to maximize surge energy, making this generator particularly versatile for a variety of testing scenarios. The integration of switchable capacitors allows the operator to match the output energy specifically to the voltage level required, ensuring efficient energy transfer and accurate fault detection. This capability is vital when dealing with different cable types and lengths, where standard energy outputs may not provide sufficient reflection clarity.
Surge wave generators like the SWG 505 are integral tools in the discipline of cable fault location. They are typically used in conjunction with reflectometers to perform both pre-location and pinpointing of faults. Pre-location identifies the general area of a fault, while pinpointing accurately determines the exact location, reducing the time and cost associated with excavation and repair. This dual functionality is essential for efficiently maintaining and repairing underground cables, thereby minimizing downtime and improving network reliability for utility providers.
Advantages of Portability and Design in the SWG 505
Portability is a defining characteristic of the Megger SWG 505, distinguishing it from larger, bulkier competitors. The unit’s compact design does not sacrifice performance, making it an ideal choice for field technicians who require a reliable, lightweight, and effective tool for routine diagnostics and emergency fault location. Its ergonomic dimensions facilitate easy transport and setup in challenging environments, from tight urban utility corridors to remote industrial sites. This ease of use ensures that technicians can deploy the generator quickly, reducing setup time and increasing productivity on the job site.
When considering the Megger SWG 505 Price, the accessibility of the unit in terms of cost makes it a popular choice for companies seeking to equip their teams with essential diagnostic tools without a significant financial outlay. The construction of the device prioritizes durability, ensuring that it can withstand the rigors of daily field use while maintaining calibration accuracy. For procurement managers looking to balance budget constraints with performance requirements, the SWG 505 represents a strategic investment that delivers long-term value through reduced maintenance costs and extended equipment lifespan.
Understanding Voltage Ranges and Energy Output
The Megger SWG 505 operates across three distinct voltage ranges, each optimized for specific diagnostic requirements. The ability to switch between 3 kV, 4 kV, and 5 kV allows operators to tailor the surge energy to the sensitivity of the cable under test. This flexibility is crucial because different insulation types and cable ages react differently to surge voltages. By selecting the appropriate voltage range, technicians can avoid damaging healthy cables while ensuring that faults are sufficiently energized to produce a clear reflection signature for analysis.
Energy delivery is a critical metric in surge testing, and the SWG 505 provides distinct energy levels corresponding to its voltage settings. At the lower end, the unit delivers 180 Joules, scaling up to 320 Joules and finally 500 Joules at the maximum 5 kV setting.
