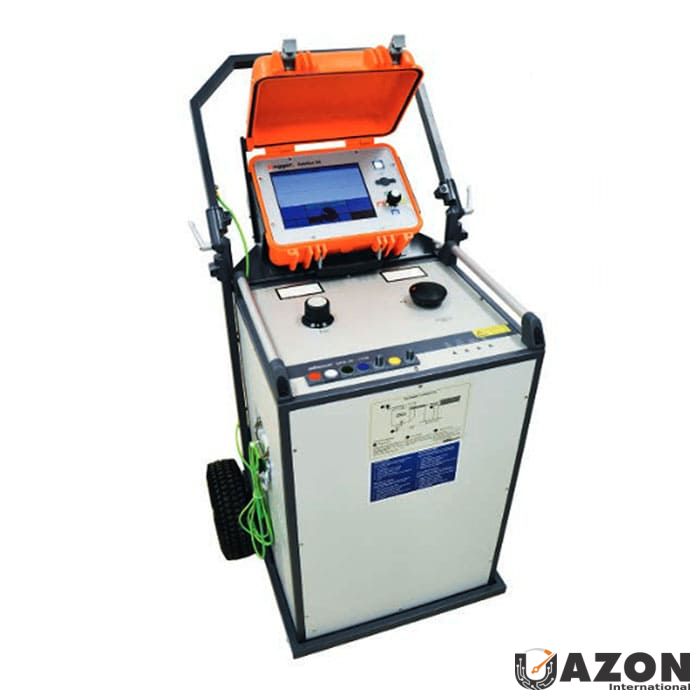

Buy Megger SFX32 Cable Test And Fault Location System
Locating faults on low and medium voltage cables requires precision, speed, and reliable equipment. The Megger SFX32 Cable Test and Fault Location System addresses these needs with a mobile, high-performance solution designed for utility engineers and cable technicians. When you buy the Megger SFX32, you invest in a system that combines high-voltage surge capability with advanced prelocation technologies, minimizing cable downtime and restoration costs. Understanding the Megger SFX32 price involves evaluating the cost of specialized labor hours saved through faster fault identification. This system is engineered to handle the rigorous demands of field environments while delivering laboratory-grade accuracy.
Technical Features And Field Applications Of The Megger SFX32
The Megger SFX32 is engineered to deliver versatile testing capabilities in a single, modular unit. Its design prioritizes mobility and ease of use, allowing technicians to transport the system easily to remote job sites. Before examining the detailed specifications below, it is essential to understand how these features translate to real-world field applications.
- High performance fault location systems: The SFX32 is built to detect and pinpoint faults that traditional testers might miss, ensuring rapid restoration of service.
- 0.1% accuracy: This level of precision in measurement reduces the margin of error, allowing technicians to dig exactly where the fault exists rather than excavating entire cable routes.
- Detachable, battery-operated TDR: The Time Domain Reflectometer (TDR) can be used independently of the main unit, enabling detailed cable analysis without requiring a direct connection to high-voltage power sources immediately.
- Sophisticated ARM®-Multishot technology: The Arc Reflection Method (ARM) is integrated with multishot capabilities, allowing for multiple surge applications to condition faults effectively without manual resetting between attempts.
- HV and LV prelocation in one modular unit: Technicians do not need to carry separate devices for high voltage and low voltage applications, streamlining the equipment load and setup time.
- High surge energy: The system delivers substantial energy per surge, which is critical for overcoming high-resistance faults that are otherwise difficult to locate.
- Multi-stage surge capacitors: These capacitors enhance the stability of the surge output, ensuring consistent performance during repetitive testing cycles.
Advanced Arc Reflection Method For High-Resistance Faults
One of the most significant challenges in cable testing is dealing with high-resistance faults, which often defy simple impedance measurements. The Megger SFX32 utilizes the powerful Arc Reflection Method (ARM) to prelocate these faults with efficiency up to 32 kV. This method works by injecting a high-voltage surge into the cable, which causes the fault to arc over. The resulting reflection is analyzed to pinpoint the fault location along the cable length.
For utility companies managing aging infrastructure, the ARM technology offers a reliable way to identify faults that are not visually apparent. When you consider the Megger SFX32 price, the inclusion of this advanced methodology adds significant value by reducing the time spent on manual fault hunting. The system’s ability to operate at up to 32 kV ensures that even the most stubborn faults on medium voltage cables can be prelocated accurately.
Conditioning Faults With Short-Term Burning
Some faults require conditioning before they can be accurately prelocated using standard surge methods. The Megger SFX32 supports short-term burning at all voltage levels, allowing technicians to lower the resistance of the fault point. This process is crucial for high-resistance faults that may not produce a clear arc reflection immediately.
By integrating burning capabilities directly into the system, the SFX32 eliminates the need for additional equipment. This feature is particularly beneficial when working with older cables where insulation degradation has created complex fault paths. When you buy the Megger SFX32, you gain a versatile tool that handles both immediate prelocation and necessary fault conditioning steps within a single workflow.
Modular Design And Portability For Field Efficiency
Field conditions often dictate the success or failure of a cable testing project. The Megger SFX32 is designed as a mobile system, ensuring that it can be easily transported and deployed in various environments. The modular nature of the unit means that components can be separated or combined based on the specific requirements of the job.
The detachable TDR is a prime example of this design philosophy. By operating on battery power, the TDR can be used independently for preliminary cable analysis without requiring the main high-voltage unit to be powered on. This flexibility allows for a more efficient workflow, where data collection and high-voltage testing can occur in sequence without unnecessary delays.
