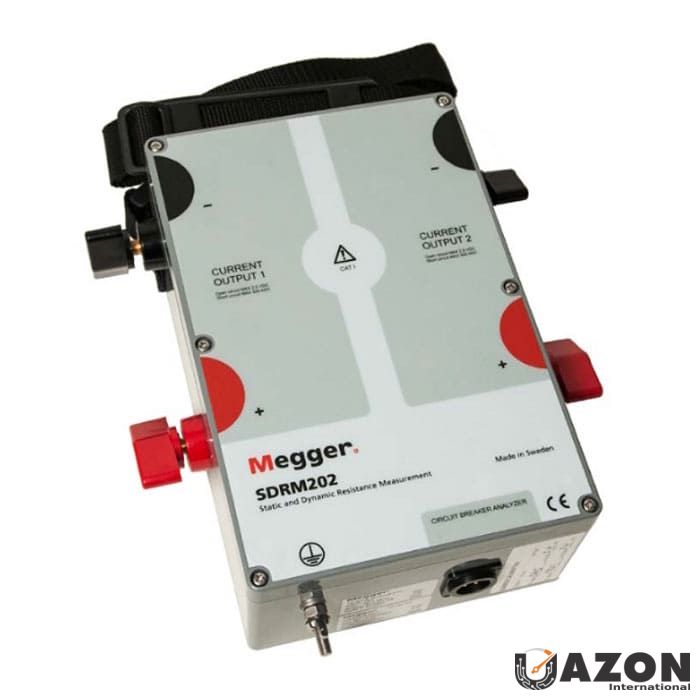

Understanding the Megger SDRM202 for Circuit Breaker Diagnostics
High-voltage circuit breakers are critical components in electrical infrastructure, and their operational reliability hinges on the condition of their contacts. Over time, contact surfaces can degrade, leading to increased resistance, which in turn generates excessive heat and potential failure during switching operations. To address this, precise measurement tools are required to detect minute changes in resistance, both when the breaker is stationary and in motion. The Megger SDRM202 is a specialized instrument designed to meet these exact needs, offering robust capabilities for both static and dynamic resistance measurements on high-voltage breakers and other low-resistive devices.
This device allows maintenance teams to move beyond simple static checks, providing insight into the health of the breaker throughout its operational cycle. By utilizing the SDRM202, engineers can visualize resistance as a function of time, identifying contact wear, contamination, or misalignment with high precision. For those looking to acquire this essential diagnostic tool, the Megger SDRM202 price represents a valuable investment in predictive maintenance and grid reliability.
Technical Features and Field Applications of the Megger SDRM202
The versatility of the Megger SDRM202 lies in its ability to perform both Static Resistance Measurement (SRM) and Dynamic Resistance Measurement (DRM). SRM provides a baseline resistance value when the breaker is closed, while DRM tracks resistance changes as the contacts open or close, revealing issues like dragging contacts or uneven wiping surfaces. This comprehensive approach ensures that potential faults are identified before they lead to catastrophic failure. When you buy the Megger SDRM202, you are investing in a solution that bridges the gap between simple contact resistance testing and detailed dynamic analysis.
To maximize its functionality, the SDRM202 is designed to operate seamlessly with specific test sets, including the TM1800 and TM1700. Used together, these units measure the current and the voltage drop across the circuit breaker contacts simultaneously. The SDRM202 measuring unit then calculates the resistance as a function of time, presenting the data in a clear, actionable format. This integration is vital for users who require a complete testing ecosystem without the complexity of incompatible equipment.
Connectivity and Accessories for Seamless Operation
Effective field testing requires reliable connectivity, and the Megger SDRM202 is equipped with a dedicated SDRM Cable system to ensure secure connections. The SDRM Cable is not merely a wire but a small box with integrated cables specifically designed for connection to the SDRM202 and the compatible test sets—TM1800, TM1700, or EGIL. This specialized design minimizes connection errors and reduces setup time in the field. For those considering the Megger SDRM202 price, the inclusion of these tailored accessories adds significant value to the overall package.
The SDRM Cable is available in three distinct versions to match different test sets: one for the TM1800, one for the TM1700, and one for the EGIL. This ensures that regardless of your existing Megger equipment, the SDRM202 can be integrated smoothly into your workflow. Additionally, the unit comes with standard current cables and an extension cable, providing the reach and flexibility needed for testing various breaker configurations. When you buy the Megger SDRM202, you receive a complete kit ready for immediate deployment.
Power and Performance Specifications of the Megger SDRM202
Understanding the power requirements and physical dimensions of the Megger SDRM202 is essential for planning field operations and storage. The unit operates on a 24 V DC power supply, with a maximum current draw of 2.5 A. It is designed to function within a voltage range of 21 V DC (min) to 24 V DC (max), ensuring stable performance even in environments with slight power fluctuations. These specifications are critical for users who need reliable equipment in remote or demanding locations.
Physically, the Megger SDRM202 is compact and portable, measuring 160 x 240 x 90 mm (6.3” x 9.4” x 3.5”) excluding binding posts. Weighing just 1.8 kg (4 lbs) on its own, or 4.3 kg (9.5 lbs) when including current cables, the unit is easy to transport between test sites. When packed in its transport case with accessories, the total weight is 11 kg (24 lbs), making it manageable for field technicians.
