Understanding The Critical Need For Partial Discharge Detection
Defects in medium and high voltage systems present a significant financial risk to network operators. These defects not only require costly repairs but can also cascade into failures of entire network sections, causing extensive downtime and safety hazards. Recognizing the signs of impending equipment failure as early as possible is a priority for all utility managers and maintenance engineers. Early detection allows for the implementation of appropriate countermeasures before a minor anomaly turns into a catastrophic outage. By moving from reactive maintenance to predictive strategies, operators can safeguard their infrastructure and ensure continuous service delivery.
Technical Features And Field Applications Of The Megger PD Scan Online PD Handheld Scanner

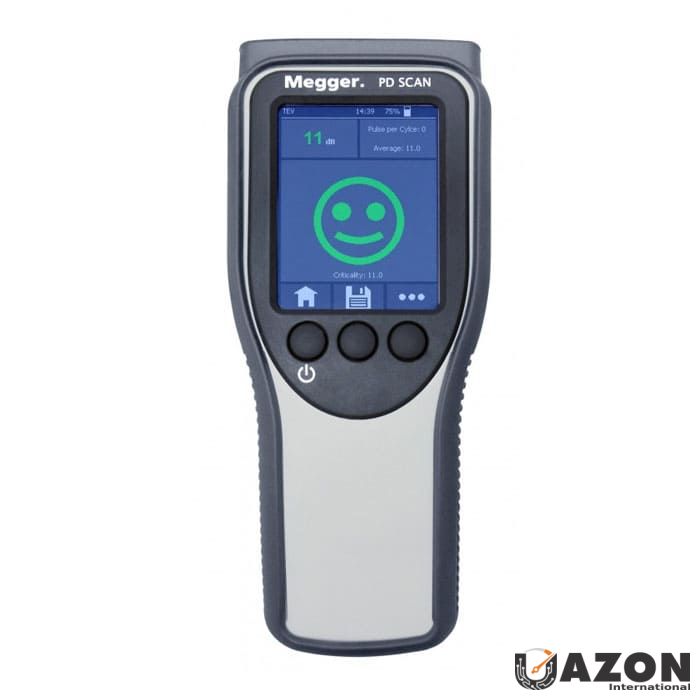

To address the growing demand for reliable, on-site diagnostics, Megger introduced the PD Scan. This device is a lightweight, robust, and portable PD scanner engineered to quickly inspect various types of equipment for partial discharge signals. The MEGGER PD Scan Online PD Handheld Scanner is an advanced diagnostic tool specifically designed for the real-time detection and analysis of partial discharge (PD) activities in electrical equipment. This portable device is essential for ensuring the health and longevity of high-voltage systems, including switchgear, transformers, and rotating machines. For those looking to buy the Megger PD Scan, understanding its field applications and technical specifications is key to maximizing its value.
When considering the price of the Megger PD Scan, it is important to evaluate the cost against the potential savings from avoiding unplanned outages. Below, we explore the key technical features and how they translate into practical benefits for field technicians and engineers.
Real-Time PD Detection and Immediate Analysis
One of the most critical aspects of the MEGGER PD Scan Online PD Handheld Scanner is its capability to detect partial discharge activities as they occur. Real-time analysis is crucial for identifying potential problems before they lead to failure, allowing for timely maintenance and repairs. Unlike offline testing methods that require system downtime, this handheld scanner enables operators to monitor equipment while it is live, providing instant data on insulation health. This immediacy reduces the window of risk and allows for rapid decision-making in high-stakes environments.
Portability and Ergonomic Design
The device’s handheld design makes it highly portable and easy to use in a variety of field conditions. Weighing only 420 grams, the PD Scan is significantly lighter than traditional diagnostic equipment, reducing operator fatigue during long inspection shifts. Its compact size—measuring just 220 x 80 x 30 mm—allows technicians to access hard-to-reach areas within electrical installations, making it an invaluable tool for on-site inspections. Whether navigating crowded switchgear rooms or inspecting remote substations, the ergonomic design ensures that the device can be deployed quickly and efficiently.
User-Friendly Interface and Operational Efficiency
Complex diagnostic tools often require extensive training, but the PD Scan features a user-friendly interface designed for rapid adoption. The device includes a 3.5-inch touchscreen with a resolution of 320 x 240 pixels, providing clear visual feedback. Combined with intuitive controls and three soft keys, the interface simplifies the process of monitoring and diagnosing issues. This accessibility is vital for both experienced professionals who need quick data access and those new to PD detection who require a straightforward user experience. The best price on the Megger PD Scan becomes even more justified when considering the reduced training time and increased inspection speed.
Versatile Application Across High-Voltage Equipment
The MEGGER PD Scan Online PD Handheld Scanner is not limited to a single type of asset. It can be used on all types of high-voltage equipment, including open terminal stations, metal-clad switchgear, and cable terminations. This versatility makes it an ideal choice for utilities, industrial plants, and service companies dealing with diverse high-voltage assets. By standardizing on a single handheld device for multiple inspection tasks, organizations can streamline their inventory and reduce the need for specialized, single-purpose tools.
Data Logging, Analysis, and Predictive Maintenance
Robust data logging capabilities are integral to the MEGGER PD Scan. The device allows for detailed analysis and historical tracking of PD activity, which is critical for trending analysis and predictive maintenance planning. By recording measurements over time, technicians can identify gradual changes in insulation health and schedule maintenance interventions proactively. This data also provides essential documentation for maintenance records, compliance audits, and warranty claims. For operators focused on long-term asset management, the ability to log and analyze data is a significant advantage.
