Megger MVCT VT And CT Analyzer: The Ultimate Guide For Transformer Testing

Transformer testing is a critical component of power system maintenance, requiring precision, portability, and comprehensive capability. The Megger MVCT (Magnetization Voltage and Current Transformer) test set is a lightweight, robust, and portable unit designed to test both current and voltage transformers efficiently. At less than 20 lbs (10 kg), the MVCT is a highly portable device that does not compromise on accuracy. For procurement teams and field engineers looking to secure the best testing equipment, the Megger MVCT Price offers exceptional value considering its dual-functionality and advanced automation. This analyzer simplifies complex testing procedures, making it an indispensable tool for utility substations, manufacturing facilities, and field service applications.

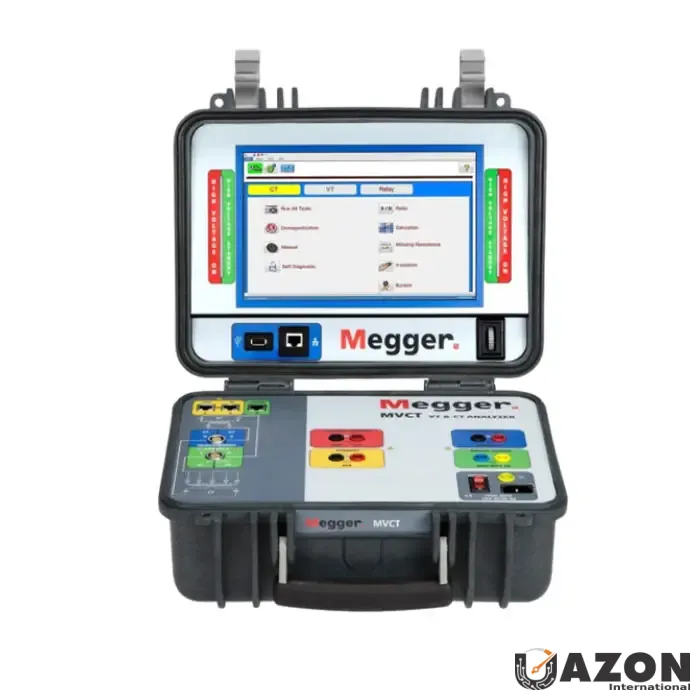

The Megger MVCT is a microprocessor-controlled device that offers variable voltage and current outputs, along with precision instrumentation. It is specifically engineered for the automated testing of single and multi-ratio CTs and VTs. By directly connecting to multi-ratio transformers and performing all necessary tests with a single button press, the MVCT eliminates the need for manual lead changes. This efficiency significantly reduces testing time and minimizes human error. For professionals seeking to buy a reliable transformer analyzer, the Megger MVCT stands out as a premier choice due to its comprehensive feature set and rugged design tailored for field conditions.

Technical Features And Field Applications Of The Megger MVCT

Understanding the technical specifications and how they translate to real-world applications is essential when evaluating the Megger MVCT Price and functionality. The device is engineered to handle a wide array of diagnostic tasks without the bulk of traditional test equipment. Below, we explore the core technical features and their practical applications in industrial and utility environments.

• Comprehensive Testing Capabilities: The MVCT analyzer offers a wide range of tests for both voltage transformers (VT) and current transformers (CT). It can perform turns ratio, excitation current, polarity, winding resistance, and secondary burden tests. These capabilities are crucial for verifying the operational integrity of transformers before they are commissioned or during routine maintenance. By consolidating these tests into one device, technicians can avoid carrying multiple instruments.
• High Accuracy and Standards Compliance: This analyzer provides high-precision measurements essential for critical assessments. Accurate data ensures compliance with international standards, which is non-negotiable in high-voltage environments. When you buy the Megger MVCT, you are investing in instrumentation that delivers reliable results, reducing the risk of false positives during safety checks.
• Intuitive Ease of Use: Designed with the user in mind, the MVCT features an intuitive interface and a large, clear display. This facilitates easy operation and data review, even in difficult field conditions such as low light or high noise. The microprocessor control automates complex calculations, allowing technicians to focus on interpretation rather than manual data entry.
• Exceptional Portability: The device is relatively compact and lightweight for a transformer analyzer, weighing under 20 lbs. This portability makes it suitable for field testing where mobility is necessary. Technicians can easily carry the MVCT up ladders or across large substations without fatigue, ensuring that testing is performed consistently and on schedule.
• Automated Test Sequences: The MVCT supports automated test sequences that streamline the testing process. By automating saturation, ratio, polarity, winding resistance, and insulation tests across all taps with a single button press, the device reduces the potential for human error and saves valuable time during maintenance checks. This automation is a key factor in lowering the total cost of ownership.

Industrial Applications And Operational Benefits

The versatility of the Megger MVCT allows it to be deployed across various sectors, from utility substations to manufacturing floors. Understanding these applications helps justify the Megger MVCT Price by highlighting its return on investment through improved reliability and efficiency. The following sections detail where this analyzer excels and the specific benefits it delivers to technicians and engineers.

• Utility Substation Maintenance: In utility substations, the MVCT is extensively used for routine diagnostics and maintenance. It ensures that VTs and CTs are functioning correctly to maintain system reliability and accuracy. Regular testing with this analyzer helps prevent costly downtime by identifying transformer degradation early. The ability to test multi-ratio transformers without changing leads is a significant time-saver in large-scale utility operations.
• Manufacturing Quality Assurance: In facilities where VTs and CTs are manufactured, the MVCT is used to perform final checks before the transformers are shipped. This ensures they meet all operational specifications and quality standards.
