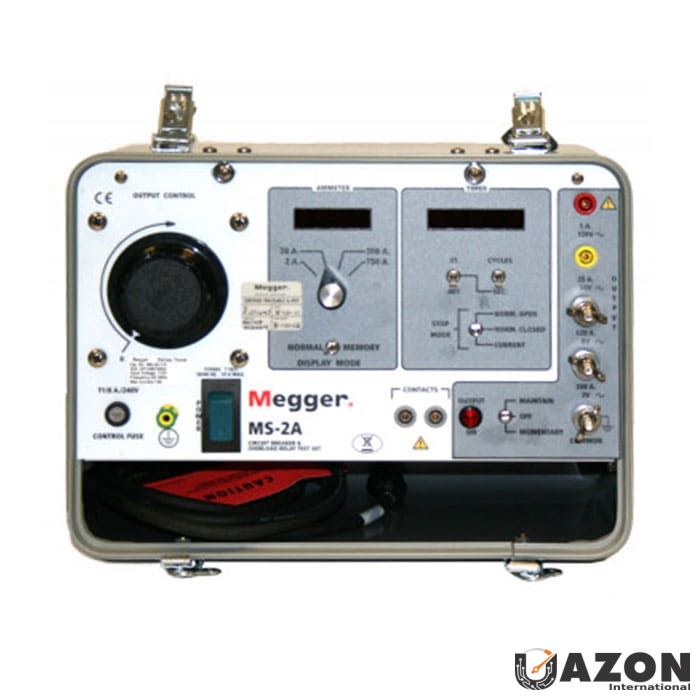

Megger MS2A Circuit Breaker Relay Test Set

Buy Megger MS2A Circuit Breaker Relay Test Set for Precision Electrical Testing

The Megger MS2A Circuit Breaker Relay Test Set is an industry-standard instrument designed for high-precision testing of protective relay systems and circuit breakers. As a primary injection test instrument, it is engineered to deliver crystal-controlled accuracy, making it a trusted tool for utility companies, industrial maintenance teams, and electrical service organizations globally. When you buy the Megger MS2A, you are investing in a portable, robust solution that ensures the reliability and safety of critical electrical infrastructure.

For professionals seeking the best price on reliable testing equipment, the MS2A offers an exceptional balance of performance and portability. Its lightweight design does not compromise its capability, allowing for easy transport to field sites where precise overcurrent relay testing is required. This device is essential for maintaining compliance with safety standards and ensuring that protective devices operate exactly as designed.

Technical Features and Field Applications of the Megger MS2A Circuit Breaker Relay Test Set

Understanding the technical features of the Megger MS2A is key to maximizing its utility in the field. The instrument is not just a current generator; it is a comprehensive test system that integrates measurement and control for detailed diagnostic analysis. Below, we explore the core capabilities that make this test set a vital asset for electrical professionals.

• Millisecond Precision Timing: One of the standout features of the MS2A is its ability to measure operating times with millisecond precision. This capability is crucial for analyzing the time-delay characteristics of overcurrent relays, motor overload relays, and molded-case circuit breakers rated up to 125 amperes. By following recommended test procedures, users can evaluate device integrity at three times the rated current.
• High Current Output Capability: In scenarios requiring significant current output, the MS2A excels by providing short-duration currents up to 750 amperes. This high-output feature is specifically designed for testing the instantaneous trip elements of circuit breakers, allowing for precise calibration and verification of protective functions during emergency fault conditions.
• Earth and Ground Fault Testing: The MS2A is optimized for earth and ground fault performance testing, aligning with NEC 230.95 requirements. This makes it an ideal solution for testing ground fault protection devices with window CTs during initial installation. The device provides the necessary capabilities to conduct these efficiency tests, ensuring compliance with mandatory safety standards.
• Adjustable Output Ranges: The test set features continuously adjustable output ranges to accommodate a variety of test-circuit impedances. These ranges include 0 to 5 A at 120 V, 0 to 25 A at 24 V, 0 to 120 A at 6 V, and 0 to 240 A at 3 V. This versatility ensures that the MS2A can handle diverse testing scenarios without requiring additional equipment.
• Advanced Ammeter System: Equipped with a 3.5-digit, extra-bright LED display, the MS2A offers clear visibility in various lighting conditions. The ammeter system features switch-selected ranges from 0 to 750 A with an overall accuracy of ±1% of reading, ensuring reliable data collection for critical maintenance reports.

Operational Efficiency and Safety Specifications

Operational efficiency is a priority in the design of the Megger MS2A. The instrument is built to withstand the rigors of field use while maintaining strict safety standards. Its overload capability allows for short-duration exceedances of current ratings, provided the voltage is sufficient to push the desired current through the test circuit impedance.

Safety is paramount when dealing with high currents, and the MS2A incorporates specific duty cycles to manage thermal limits. The device features selectable operating modes, including Memory and Normal settings, which streamline the testing process for repetitive tasks. When considering the Megger MS2A price, it is important to factor in the durability and long-term reliability that reduce downtime and maintenance costs.

Understanding Output Capacity and Load Impedance

The output circuit of the MS2A is designed to permit short-duration overloads, providing several times the rated current when the output voltage is sufficient to overcome the impedance of the test circuit. This capability is essential for testing devices rated up to 125 A using a test current of three times their rating (375 A).
