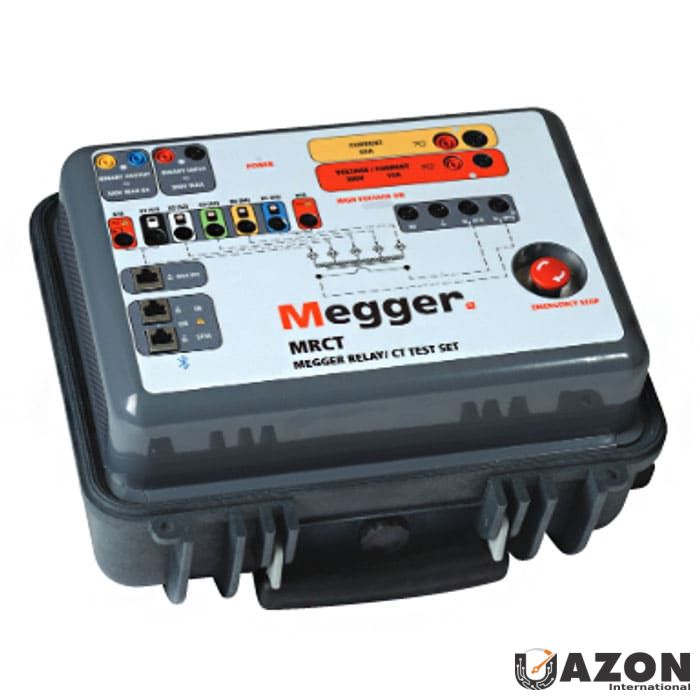

Understanding the Megger MRCT: An All-In-One Transformer Testing Solution
Current transformers (CTs) are critical components in electrical protection and metering systems, and their reliability is non-negotiable. The Megger MRCT represents a significant leap forward in portable testing technology, combining multiple testing capabilities into a single, lightweight unit. Designed for field engineers and substation technicians, this device eliminates the need to carry multiple instruments, streamlining the testing process for single and multi-ratio CTs. Whether you are performing routine maintenance or commissioning new installations, the MRCT provides the precision and durability required for high-stakes environments.
When looking to buy the Megger MRCT, buyers are investing in a microprocessor-controlled solution that automates complex calculations. This automation reduces human error and significantly cuts down testing time, thereby increasing field productivity. The unit’s robust construction ensures it can withstand harsh transport conditions, while its portable form factor allows for easy deployment in tight substation switchgear areas.
Technical Features and Field Applications of the Megger MRCT
The core value of the Megger MRCT lies in its ability to perform a comprehensive suite of tests with minimal setup. It provides a variable voltage and current output that is precision-instrumented, allowing for accurate demagnetization, ratio analysis, saturation curves, winding resistance checks, polarity verification, and phase deviation measurements. The device automatically calculates ratio errors and identifies knee points, removing the manual burden from the technician.
One of the standout features is its ability to connect directly to multi-tap CTs. Without the need to physically change leads between taps, the MRCT can execute saturation, ratio, polarity, winding resistance, and insulation tests across all taps with the push of a button. This capability is a major time-saver for utilities managing complex transformer banks. For those seeking the best price on a versatile tester, the MRCT’s multi-functionality offers exceptional value by replacing several single-purpose tools.
- Automated Testing Capabilities: The unit automatically generates saturation curves and calculates knee points, providing immediate visual and numerical data for analysis.
- Multi-Tap Testing: Perform tests on all CT taps without manual lead changes, significantly reducing setup time in the field.
- Demagnetization Function: Built-in demagnetization capabilities ensure that core remanence is eliminated prior to testing, ensuring accurate results.
- Winding Resistance Measurement: The MRCT measures winding resistance to detect loose connections or degraded windings within the transformer.
- Insulation Testing: It includes insulation testing to verify the integrity of the insulation between windings and ground.
Advanced Control Interface and Visualization
User interaction with the Megger MRCT is facilitated through the Smart Touch View Interface (STVI), a full-color, high-resolution LCD touch screen. This interface is designed for speed and ease of use, allowing technicians to navigate manual test screens or select pre-constructed test routines with intuitive gestures. The large display ensures that all pertinent data—including live voltage, current, and phase angles—are visible at a glance without clutter.
For users who prefer alternative control methods, the MRCT can be configured without the built-in STVI and controlled via a laptop running Megger’s PowerDB software. This flexibility allows for centralized data logging and report generation directly from a PC. When considering the Megger MRCT price, the inclusion of such versatile control options adds significant value to the purchase, catering to both standalone field use and integrated system workflows.
- STVI Controller: A full-color LCD touch screen that supports both manual testing and automated routines for rapid deployment.
- Saturation Curve Visualization: The large display permits real-time viewing of the transformer’s saturation curve during testing.
- Software Integration: The unit is compatible with PowerDB software for laptop control and comprehensive data management.
- Pre-Constructed Routines: Save time by loading standard test routines, ensuring consistent testing procedures across multiple sites.
Power Input and Output Specifications
The Megger MRCT is engineered to operate on standard single-phase utility power, making it universally applicable in global field conditions. The input voltage flexibility allows the unit to be connected to both low-voltage (100–132 V) and high-voltage (200–264 V) sources without external transformers. The output capabilities are equally versatile, featuring three distinct voltage ranges to accommodate various CT ratios and insulation levels.
