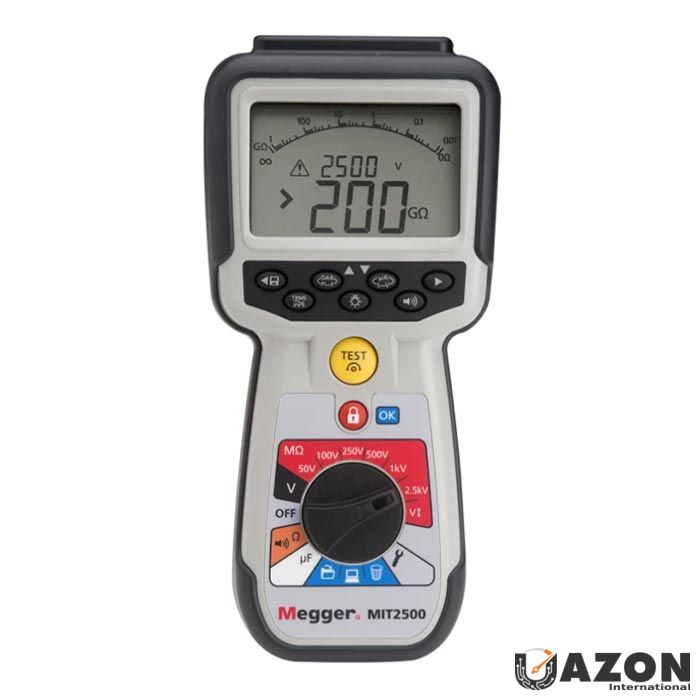

Buy Megger MIT2500 – High-Voltage Insulation Resistance Testing for Industrial Field Teams
When standard 1000 V insulation meters hit their limit, maintenance professionals need a tougher, more versatile tool. The Megger MIT2500 handheld tester pushes test voltage all the way to 2.5 kV while fitting in a rugged, carry-anywhere frame. If you maintain motors, generators, high-voltage panels, or long cable runs, the ability to fine-tune test voltage pays off in accurate diagnostics, faster fault finding, and safer working conditions.
Technical Features and Field Applications of the Megger MIT2500
This section walks through the core specifications and how each translates into everyday value on the plant floor or in a commissioning bay.
- Selectable test voltage ladder from 50 V to 2500 V. Typical routine tests on 460 V motors can be carried out at 500 V or 1000 V, while 4160 V drives or generator terminations benefit from the instrument’s full 2.5 kV.
- Variable test voltage range. A continuously adjustable 50–2500 V window allows custom stress levels required by OEM test procedures or insurance audits.
- ±2 % test voltage feedback control. The active load regulation keeps the delivered voltage within two percent of the set point, even on highly capacitive or inductive equipment such as shielded 750 MCM cables or large switchgear bus bars.
- Dual numeric display. Small digital readout shows actual test voltage, while the large display gives insulation resistance value—handy when you need both readings in one glance and cannot afford to scroll menus in PPE gloves.
- 0.01 Ω to 1.0 MΩ continuity range. Swap from megohm diagnostics to low-resistance bonding or motor rotor integrity without changing meters.
- Bi-directional continuity. Leads stay connected; the MIT2500 alternates polarity for differential measurements, cutting connection time in half during repetitive panel checks.
- Rugged IP case. The sealed enclosure and shock-absorbing holster withstand drops from step ladders or being strapped to a forklift maintenance cart.
Best Price Value: How the MIT2500 Pays for Itself After One Preventive Maintenance Cycle
High-voltage insulation failures in production machinery can cost thousands per hour in lost output. Investing in the Megger MIT2500 now saves money by catching problems before they cascade. Field teams report that the first averted downtime event typically exceeds the purchase price of the instrument, and the ability to test at precisely 1500 V, 2000 V, or 2500 V eliminates the need to rent secondary high-pot equipment. For procurement teams evaluating total cost of ownership, this single handheld unit replaces two legacy instruments: a 1 kV megohmmeter and a basic continuity meter.
Compliance and Safety Advantages in Industrial Electrical Work
Regulatory bodies and insurers increasingly require insulation resistance testing above 1000 V for critical rotating machines and medium-voltage feeders. The MIT2500 meets these mandates while simplifying test setup. A built-in safety lockout only energizes the terminals after the operator holds the test button, lowering arc-flash risk. The voltmeter-grade feedback loop also confirms rapidly falling voltage when testing ends, reducing stored-energy hazards on long cables.
Practical Test Cases That the MIT2500 Handles Out of the Box
Beyond bench specifications, the real question is whether a tool works in the messy, noisy environments where critical gear lives. The following scenarios illustrate how contractors and facility managers deploy the MIT2500 daily.
- High-pressure pump motors in wastewater plants. These 2300 V motors see moisture, chemical vapors, and load swings. Testing at 2500 V reveals developing turn-to-turn faults long before overload relays nuisance-trip.
- Temporary generator sets on film or outdoor concert crews. Variable loads and vibration can loosen windings. Fast bi-directional continuity checks every time the unit is moved ensure dependable backup power.
- Emergency elevator traction machines. High operating altitude, plus stop-and-go acceleration, stresses feeder cables. Using variable 1000–1500 V values highlights early insulation breakdown while hotel guests wait in the lobby.
- Ship-to-shore high-voltage shore power reels. Salt air and mechanical flexing shorten insulation life; 2 kV tests verify compliance with port authority inspection schedules.
