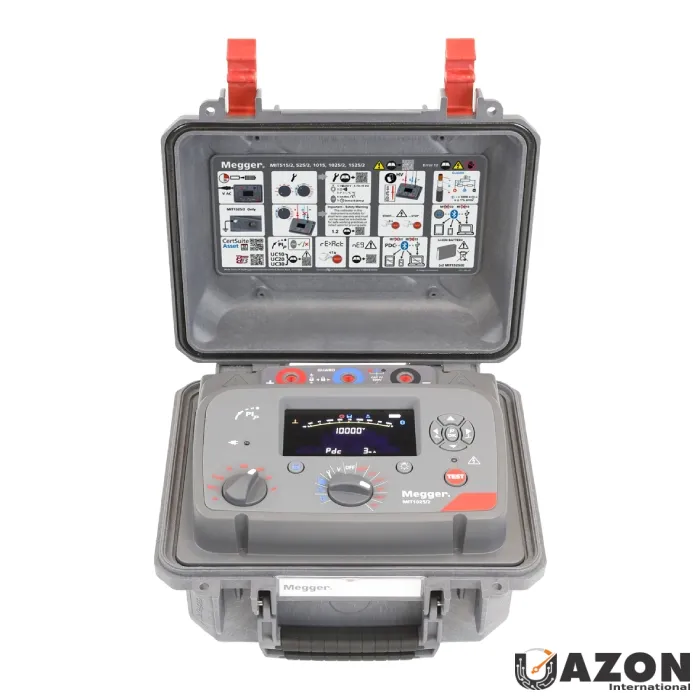

Megger MIT1025/2 Insulation Resistance Tester – Advanced Diagnostic Megohmmeter
The Megger MIT1025/2 is a state-of-the-art 10 kV insulation resistance tester engineered for in-depth diagnostic testing of high-voltage electrical systems. As part of the manufacturer’s advanced MIT series, this instrument bridges the gap between basic "go/no-go" testing and complex diagnostic analysis. It is designed specifically for maintenance professionals who require precision, reliability, and user-centric controls in the field. When looking for the best combination of performance and value, the Megger MIT1025/2 Price represents an investment in long-term equipment reliability and safety.
Technical Features and Field Applications of the Megger MIT1025/2
Understanding the technical specifications of the Megger MIT1025/2 is essential for maximizing its utility in demanding environments. The tester is not merely a device for measuring resistance; it is a comprehensive diagnostic toolset designed to predict insulation failure before it causes catastrophic downtime. By leveraging its advanced features, technicians can gather critical data points that inform maintenance schedules and asset management strategies.
- Comprehensive Test Modes: The unit supports a wide array of diagnostic tests, including Insulation Resistance (IR), Dielectric Absorption Ratio (DAR), Polarization Index (PI), Step Voltage (SV), Dielectric Discharge (DD), and Ramp Test. These modes allow for a layered approach to diagnostics. For instance, the Ramp Test applies voltage gradually, helping identify surface tracking or stress grading issues that might be missed during a standard step-voltage test. This versatility makes the instrument suitable for testing transformers, cables, motors, and switchgear.
- High Noise Immunity: One of the most challenging aspects of high-voltage testing is electrical noise, often caused by variable frequency drives or high-voltage switching environments. The MIT1025/2 features enhanced noise rejection, capable of filtering out interference up to 3 mA. This ensures that resistance readings remain accurate and stable, preventing false data that could lead to unnecessary maintenance or overlooked faults.
- Advanced Data Management: Modern asset management relies on historical data. The MIT1025/2 is equipped with advanced internal memory that allows operators to store test results complete with time and date stamps. This data can be transferred via a USB interface to PowerDB Lite software (often included), facilitating trend analysis and compliance reporting. This capability is vital for facilities looking to transition from reactive to predictive maintenance strategies.
- User-Friendly Interface: Speed and ease of use are critical during field operations. The tester utilizes two intuitive rotary switches for selecting voltage and test functions, complemented by a large, high-visibility backlit display. The screen is capable of showing multiple readings simultaneously, such as resistance, voltage, leakage current, capacitance, and elapsed time. This multi-line display eliminates the need to scroll through menus, saving valuable time during testing windows.
- Robust Construction: Field equipment must withstand harsh conditions. The MIT1025/2 is built with a unique dual-case design. An inner fire-retardant case is encased in a tough, impact-resistant outer shell. This construction meets IP65 standards when closed, providing total protection against dust and moisture ingress. This ruggedness ensures the tester remains operational even if dropped or exposed to inclement weather.
- Flexible Power Options: To maximize productivity, the unit features a rapid-charge Lithium-ion battery system. A quick 30-minute charge can provide over an hour of continuous testing at full 10 kV output. Furthermore, the instrument can be powered directly from AC mains, meaning testing can continue even if the battery is depleted. This "dead battery" operation is a crucial feature for uninterrupted workflow on critical maintenance projects.
- Safety Compliance: Safety is paramount when handling high-voltage equipment. The MIT1025/2 is rated CAT IV 600 V, offering the highest level of protection for testing at the source of installation. The terminals are designed to minimize the risk of accidental contact, and the unit includes robust shielding to protect the operator from transient voltages and electrical faults.
Why Professionals Choose the Megger MIT1025/2
For professionals in electrical maintenance, utilities, and industrial sectors, the decision to buy a specific tool often comes down to accuracy and longevity. The Megger MIT1025/2 is widely regarded as the industry standard for 10 kV insulation testing because it offers a balance of portability and capability. Its ability to measure resistance up to 20 TΩ (20,000 GΩ) allows
