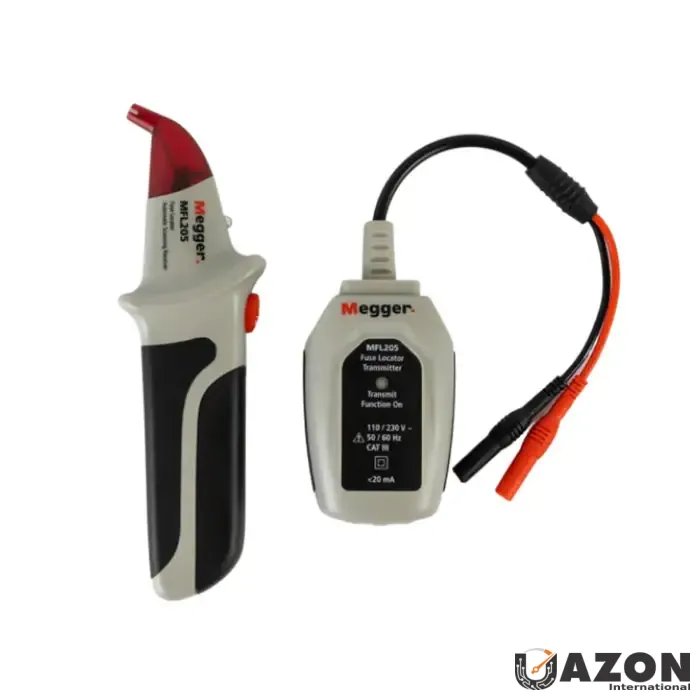

Reliable Fuse and Circuit Breaker Identification with the Megger MFL205
Electrical troubleshooting often begins with the critical task of identifying the correct fuse or circuit breaker associated with a specific circuit. In environments with multiple circuits, such as residential consumer units or complex industrial fuse boards, finding the right protective device without disrupting power can be challenging. The Megger MFL205 is engineered to solve this problem with precision and ease. This easy-to-operate device is specifically intended for identifying targeted fuses or circuit breakers, allowing electricians and maintenance professionals to work efficiently and safely. By utilizing a transmitter and receiver system, the MFL205 eliminates the guesswork involved in tracing circuits, ensuring that the correct breaker is isolated before any work begins. For professionals seeking a reliable solution to streamline their workflow, the Megger MFL205 offers a compelling combination of performance and user-friendliness, making it a valuable addition to any toolkit.
Technical Features and Field Applications of the Megger MFL205
Understanding the technical capabilities of the Megger MFL205 reveals why it is a preferred choice for electricians who demand accuracy. The device is designed with practical field applications in mind, featuring industry-standard 4mm connectors that allow the transmitter to be directly connected to a circuit using the included red and black crocodile clips. This direct connection method ensures a secure and reliable link to the target circuit. Furthermore, with appropriate adapters, the MFL205 can be connected to a mains socket outlet or a light socket of the circuit protected by the fuse or breaker that needs to be identified. This versatility makes it suitable for a wide range of residential, commercial, and industrial environments. The device's design prioritizes safety and simplicity, enabling users to operate it with confidence even in demanding conditions.
The Megger MFL205 is not just about connection; it is about intelligent operation. One of its standout features is the Auto-Sensitivity adjustment, which automatically optimizes the receiver's responsiveness to the signal from the transmitter. This eliminates the need for manual calibration in most scenarios, reducing setup time and potential errors. The device provides both audible and visual indication, offering clear feedback to the user regardless of ambient lighting or noise levels. This dual-mode indication ensures that the identification process is both intuitive and reliable. Whether you are working in a brightly lit panel room or a dimly lit basement, the Megger MFL205 delivers consistent performance, making it an indispensable tool for efficient circuit tracing.
Power and Operational Specifications for the Megger MFL205
Operational reliability is a cornerstone of the Megger MFL205's design, supported by a range of specifications that ensure consistent performance in various conditions. The device operates on a standard 110/230 V, 50/60 Hz power supply, making it compatible with electrical systems across different regions. Its low current consumption of less than 20 mA ensures minimal load on the circuit being tested, preserving system integrity during the identification process. The receiver is powered by a single 9 V PP3 alkaline battery, providing an impressive battery life of over 40 hours. This extended runtime minimizes downtime and reduces the frequency of battery replacements, enhancing productivity on the job site.
The Megger MFL205 is built to withstand the rigors of field use, with an operating temperature range of 0° to 40 °C (32 °F to 104 °F) and a storage temperature range of 0° to 50 °C (32 °F to 122 °F) at less than 95% relative humidity. Its IP50 rating provides basic protection against dust and debris, while the EN61010-1 CAT III 300 V safety standard ensures user protection when working on electrical systems. The device also complies with EMC standards EN61326-1 and EN61326-2, minimizing electromagnetic interference in sensitive environments. These specifications collectively make the Megger MFL205 a robust and dependable tool for professional use.
