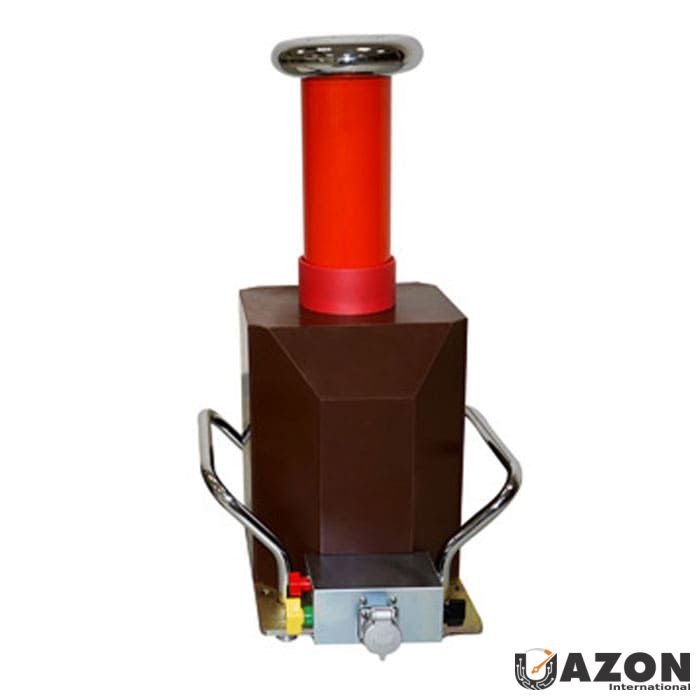

Megger DC AND AC HV TEST SYSTEM HPG Series

Megger DC AND AC HV TEST SYSTEM HPG50-H, HPG70-H, HPG80-H and HPG110-H

Modern electrical infrastructure demands rigorous validation to ensure operational safety and longevity. The Megger HPG series, featuring the HPG50-H, HPG70-H, HPG80-H, and HPG110-H, represents a robust range of high voltage test systems engineered for both AC and DC applications. Designed to cater to the precise demands of testing low-capacity test objects across industrial settings, these units provide a reliable solution for electrical component evaluation. For procurement teams and field engineers seeking high-performance equipment, finding the best price for these Megger high voltage test systems is essential for maintaining competitive operational standards.

Technical Features and Design Architecture of the Megger HPG Series

The design philosophy of the Megger HPG series prioritizes safety, flexibility, and durability. Understanding these technical features is crucial for engineers looking to invest in equipment that offers long-term value and operational efficiency. These systems are built to withstand rigorous use while delivering precise results in both laboratory and field environments.

• Separate Control and HV Units: Each system features separated control and high voltage units, which optimizes safety and flexibility during testing procedures. This separation allows technicians to operate the system remotely, minimizing risk during high voltage tests by keeping the operator at a safe distance from the high voltage source.
• Continuously Adjustable Voltage: The voltage on these systems can be adjusted continuously, allowing for precise control over testing conditions. This granular control is crucial for sensitive and critical testing applications where specific voltage thresholds must be met without overshooting.
• Powerful Performance Capabilities: The systems are capable of continuous operation at 1.2 kVA and can handle up to 3 kVA in short bursts of 60 minutes. This power handling capability accommodates a wide range of operational demands and complex test scenarios.
• Compact and Maintenance-Free Build: Incorporating cast-resin high voltage transformers, these test systems are designed for durability and require minimal maintenance. This construction is ideal for rigorous use in varied environmental conditions, ensuring reliability over the equipment's lifecycle.
• Versatile DC Testing Capability: Each unit can be optionally upgraded for DC testing by attaching a rectifier to the high voltage transformer. This enhancement significantly expands the utility of the system, making it a versatile investment for diverse testing requirements.

Model-Specific Capabilities and Application Suitability

Selecting the correct model depends on the specific voltage requirements of your application. Each model in the Megger HPG series offers distinct capabilities tailored to different testing environments, from routine maintenance to high-demand system evaluations. Below is a breakdown of the specific capabilities for each unit.

• HPG50-H: This model offers AC testing up to 35 kVRMS and DC testing capabilities up to 50 kV. It is suitable for routine testing of electrical infrastructure components like switchgears and transformers, providing a reliable entry point for standard maintenance protocols.
• HPG70-H: While specific details were not provided in the source text, this model is positioned as a mid-range option. It likely fits between the HPG50-H and HPG80-H in terms of capability, offering a balanced solution for intermediate voltage testing needs.
• HPG80-H: Capable of performing AC testing up to 58 kVRMS and DC testing up to 70/80 kV, this unit is ideal for more demanding testing environments. It is well-suited for medium voltage plants and systems that require higher voltage thresholds for accurate evaluation.
• HPG110-H: The most powerful in the range, this model is capable of AC testing up to 78 kVRMS and DC testing up to 110 kV. It is designed for high capacity and critical systems requiring rigorous testing protocols, making it the premier choice for complex industrial applications.

Operational Flexibility and Integrated Safety Features

Operational efficiency and safety are paramount in high voltage testing. The Megger HPG series integrates advanced control features that allow for precise management of test parameters. When you buy the Megger HPG series, you are investing in a system designed to protect both the operator and the equipment under test.
