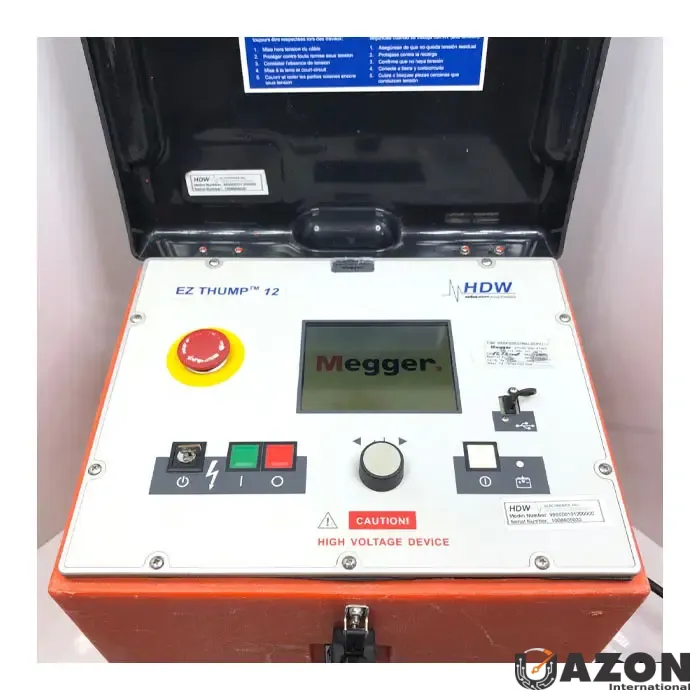

Why the Megger EZ Thump 12 Is the Industry Standard for Portable Cable Fault Location
Underground cable faults are inevitable in any power distribution network, but the speed and accuracy of the response define the efficiency of the utility service. The Megger EZ Thump 12 is a portable cable fault location system engineered specifically to minimize downtime and accelerate fault diagnosis in power cables. Designed for utility companies, industrial maintenance teams, and service providers, this system addresses the critical need for rapid deployment and reliable testing in the field. Its reputation rests on a combination of ease of use, robust reliability, and a compact design that makes it an ideal choice for demanding field operations. When system outages occur, the ability to deploy a lightweight, self-contained unit immediately translates directly to reduced customer impact and lower operational costs.
Weighing less than 33 kg, the EZ Thump series stands out as one of the most portable fault location systems available on the market today. This portability is not achieved at the expense of performance; rather, it enhances the "Easy Go" test system philosophy that Megger has implemented. This approach ensures that the device is easy to operate, automatically interprets results, and requires minimal training to locate faults effectively. For technicians managing extensive underground cable networks, the ability to carry a complete diagnostic solution to the site without heavy lifting equipment is a significant operational advantage. This combination of low weight and high capability makes the Megger EZ Thump 12 a preferred tool for quick response fault-finding strategies.
Technical Features and Field Applications of the Megger EZ Thump 12
The technical architecture of the Megger EZ Thump 12 is built around comprehensive fault locating capabilities that cover the entire diagnostic spectrum. From initial pre-location to final pinpointing, the system integrates advanced technologies into a single unit. On-board instrumentation includes a Time Domain Reflectometer (TDR) with a substantial 7.6 km range, allowing for non-destructive fault pre-location over long cable runs. Complementing this is Arc Reflection capabilities at 4 kV or 12 kV, which are essential for isolating high-resistance faults that are often invisible to standard ohmmeters. These features work in concert to provide a clear picture of the fault location before any high-energy surge is applied, saving time and preserving cable integrity.
For the critical phase of pinpointing, the EZ Thump 12 delivers a surge energy of 500 J, which is sufficient to locate faults in most medium-voltage cables without causing further damage. The unit also includes DC testing capabilities for breakdown detection and insulation resistance measurement, providing a complete electrical profile of the cable health. Operation is flexible, drawing power from either an AC line or an internal battery, which is field-replaceable to ensure continuous uptime. The rugged design allows the unit to fit easily in the boot of a car, making it an indispensable tool for teams that require mobility and speed. For those looking to optimize their maintenance budget, the Megger EZ Thump 12 price offers exceptional value given its comprehensive feature set.
Field-Ready Design and Safety Specifications
Reliability in the field is defined by both durability and safety, and the Megger EZ Thump 12 excels in both areas. The unit is designed as a compact, lightweight, all-in-one rugged portable cable fault locating system that can withstand harsh environmental conditions. It operates on both battery and AC line power, ensuring that a lack of mains access does not halt diagnostics. The inclusion of a field-replaceable battery means that long-term field campaigns are feasible without returning to a central depot for recharging. Furthermore, the HiBrite color display ensures excellent outdoor visibility, allowing technicians to read results clearly even in direct sunlight.
Safety is paramount when dealing with high-voltage surge discharge, and the EZ Thump 12 incorporates the F-OHM safety feature to ensure safe grounding during operations. This system actively monitors the grounding loop impedance, preventing the unit from discharging if the ground connection is inadequate. Additionally, the automatic cable end detection and fault location capabilities streamline the setup process, reducing the potential for operator error. The single-stage capacitor surge discharge is calibrated at 500 J at 12 kV, providing a controlled burst of energy ideal for flashover faults. When considering the best price for Megger EZ Thump 12, these safety features add significant value by reducing risk and insurance liabilities.
