MEGGER EVX100 MFT-X1 AUTO EVSE INTERFACE Review

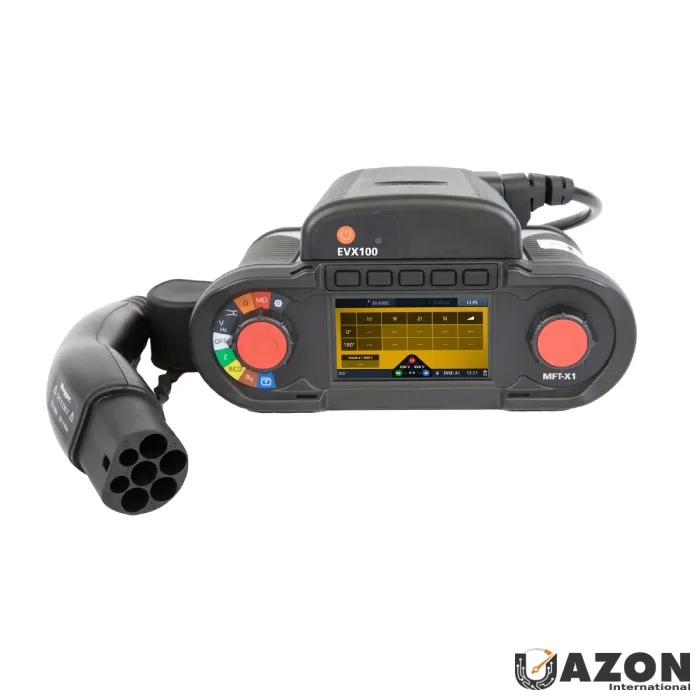

The MEGGER EVX100 is a fully integrated EV charger interface designed for seamless operation with the MFT-X1 multifunction tester. This accessory provides automated testing of Mode 3 single-phase and three-phase AC electric vehicle charging stations (EVSE). It serves as an essential tool for electrical professionals who need to verify the safety and functionality of modern EV infrastructure.
As an authorized distributor in the region, we deliver genuine EVX100 units at competitive prices with full warranty and expert support. The EVX100 simplifies EV charger verification and service by eliminating the need for manual adaptors. Once connected, the MFT-X1 recognizes the EVX100 automatically and provides all required test options through its intuitive interface.
With features like automated CP/PP state control, protective device testing (IEC61851, IEC62955), RCD/RDC reset simulation, and an integrated Type 2 charging plug, the EVX100 ensures fast and safe EV charger commissioning. Its IP54-rated housing, dual test buttons, and Li-ion battery with USB-C charging make it reliable for both indoor and outdoor use in harsh UAE environments.
MEGGER EVX100 Key Features
Before we look into the specifications, here are the highlights that make the EVX100 the perfect EVSE testing solution. These features are engineered to streamline the workflow of field engineers and reduce testing time significantly.
- Fully integrated with MFT-X1 multifunction tester
- Automated Mode 3 EVSE testing (single and three-phase)
- CP and PP state control with full code reporting (A, B, C, D plus sub-states)
- Automatic EV charger reset after RCD or RDC trip
- Identifies PE (Protective Earth) issues via MFT-X1 test buttons
- Type 2 plug included (IEC 62196-1 compliant), Type 1 adaptor optional
- Meets IEC61851 and IEC62955 testing requirements
- CAT II 250 V safety rating
- Rugged IP54 housing for outdoor use
- Powered by Li-ion rechargeable battery (USB-C charging)
- Supplied with carry case, test leads, and guides
Technical Features and Field Applications of the MEGGER EVX100
The MEGGER EVX100 is engineered to address the specific challenges of EVSE testing in the field. Its automated capabilities allow technicians to perform comprehensive checks without cumbersome manual setups. By integrating directly with the MFT-X1, it transforms a standard multifunction tester into a dedicated EV charger commissioning tool.
This section details the technical specifications and practical applications of the EVX100, demonstrating why it is the preferred choice for professionals seeking reliability and efficiency. Understanding these applications helps in selecting the right equipment for complex installation and maintenance tasks.
- Installation verification of single-phase and three-phase Mode 3 EVSE chargers
- Routine servicing and commissioning of EV chargers in UAE and Dubai projects
- Testing IEC61851 and IEC62955 protective devices automatically
- Fast diagnosis of PE faults, CP/PP state errors, and reset operations
- Field engineers working in residential, commercial, and industrial EV charger deployments
Contents of the MEGGER EVX100 Box
When you purchase the MEGGER EVX100, you receive a complete kit ready for immediate use. The package includes all necessary components to connect, test, and transport the unit safely. This comprehensive inclusion ensures that you can start testing right out of the box without additional purchases.
Below is a list of the items included in the standard package. Having these accessories on hand ensures that field operations run smoothly and that the equipment remains protected during transit.
- MEGGER EVX100 interface unit
- Type 2 plug (fixed)
- Type C charging lead
- Li-ion rechargeable battery (built-in)
- Test leads
- Carry case
- Quick start guide and full user manual (online)
Optional: Type 1 to Type 2 adaptor
