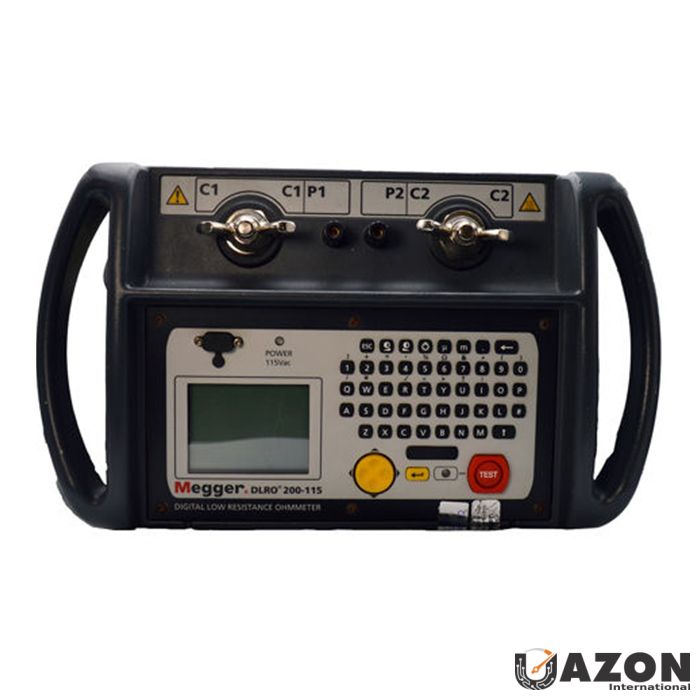

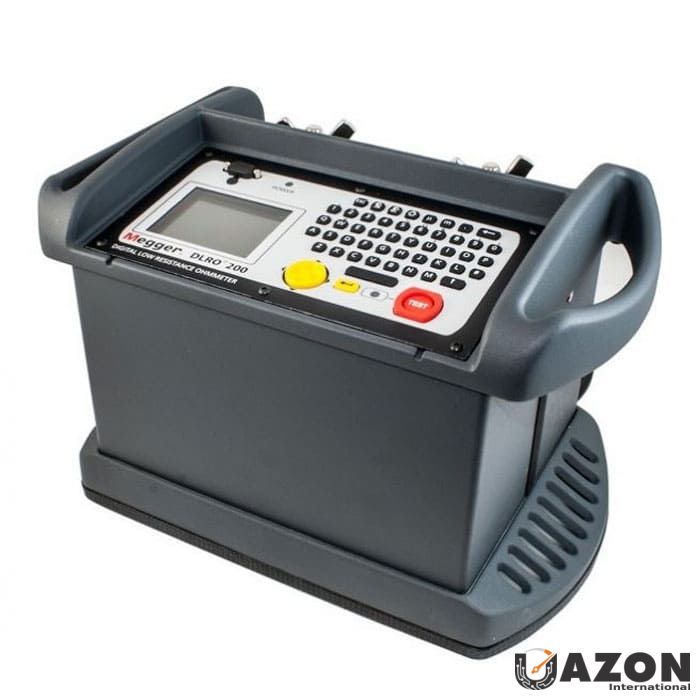

Megger DLRO200 Micro-ohmeter

Buy Megger DLRO200 Micro-ohmmeter: High-Precision Low Resistance Testing

The Megger DLRO200 Micro-Ohmmeter represents a pinnacle of engineering in low-resistance measurement, offering unparalleled accuracy for critical electrical maintenance. When you Buy Megger DLRO200, you are investing in a device designed to deliver high-precision resistance measurements across diverse electrical systems. Weighing less than 15 kg, this compact instrument is perfectly suited for demanding environments, including field applications, production floors, and workshop benches. Its exceptional portability is a key feature, facilitating easy transportation and use in various settings without compromising the robust performance required for industrial testing.

Capable of generating test currents ranging from 10 A to 200 A DC, the DLRO200 is a versatile tool that automatically adapts to the specific requirements of each test, subject to load resistance and supply voltage. This adaptability makes it ideal for a wide array of applications, particularly in testing connections such as circuit breaker contacts, switch contacts, and busbar joints where high current is necessary to detect subtle faults. Professionals seeking the Megger DLRO200 Price will find that this level of versatility offers significant value, eliminating the need for multiple specialized instruments. By combining high output power with intelligent control, the DLRO200 ensures that every measurement is both safe and efficient.

Technical Features and Field Applications of the Megger DLRO200

The DLRO200 integrates advanced technology to solve common testing challenges faced by engineers and technicians. One of the standout technological features is its four-terminal measurement technique, a critical component for achieving high accuracy. This advanced method significantly enhances measurement integrity by eliminating the potential error caused by the resistance of the test leads themselves. When you Buy Megger DLRO200, you gain access to a remarkable resolution of 0.1 µΩ, ensuring precise and reliable readings across a range from 0.1 µΩ to 1 Ω at high currents. The following specifications highlight the operational capabilities that make this device a market leader.

• Power Supply and Load Capacity: The unit operates on a mains power supply ranging from 100 to 265 V at 50/60 Hz. It is engineered to handle specific load resistances, maintaining full output with a load less than 19 mΩ when the supply exceeds 207 V rms, or 11 mΩ at 115 V rms, including current leads. This ensures stable performance even with varying input voltages.
• Versatile Test Modes: The DLRO200 offers Manual, Auto, and Continuous test modes. These modes provide flexibility for different testing scenarios, from one-off diagnostic checks to repetitive production line testing, allowing users to optimize workflow efficiency.
• Wide Measurement Range: With a range spanning from 0.1 μΩ to 999.9 mΩ, the device covers a broad spectrum of resistance values. This range is subject to supply voltage and the specific leads used, ensuring that users have the flexibility to test everything from low-resistance contacts to longer cable runs.
• Data Management and Connectivity: The inclusion of an RS-232 port facilitates straightforward data storage and communication. This allows for the easy transfer of test results to external devices for analysis, reporting, and compliance documentation.
• High Output Current: The unit delivers a maximum DC output current of 200 A. This high current capability is essential for overcoming contact resistance in large connections, providing the sensitivity needed to detect poor joints and corrosion.
• Safety and Compliance: The DLRO200 is designed with rigorous safety standards in mind, adhering to IEC61010-1. This compliance ensures operator protection during high-current testing, making it a reliable choice for safety-critical environments.

Portability and Performance for Demanding Environments

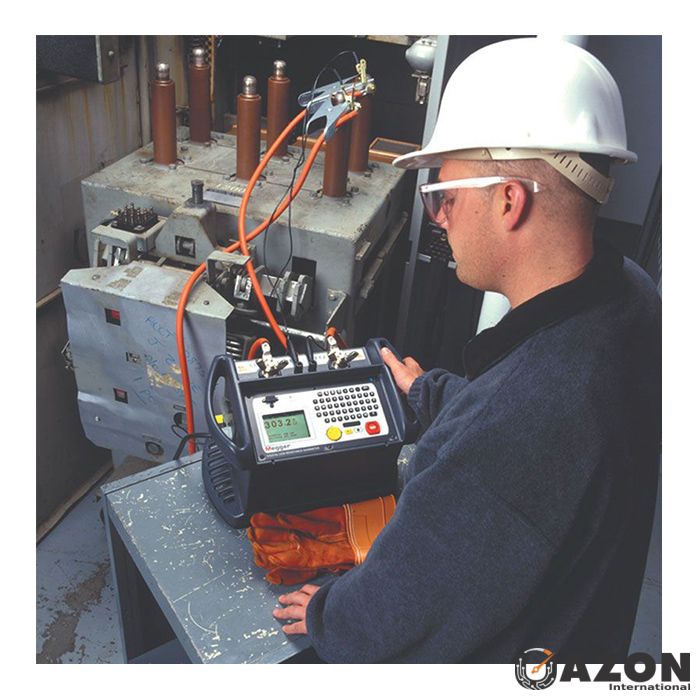

The design of the Megger DLRO200 emphasizes mobility without sacrificing power, making it an essential tool for field engineers who require lab-grade accuracy on-site. Its compact form factor and lightweight construction allow it to be easily carried to remote substations or tight industrial spaces. Despite its size, the device delivers the full 200 A test current needed to effectively measure low-resistance connections in circuit breakers and busbars. This combination of portability and high output ensures that maintenance teams can perform thorough inspections without returning to a central workshop.
