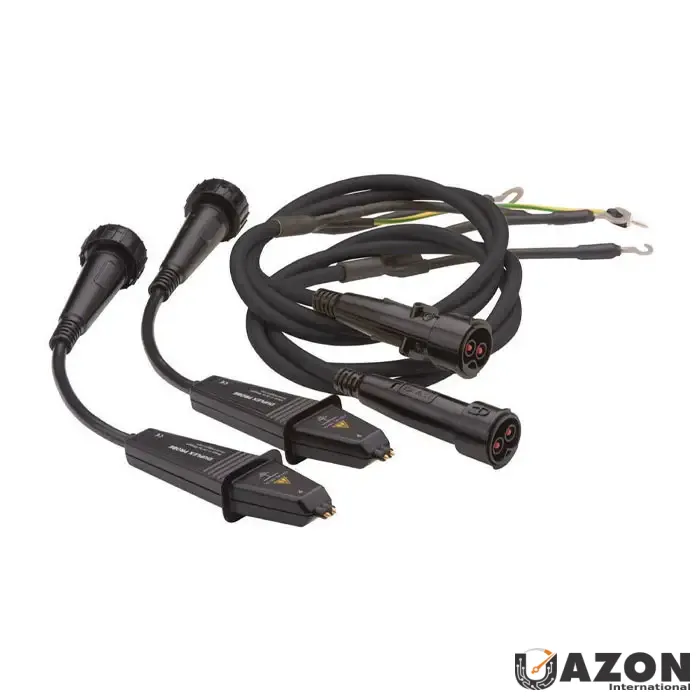

Megger DH4-C Two Wire, Four Terminal Duplex Probe Lead Set
When working with low resistance measurements, the quality of your connection is just as critical as the quality of your instrument. The Megger DH4-C is a specialized duplex connect handspike lead set engineered to maximize the performance of high-precision low resistance ohmmeters. For professionals working in substations, industrial facilities, or manufacturing environments, achieving accurate low resistance readings requires more than just a robust meter; it requires accessories that minimize contact resistance and eliminate measurement errors. This lead set is designed specifically to bridge that gap, providing a reliable physical interface between your test instrument and the components under evaluation.
Whether you are conducting routine maintenance on switchgear, verifying the integrity of busbar joints, or performing quality control on electrical assemblies, the Megger DH4-C offers the durability and precision required for these demanding applications. By pairing this lead set with industry-standard devices like the DLRO10, DLRO10X, and DLRO10HD, technicians can ensure that every reading reflects the true resistance of the device under test, free from the interference of poor connections or inadequate probe tips.
Technical Features and Field Applications of the Megger DH4-C
The Megger DH4-C is not merely a set of wires; it is a comprehensive solution designed for the rigorous demands of fieldwork. At the core of its design is a four-terminal (Kelvin) configuration, which is essential for accurate low resistance testing. This configuration separates the current-carrying circuit from the voltage-sensing circuit, effectively eliminating the resistance of the test leads from the measurement. When you Buy Megger DH4-C, you are investing in a system that ensures the reading displayed on your ohmmeter is solely a representation of the component under test.
Understanding the technical specifications of this lead set helps clarify why it is the Best Price option for professional-grade testing. The set includes two 1.5-meter leads, providing ample length for maneuvering around large equipment without straining the connections. The inclusion of four-terminal duplex probes ensures that the measurement loop is fully isolated, a requirement for detecting minute resistance values. One of the probes is specifically fitted with indicator lights, a feature designed to simplify the testing process by providing visual confirmation of the circuit status. This reduces the likelihood of user error in low-light environments or when working in confined spaces.
The physical construction of the handspikes is a testament to Megger’s commitment to field durability. The probes feature hardened needle points, which are necessary for penetrating surface oxidation, paint, or corrosion that can otherwise insulate the test point and skew results. To further enhance electrical contact, these needle points are gold-plated. Gold plating is chemically inert and highly conductive, ensuring that the connection between the probe and the test surface offers minimal resistance. This is particularly important when measuring in the micro-ohm range, where even a few milliohms of contact resistance can lead to significant measurement errors.
Force application is another critical factor in low resistance testing. The Megger DH4-C utilizes stainless steel springs that provide a consistent force of 1.3 kg. This specific pressure is calibrated to ensure that the needle points bite into the contact surface effectively without causing mechanical damage to the component. The consistent pressure also ensures repeatable results across multiple measurements, a key requirement for longitudinal monitoring of equipment health.
Operational Efficiency and Connection Mechanism
Efficiency in the field is defined by how quickly and securely a technician can set up a test. The Megger DH4-C features a simple push-and-twist mechanism for quick termination changes. This design allows for rapid swapping of probes without the need for additional tools or complex manipulation. In high-volume testing environments, such as during commissioning of new installations, this time-saving feature translates directly into increased productivity.
The duplex connect design further enhances usability by organizing the leads in a manageable format, reducing tangling and confusion during setup. When you are looking at the Megger DH4-C Price, consider the value of this ergonomic design. It is built to withstand the rigors of daily transport and use, with robust insulation and strain relief at critical points to prevent wire fatigue. The combination of the push-and-twist termination and the durable lead construction means that this set is not only easy to use but also built to last, reducing the total cost of ownership over time.
For technicians using the DLRO10, DLRO10X, or DLRO10HD, the interface is seamless. The lead set is engineered to connect directly to these instruments, ensuring that the full capabilities of the ohmmeter are utilized.
