Buy Megger DET4TC2 for Advanced Earth Resistance Testing
When your application demands reliable ground resistance measurements in challenging environments, the Megger DET4TC2 stands out as a premier instrument for electrical professionals. This compact, lightweight device is engineered to perform comprehensive 2-, 3-, and 4-point testing, making it an essential tool for verifying the safety and performance of earthing systems. Whether you are working on telecommunications towers, substations, or residential grounding grids, this tester delivers the versatility needed to handle various soil conditions and testing requirements.
For those looking to acquire this high-performance device, finding the best price on the Megger DET4TC2 is a priority for budget-conscious engineers without compromising on quality. This instrument simplifies complex testing procedures through its intuitive rotary dial interface and variable frequency capabilities. By allowing users to switch seamlessly between test types and frequencies, the DET4TC2 ensures that measurements are accurate and repeatable, providing peace of mind in critical safety applications.
Technical Features and Field Applications of the Megger DET4TC2

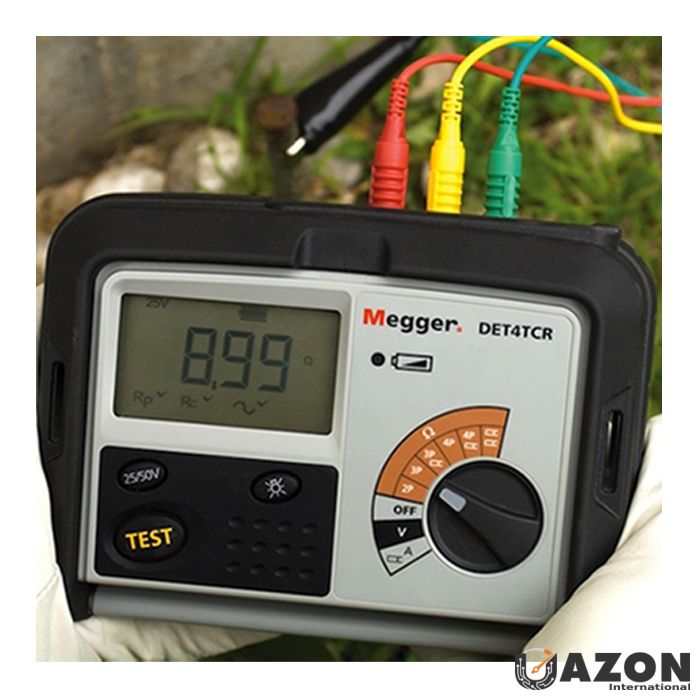

The Megger DET4TC2 is designed with the field technician in mind, offering a robust set of features that adapt to real-world testing scenarios. One of its core capabilities is the attachment rod technique, which can be utilized with an optional clamp, alongside stateless testing and leakage current measurements. The device operates at variable frequencies—94, 105, 111, and 128 Hz—allowing users to select the optimal setting to overcome electrical noise and ensure signal integrity in active electrical environments.
- Variable frequency testing at 94, 105, 111, and 128 Hz to minimize interference.
- Comprehensive test modes including 2-, 3-, and 4-point testing for varied soil resistivity conditions.
- Integrated noise rejection capabilities to maintain measurement accuracy in high-noise areas.

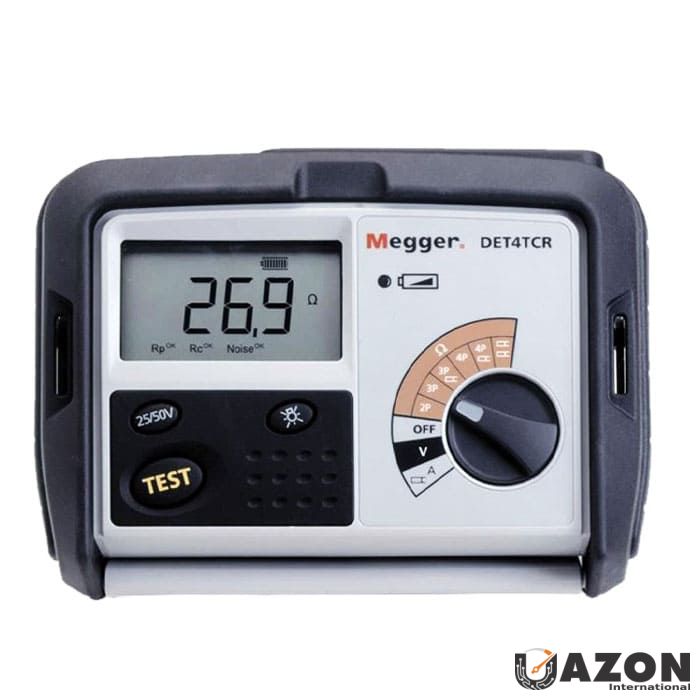

- LCD screen with backlight for clear visibility in low-light conditions.
- Rotary dial interface for effortless switching between test configurations.
Stakeless and ART Testing Capabilities with Optional Clamps
For applications where driving test stakes into the ground is impractical or impossible, the Megger DET4TC2 offers advanced stakeless measurement options. By utilizing the ICLAMP and VCLAMP accessories, users can perform tests without direct physical connection to the earth, making it ideal for urban environments or sites with concrete paving. The Auxiliary Electrode Resistance Test (ART) mode, enabled by the ICLAMP, further allows for electrode testing without disconnection, streamlining the workflow for maintenance crews.
- No disconnect testing (ART) utilizing the optional ICLAMP accessory.
- True stakeless measurement capabilities using both ICLAMP and VCLAMP attachments.
- Leakage current and ground noise voltage measurements for comprehensive system analysis.
- Flexible output voltages of 25V or 50V to suit specific grounding requirements.
Detailed Instrument Output and Resistance Ranges
Understanding the electrical output of your earth resistance tester is vital for ensuring compatibility with site specifications. The DET4TC2 provides versatile voltage and current outputs, selectable via the front panel to match the sensitivity of the connected electrode system. With a resistance range extending from 0.01 Ω to 200 kΩ, this instrument covers a vast spectrum of grounding scenarios, from low-resistance substation grids to high-resistance rocky soil conditions.
The device also features a ground current measurement range of 0.5 mA to 19.9 A when used with a clamp, providing additional insight into leakage paths. When determining the Megger DET4TC2 price, it is important to consider this extensive measurement capability, which eliminates the need for multiple specialized instruments. The following specifications outline the instrument’s output and resistance performance:
- Voltage Output: ±25 V or ±50 V at 94 Hz, 105 Hz, 111 Hz, and 128 Hz.
- Current Output: selectable 4.5 mA, 0.45 mA, or 0.045 mA for precise testing.
- Ground Current Range: 0.5 mA to 19.9 A with clamp attachment.
- Resistance Range (2, 3, 4 pole): 0.01 Ω to 200 kΩ.
- Stakeless Resistance Range: 0.01
