Description
About this model

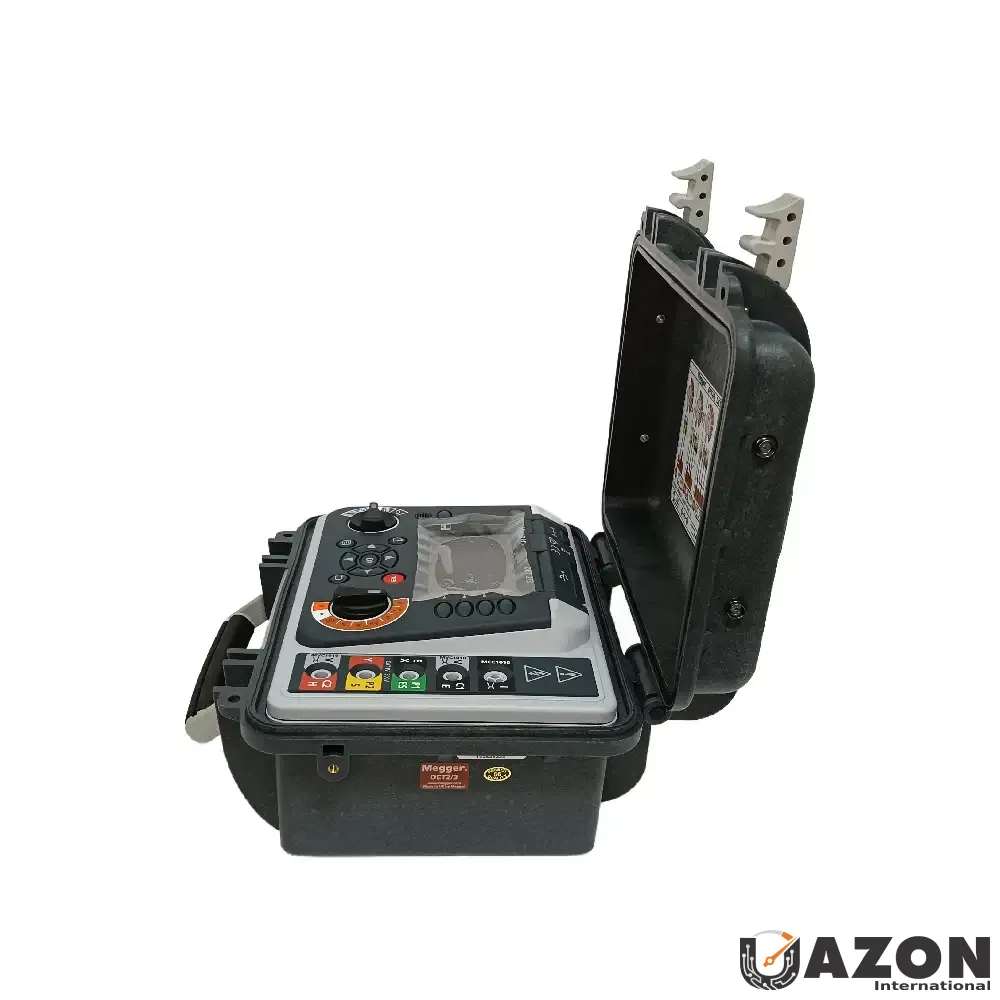

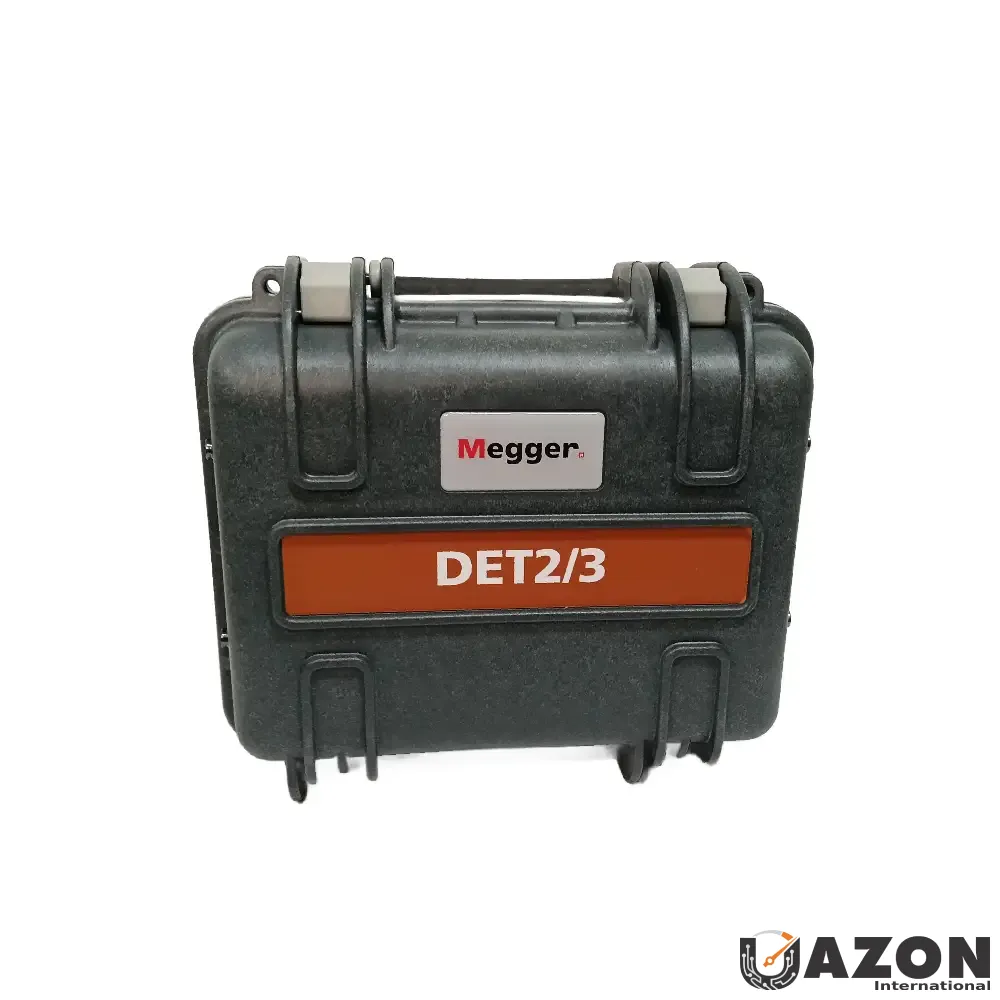

The Megger DET2/3 represents advanced engineering in earth electrode resistance and soil resistivity measurement technology. Designed for complex grounding systems and challenging test environments, this high-resolution earth tester delivers exceptional accuracy with microprocessor-controlled automation that eliminates measurement errors caused by electrical noise and interference. Whether conducting lightning protection verification, telecommunications earth system testing, or railway installation grounding assessment, the DET2/3 provides professional-grade measurement capabilities essential for compliance with BS 7430, BS-EN-62305, BS-EN-50122-1, and IEEE Standard 81.
High-Resolution Ground Resistance Measurement Technology
The exceptional 1 milliohm resolution of the DET2/3 earth resistance tester makes it ideally suited for testing large ground electrode grids, telecommunications facilities, and critical infrastructure where precise low-resistance measurements determine system safety and performance. This precision enables detection of subtle changes in earth system integrity during periodic verification testing and identifies developing problems before they compromise electrical safety or equipment protection effectiveness.
Intelligent Automatic Frequency Selection for Earth Testing
Electrical noise from adjacent power systems, traction supplies, and industrial equipment frequently interferes with conventional earth testing methods. The DET2/3 addresses this challenge through automatic frequency scanning that identifies the cleanest test frequency within a wide band adjustable in 0.5 Hz increments. The microprocessor system then executes the resistance measurement using optimal test parameters, storing frequency, current level, and filter settings for subsequent tests at the same location. This intelligent approach ensures reliable results even in the most electrically contaminated test environments.
Versatile Test Modes for Ground Electrode Verification
Professional grounding assessment demands flexibility. The DET2/3 ground tester supports multiple test methodologies including 2-pole, 3-pole, 4-pole, ART selective testing, and stakeless clamp methods. This versatility accommodates various installation configurations from simple earth rods to complex multi-electrode grids and allows testing where conventional stake placement proves impossible due to paved surfaces or restricted access. The selective ART mode enables measurement of individual earth electrodes within interconnected systems without disconnection.
Soil Resistivity Testing for Grounding System Design
Beyond resistance measurement, the DET2/3 calculates soil resistivity using both Wenner and Schlumberger methods, providing essential data for grounding system engineering and design optimization. The instrument automatically computes resistivity values from measured resistance and probe spacing, eliminating manual calculation errors and accelerating field survey work. This capability proves invaluable during preliminary site assessment for new installations and when investigating grounding problems in existing facilities.
Shop Megger DET2/3 EARTH TESTER for Complex Grounding Projects

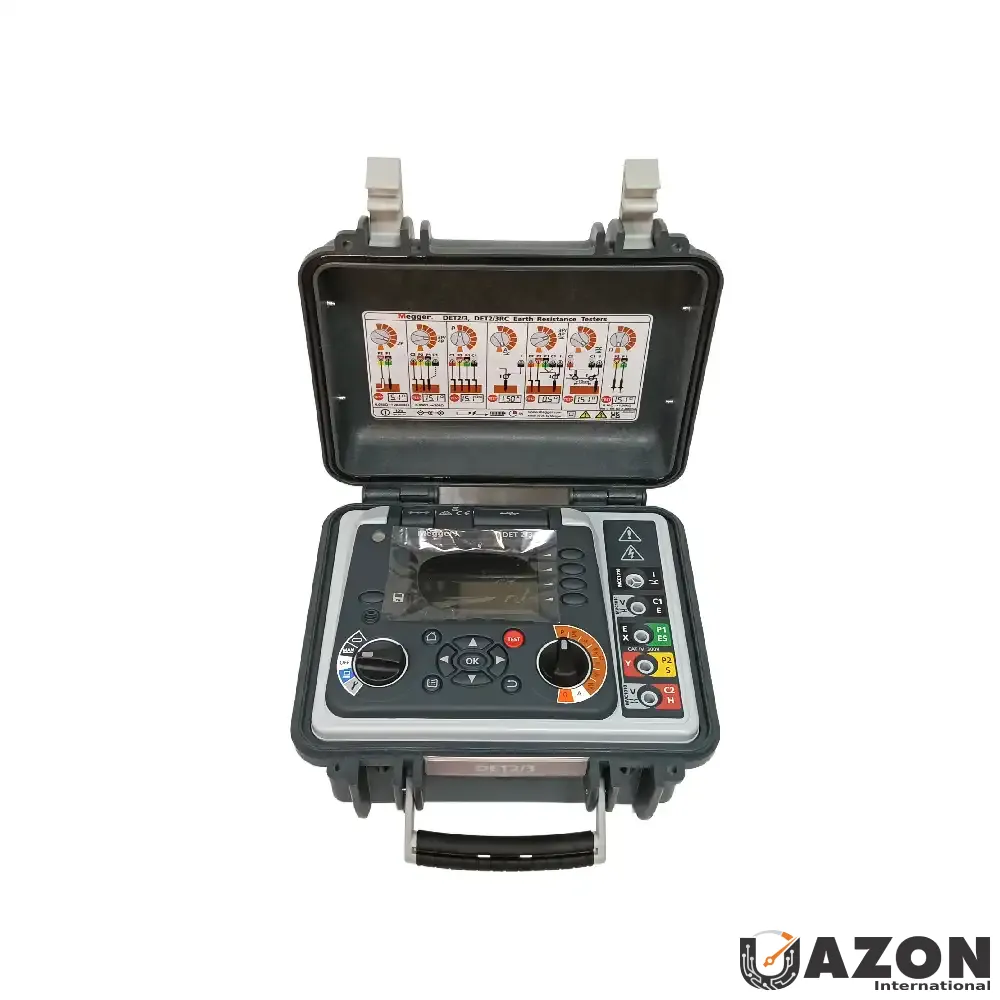

The large color display presents measurement data in both numeric and graphical formats, with real-time trace visualization showing noise levels and measurement stability. This diagnostic trace function provides expert earth test engineers with powerful troubleshooting insight, revealing interference sources and confirming measurement validity. The display remains clearly visible in bright outdoor conditions typical of field testing operations, while comprehensive error detection alerts operators to connection problems or adverse test conditions.
All-Day Battery Performance for Field Service Operations
Powered by high-capacity lithium-ion rechargeable battery technology, the DET2/3 earth electrode tester operates up to 10 hours on a single charge, supporting extended field testing campaigns without interruption. Fast recharge capability reaches 50% capacity rapidly, minimizing downtime between test assignments. Optional external DC power input provides continuous operation during laboratory testing or when vehicle power supplies are available. The robust IP65 protection rating ensures reliable performance in harsh weather conditions and dusty industrial environments.
Applications for Megger DET2/3 Ground Testing Instrument
- Substation and transmission tower earth electrode resistance verification per IEEE Standard 81
- Lightning protection system grounding compliance testing to BS-EN-62305 standards
- Telecommunications facility earth system measurement and troubleshooting
- Railway installation grounding verification per BS-EN-50122-1 requirements
- Soil resistivity surveys for grounding system design and engineering projects
- Industrial plant protective earth system periodic inspection and testing
- Data center and critical infrastructure ground grid resistance measurement
- Wind turbine foundation and tower earthing system verification
- Petrochemical facility hazardous area grounding assessment and certification
- Solar photovoltaic installation array and inverter grounding testing
- Building electrical installation main earth electrode resistance verification
- Medical facility isolated ground system integrity testing and documentation
Comprehensive Data Management and Documentation
Professional grounding projects require thorough documentation. The DET2/3 stores up to 500 complete test records in internal non-volatile memory, capturing all measurement parameters, test conditions, and results. Data downloads directly to USB flash drives for immediate transfer or connects to Windows PC running PowerDB software for advanced analysis and report generation. Results export as text files compatible with spreadsheet applications and compliance documentation systems, streamlining project reporting and regulatory submission requirements.
Adjustable Test Parameters for Challenging Environments
Test current levels and filtering options adjust to overcome adverse measurement conditions encountered in active electrical installations. The DET2/3 automatically compensates for noise and interference while providing secondary displays showing noise levels, voltage, and current during testing. This transparency allows expert assessment of result validity and identifies when environmental conditions exceed acceptable limits for accurate measurement. The instrument's diagnostic capabilities distinguish it from basic earth testers, providing professional engineers with comprehensive test confidence.
